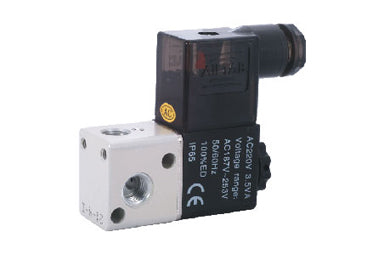

Airtac 3V1-06: Solenoid Air Valve - 3V106E
Direct acting 3 way solenoid air valve 1/8 PT port AC 24V terminal entry 3V1 seriesSolenoid Air Valve 3V106E -... Read more
SKU: 3V106E
$16.94
- Image may not be representative of actual product.
3V1 Series Solenoid Valve — With Manifold & Accessories
Product Features
- Direct-acting structure, fast response.
- No lubrication required.
- Compact, suitable for manifold use.
- Manual override for easy debugging.
- Low friction, long service life.
Specifications
| Item | 3V1-M5 | 3V1-06 |
|---|---|---|
| Working Medium | Filtered air ≥40 μm | |
| Actuation Type | Direct acting | |
| Port Size | M5 | PT1/8 |
| Effective Orifice | φ1.2 mm | |
| Operating Pressure | 0–0.8 MPa | |
| Max Pressure | 1.2 MPa | |
| Temperature Range | –20°C to 70°C | |
| Body Material | Aluminum alloy | |
Electrical Specifications
| Item | AC220V | AC110V | AC24V | DC24V | DC12V |
|---|---|---|---|---|---|
| Rated Voltage | AC220V | AC110V | AC24V | DC24V | DC12V |
| Voltage Tolerance | AC: ±15%, DC: ±10% | ||||
| Power Consumption | 4.5VA | 4.5VA | 5.0VA | 3.0W | 2.5W |
| Protection Grade | IP65 (DIN40050) | ||||
| Insulation Class | Class B | ||||
| Wiring Type | DIN plug or lead wire | ||||
| Excitation Time | ≤0.05 s | ||||
| Max. Frequency | 10 Hz | ||||
Product Ordering Code
① Standard Type
Example: 3V106A
| No. | Code | Description |
|---|---|---|
| ① | 3V | 3-port 2-position solenoid valve |
| ② | 1 | Series 1 |
| ③ | 06 / M5 | Port: 06 = PT1/8, M5 = M5 thread |
| ④ | A / B / C / E / F | A: AC220V, B: DC24V, C: AC110V, E: AC24V, F: DC12V |
| ⑤ | (blank) / I | (blank): DIN plug I: Lead wire (0.5 m) |
② Manifold Type (for Series Connection)
Example: 3V 1 06 A □ 3F G
| No. | Code | Description |
|---|---|---|
| ⑥ | 1F / 2F / 3F … 20F | Connection quantity |
| ⑦ | (blank) / G / T | (blank): PT thread, G: G-thread, T: NPT thread |
Note: Lead wire version defaults to 0.5 m. Manifold types include accessories (see Accessories tab).
Flow Performance
- P→A: Up to 150 L/min @ 0.7 MPa
- A→R: Up to 40 L/min @ 0.7 MPa
Internal Construction
- Manual override
- Fixed plate
- Coil
- Iron core
- Rubber gasket
- Return spring
- Sliding spool
- Valve body
Manifold Accessories
| Code | Name | Included Parts | Qty |
|---|---|---|---|
| 3V1–P30 | Connector nut kit | F–3V1002B ×2, F–3V1003B ×2 | 4 |
| 3V1–P31 | Connector bolt kit | GOR20008N75 ×2, F–3V1004B ×2 | 4 |
| 3V1–P32 | Mounting bracket kit | F–3V1010B ×1, GSDA040082ZA ×2 | 3 |
