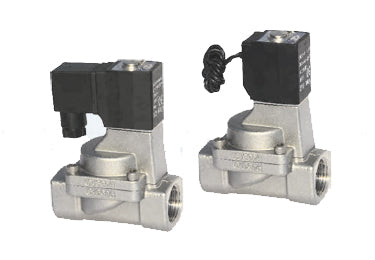

Airtac 2L series: two-way fluid solenoid valve - 2L32032BG

Photos are for reference only. Not all models have pictures.

Description

Specifications: 2L32032BG is an AirTAC 2L 2/2-way internally piloted, normally closed solenoid valve. 320 identifies the orifice-size branch; port code 32 selects G1 1/4; voltage code B selects DC24V; electrical entry is terminal connector. Thread suffix G selects G threads.

Product Catalogs and Comparison Guide

Download Airtac 2L Product Catalog (PDF)

Download Airtac 2LA Product Catalog (PDF)

Legacy coil and mounting-accessory selection: catalog page 205 (PDF)

New shared coil and mounting-accessory selection: 2KLA PDF page 5 (printed page 196)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

AirTAC 2L vs 2LA: Dimensions and Replacement Guide

Ordering and Delivery

Orders for 2L32032BG will be supplied as 2LA32032BG (2LA). This is our ordering and delivery policy. It does not mean that the old and new dimensions, mounting details or electrical data are identical. The technical information below describes 2L32032BG in the 2L catalog. For the supplied replacement, check the new catalog and comparison guide before installation.

Operation and Construction

This two-port, two-position valve is normally closed in its unenergized state. The valve uses internal pilot operation and requires the stated pressure differential to operate. The catalog specifies a SUS304 stainless-steel body, a PTFE (Teflon) standard seal, Class H coil insulation and IP65 coil protection. The compact construction is intended to make installation and removal convenient.

Model Code Explained

Code position Meaning for this model
Family 2L — 2/2-way internally piloted, normally closed
Size code 320 — 35 mm orifice
Port-size code 32 — G1 1/4
Voltage code B — DC24V
Electrical-entry code Omitted — terminal
Thread code G — G

Technical Specifications

Parameter Details
Actuation and normal state Internally piloted; normally closed
Suitable fluids Steam, high-temperature water and oil
Orifice diameter 35 mm
Flow coefficient Cv 23.00
Effective flow area 420 mm²
Operating pressure differential 0.05–1 MPa differential (inlet pressure minus outlet pressure).
Proof pressure 1.5 MPa
Body material SUS304 stainless steel
Standard seal PTFE (Teflon)
Viscosity limit Under 20 cSt in the general specification; see the separate low-oil-temperature footnote below.
Oil temperature −10 to 150°C; the −10°C entry carries a footnote stating 50 cSt or less.
Water temperature 1 to 150°C
Steam temperature Maximum 183°C; the minimum is not stated.
Ambient temperature −20 to 100°C
Catalog reference weight 2700 g; terminal version.

Operating differential is the pressure difference across the valve, not an independent flow rating. The general viscosity limit and the oil-temperature footnote are both retained from the source; they must be checked together for the intended fluid. Catalog weight is a reference value; the actual product prevails.

Electrical Specifications

Parameter Details
Rated voltage DC24V
Electrical entry terminal connector
Coil family listed for this valve CDA170
Supply tolerance ±10%
Supply frequency DC; frequency is not applicable.
Power consumption 12 W
Catalog temperature rise 40°C
Coil insulation Class H
Coil protection IP65

External and Mounting Dimensions

The following values are from the 2L terminal drawing, PDF page 4 (printed page 213). Each letter refers to its own dimension line. Values are in millimetres except threads; “—” means that the source does not list a value.

Drawing reference Current configuration
A — drawing length A 125 mm
AB — body span AB —
B — drawing width B 80 mm
BA — port-side span BA 52 mm
C — drawing height C 154.5 mm
D — drawing dimension D —
E — drawing dimension E —
EA — drawing dimension EA —
EB — drawing dimension EB —
EC — drawing dimension EC —
F — drawing dimension F —
P — fluid port thread P G1 1/4

The catalog states that the 320, 400 and 500 series have no mounting accessories. D, E, EA, EB, EC and F are therefore not listed for this branch.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Flow and Performance Charts

This configuration has a 35 mm orifice, Cv 23.00 and 420 mm² effective area.

The catalog provides a chart labelled “Fluid: Vacuum” showing P2, upstream-pressure curves P1, a minimum-working-pressure boundary, subsonic/sonic regions and a critical-pressure boundary. Its Q axis is labelled L/min (ANR), with separate scales for Ø15, Ø20, Ø25, Ø35, Ø40 and Ø50 mm. The P2 chart reaches 1.0 MPa. The water chart plots Q in L/min against ΔP=P1−P2 in MPa; marked scales run from 0.02 to 0.5 MPa and 30 to 900 L/min. Its large intermediate curve is labelled Ø32, while the 320 ordering/specification table states a Ø35 mm orifice; retain this source distinction when reading the graph.

Read the actual curve for the operating condition in the PDF. Axis maxima, plotted endpoints and other bore-size curves are not guaranteed flow ratings for this model; no interpolated flow claim is added here.

Internal Structure Reference

The catalog cross-section is labelled 2L150 (grommet). The numbered names below identify that reference drawing; they are not a packing list, individual ordering codes, quantities or a claim that every branch has an identical construction.

Drawing item Component name
1 Body
2 Fixed ring
3 Airtight gasket
4 O-ring
5 Wear ring
6 Gasket
7 Screw
8 Spring
9 Cover
10 Spring
11 Screw
12 Spring
13 Spring washer
14 Coil assembly
15 Washer
16 E clip
17 Movable core
18 Fixed plate
19 O-ring
20 Fixed cap
21 Airtight ring
22 Plug
23 Spring
24 Piston
25 Spacer
26 O-ring

Mounting Accessories and Selection

The catalog states that the 320, 400 and 500 series have no mounting accessories. Do not assume that a bracket shown for a smaller body is supplied or compatible.

Match the full voltage, electrical entry, thread and normal-state configuration. A valve series update does not establish that its old coil, connector or mounting bracket fits the new generation. Follow the flow direction shown on the body and check the exact catalog drawing before installation.

Series Ordering Options

The following are available choices within 2L. The current model uses only the configuration decoded above; H applies to the direct-acting 030/050 branches.

Ordering position Permitted catalog choices
Direct-acting branches 030: port codes 06 (1/8) or 08 (1/4); 050: 10 (3/8) or 15 (1/2). Pressure code omitted = standard; H = high pressure.
Internally piloted branches 150/15 = Ø15 mm, 1/2; 200/20 = Ø20 mm, 3/4; 250/25 = Ø25 mm, 1; 320/32 = Ø35 mm, 1 1/4; 400/40 = Ø40 mm, 1 1/2; 500/50 = Ø50 mm, 2.
Voltage codes A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V.
Electrical-entry choices Omitted = terminal; I = grommet / flying lead, length 0.5 m.
Thread choices Omitted = PT; G = G thread; T = NPT. These are alternatives, not simultaneous features.
Product form

Specifications: 2L32032BG is an AirTAC 2L 2/2-way internally piloted, normally closed solenoid valve. 320 identifies the orifice-size branch; port code... Read more

SKU: 2L32032BG

$321.68 Incl. VAT

    Guaranteed secure & safe checkout.

    Ach Direct DebitAmazon American Express Apple Pay BizumDiners ClubDiscoverGoogle Pay Mastercard MB WAY PayPalSatispayShop Pay USDC Visa

    Bank transfer also available. Payment options may vary by location and device.

    Shipping, returns & order help

    Free shipping on orders US$30+ under 2 kg

    Import duties & taxes included on all orders

    Download: 3D model selection.
    Shipping & delivery times

    In-stock items: processed and shipped within 1–3 business days. Custom-made items: G/NPT threads and non-standard specifications require 7–15 business days of factory production before shipping.

    Standard international delivery typically takes 7–13 business days after dispatch, depending on customs clearance and the local delivery network. Processing or production time is additional. Next-day and overnight delivery are not available.

    Most products ship from our manufacturing centers in Asia, then transfer to a local carrier after customs clearance.

    Read our shipping policy
    Shipping costs & import taxes

    Free shipping: orders of US$30 or more weighing under 2 kg. Import duties and taxes are included on all orders.

    If an overweight shipping surcharge applies after packing, we pause shipment and email you the amount for approval before dispatch. This is a transport charge, not an import tax. If you do not reply within 7 days, the order is canceled and fully refunded.

    Shipping charges and tax details
    Model selection & custom orders

    Please check the full model number, dimensions, thread type, stroke and voltage where applicable before ordering. If you are unsure, email airtacs@airtacs.com with the model number and required specifications.

    Custom-made products, including G/NPT thread specifications and custom-built parts, are non-returnable and non-refundable under our refund policy.

    Read the refund policy before ordering
    Tracking & delivery support

    Use the tracking link in your shipping confirmation email. For YunExpress shipments, enter your YT tracking number at Yuntrack to view the journey and local delivery details.

    Provide a complete physical delivery address and reachable contact details. P.O. boxes and virtual mail-forwarding addresses are not accepted.

    If delivery fails, contact the local carrier and email airtacs@airtacs.com with your order and tracking numbers. For failures caused by an incorrect/incomplete address or an unreachable recipient, return to the local warehouse typically takes 7–30 business days. Redelivery requires an additional shipping fee; cancellation after failed delivery is subject to deductions for original shipping and carrier return fees.

    Delivery issue policy
    Returns & product issues

    Eligible returns are accepted within 7 days of delivery. Items must be unused, uninstalled and in their original factory packaging. Contact airtacs@airtacs.com for a Return Authorization (RA) number before returning anything.

    Ordered the wrong model or changed your mind? You pay return shipping, original shipping is non-refundable, and a 50% restocking fee is deducted from the actual price paid for the returned product.

    Defective, damaged or incorrect item? We provide a replacement and cover return shipping; no restocking fee applies. Custom-made items are excluded from standard returns. These terms are subject to applicable law and do not limit your statutory rights.

    Read the full refund policy
    Bank transfers & invoices

    Bank transfer: Select bank transfer at checkout and submit your order. The bank account details and payment instructions will then be displayed.

    Invoices: Invoices are available only after an order is placed. We are a US-based company and provide a standard commercial invoice, not an EU VAT tax invoice. If your company requires an EU VAT invoice, please confirm your requirements with us before ordering.

    For payment or invoice questions, email airtacs@airtacs.com with your order number.

    Description

    Specifications: 2L32032BG is an AirTAC 2L 2/2-way internally piloted, normally closed solenoid valve. 320 identifies the orifice-size branch; port code 32 selects G1 1/4; voltage code B selects DC24V; electrical entry is terminal connector. Thread suffix G selects G threads.

    Product Catalogs and Comparison Guide

    Download Airtac 2L Product Catalog (PDF)

    Download Airtac 2LA Product Catalog (PDF)

    Legacy coil and mounting-accessory selection: catalog page 205 (PDF)

    New shared coil and mounting-accessory selection: 2KLA PDF page 5 (printed page 196)

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    AirTAC 2L vs 2LA: Dimensions and Replacement Guide

    Ordering and Delivery

    Orders for 2L32032BG will be supplied as 2LA32032BG (2LA). This is our ordering and delivery policy. It does not mean that the old and new dimensions, mounting details or electrical data are identical. The technical information below describes 2L32032BG in the 2L catalog. For the supplied replacement, check the new catalog and comparison guide before installation.

    Operation and Construction

    This two-port, two-position valve is normally closed in its unenergized state. The valve uses internal pilot operation and requires the stated pressure differential to operate. The catalog specifies a SUS304 stainless-steel body, a PTFE (Teflon) standard seal, Class H coil insulation and IP65 coil protection. The compact construction is intended to make installation and removal convenient.

    Model Code Explained

    Code position Meaning for this model
    Family 2L — 2/2-way internally piloted, normally closed
    Size code 320 — 35 mm orifice
    Port-size code 32 — G1 1/4
    Voltage code B — DC24V
    Electrical-entry code Omitted — terminal
    Thread code G — G

    Technical Specifications

    Parameter Details
    Actuation and normal state Internally piloted; normally closed
    Suitable fluids Steam, high-temperature water and oil
    Orifice diameter 35 mm
    Flow coefficient Cv 23.00
    Effective flow area 420 mm²
    Operating pressure differential 0.05–1 MPa differential (inlet pressure minus outlet pressure).
    Proof pressure 1.5 MPa
    Body material SUS304 stainless steel
    Standard seal PTFE (Teflon)
    Viscosity limit Under 20 cSt in the general specification; see the separate low-oil-temperature footnote below.
    Oil temperature −10 to 150°C; the −10°C entry carries a footnote stating 50 cSt or less.
    Water temperature 1 to 150°C
    Steam temperature Maximum 183°C; the minimum is not stated.
    Ambient temperature −20 to 100°C
    Catalog reference weight 2700 g; terminal version.

    Operating differential is the pressure difference across the valve, not an independent flow rating. The general viscosity limit and the oil-temperature footnote are both retained from the source; they must be checked together for the intended fluid. Catalog weight is a reference value; the actual product prevails.

    Electrical Specifications

    Parameter Details
    Rated voltage DC24V
    Electrical entry terminal connector
    Coil family listed for this valve CDA170
    Supply tolerance ±10%
    Supply frequency DC; frequency is not applicable.
    Power consumption 12 W
    Catalog temperature rise 40°C
    Coil insulation Class H
    Coil protection IP65

    External and Mounting Dimensions

    The following values are from the 2L terminal drawing, PDF page 4 (printed page 213). Each letter refers to its own dimension line. Values are in millimetres except threads; “—” means that the source does not list a value.

    Drawing reference Current configuration
    A — drawing length A 125 mm
    AB — body span AB —
    B — drawing width B 80 mm
    BA — port-side span BA 52 mm
    C — drawing height C 154.5 mm
    D — drawing dimension D —
    E — drawing dimension E —
    EA — drawing dimension EA —
    EB — drawing dimension EB —
    EC — drawing dimension EC —
    F — drawing dimension F —
    P — fluid port thread P G1 1/4

    The catalog states that the 320, 400 and 500 series have no mounting accessories. D, E, EA, EB, EC and F are therefore not listed for this branch.

    For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

    Flow and Performance Charts

    This configuration has a 35 mm orifice, Cv 23.00 and 420 mm² effective area.

    The catalog provides a chart labelled “Fluid: Vacuum” showing P2, upstream-pressure curves P1, a minimum-working-pressure boundary, subsonic/sonic regions and a critical-pressure boundary. Its Q axis is labelled L/min (ANR), with separate scales for Ø15, Ø20, Ø25, Ø35, Ø40 and Ø50 mm. The P2 chart reaches 1.0 MPa. The water chart plots Q in L/min against ΔP=P1−P2 in MPa; marked scales run from 0.02 to 0.5 MPa and 30 to 900 L/min. Its large intermediate curve is labelled Ø32, while the 320 ordering/specification table states a Ø35 mm orifice; retain this source distinction when reading the graph.

    Read the actual curve for the operating condition in the PDF. Axis maxima, plotted endpoints and other bore-size curves are not guaranteed flow ratings for this model; no interpolated flow claim is added here.

    Internal Structure Reference

    The catalog cross-section is labelled 2L150 (grommet). The numbered names below identify that reference drawing; they are not a packing list, individual ordering codes, quantities or a claim that every branch has an identical construction.

    Drawing item Component name
    1 Body
    2 Fixed ring
    3 Airtight gasket
    4 O-ring
    5 Wear ring
    6 Gasket
    7 Screw
    8 Spring
    9 Cover
    10 Spring
    11 Screw
    12 Spring
    13 Spring washer
    14 Coil assembly
    15 Washer
    16 E clip
    17 Movable core
    18 Fixed plate
    19 O-ring
    20 Fixed cap
    21 Airtight ring
    22 Plug
    23 Spring
    24 Piston
    25 Spacer
    26 O-ring

    Mounting Accessories and Selection

    The catalog states that the 320, 400 and 500 series have no mounting accessories. Do not assume that a bracket shown for a smaller body is supplied or compatible.

    Match the full voltage, electrical entry, thread and normal-state configuration. A valve series update does not establish that its old coil, connector or mounting bracket fits the new generation. Follow the flow direction shown on the body and check the exact catalog drawing before installation.

    Series Ordering Options

    The following are available choices within 2L. The current model uses only the configuration decoded above; H applies to the direct-acting 030/050 branches.

    Ordering position Permitted catalog choices
    Direct-acting branches 030: port codes 06 (1/8) or 08 (1/4); 050: 10 (3/8) or 15 (1/2). Pressure code omitted = standard; H = high pressure.
    Internally piloted branches 150/15 = Ø15 mm, 1/2; 200/20 = Ø20 mm, 3/4; 250/25 = Ø25 mm, 1; 320/32 = Ø35 mm, 1 1/4; 400/40 = Ø40 mm, 1 1/2; 500/50 = Ø50 mm, 2.
    Voltage codes A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V.
    Electrical-entry choices Omitted = terminal; I = grommet / flying lead, length 0.5 m.
    Thread choices Omitted = PT; G = G thread; T = NPT. These are alternatives, not simultaneous features.
