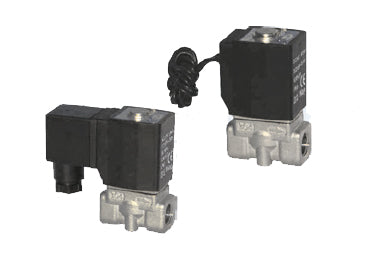

Airtac 2L series: two-way fluid solenoid valve - 2L03008E

Photos are for reference only. Not all models have pictures.

Description

Specifications: 2L03008E is an AirTAC 2L 2/2-way direct acting, normally closed solenoid valve. the omitted pressure code specifies the standard-pressure branch; 030 identifies the size series; port code 08 selects PT1/4; voltage code E selects AC24V; electrical entry is terminal connector. The omitted thread suffix selects PT threads.

Product Catalogs and Comparison Guide

Download Airtac 2L Product Catalog (PDF)

Download Airtac 2LA Product Catalog (PDF)

Legacy coil and mounting-accessory selection: catalog page 205 (PDF)

New shared coil and mounting-accessory selection: 2KLA PDF page 5 (printed page 196)

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

AirTAC 2L vs 2LA: Dimensions and Replacement Guide

Ordering and Delivery

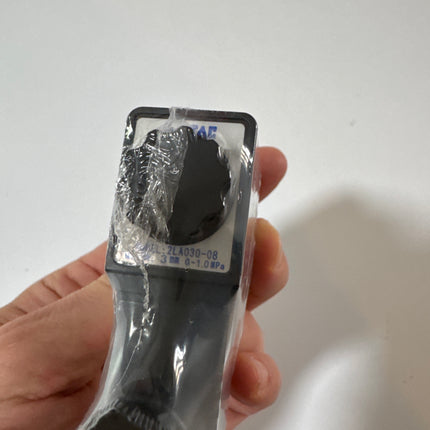

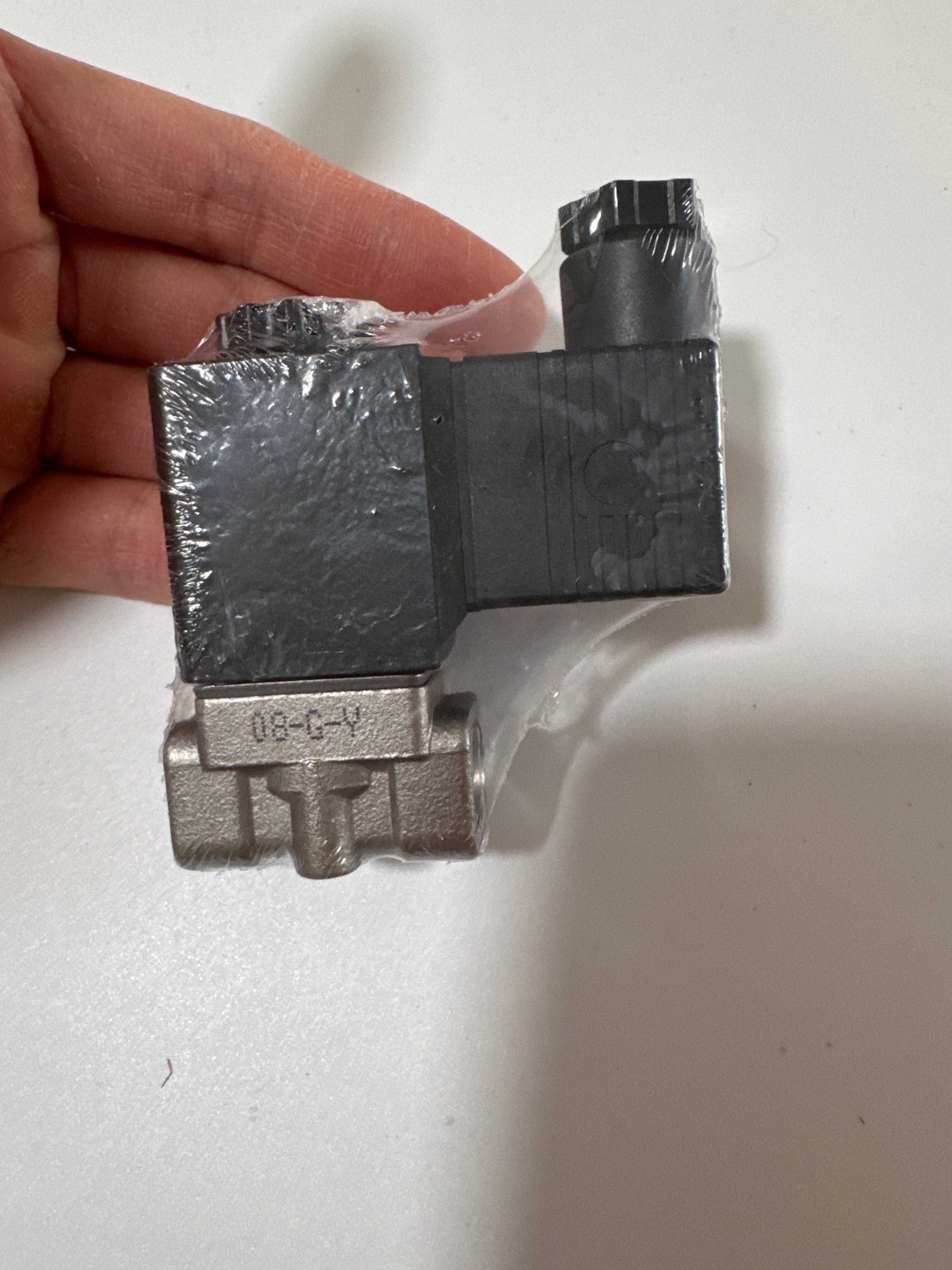

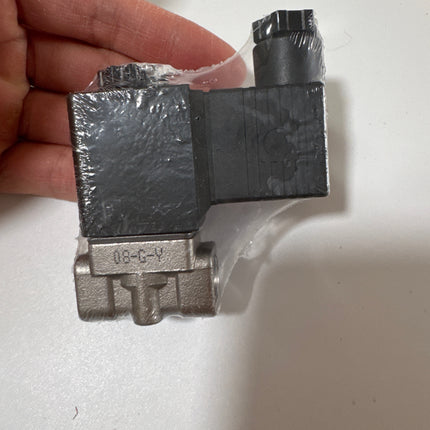

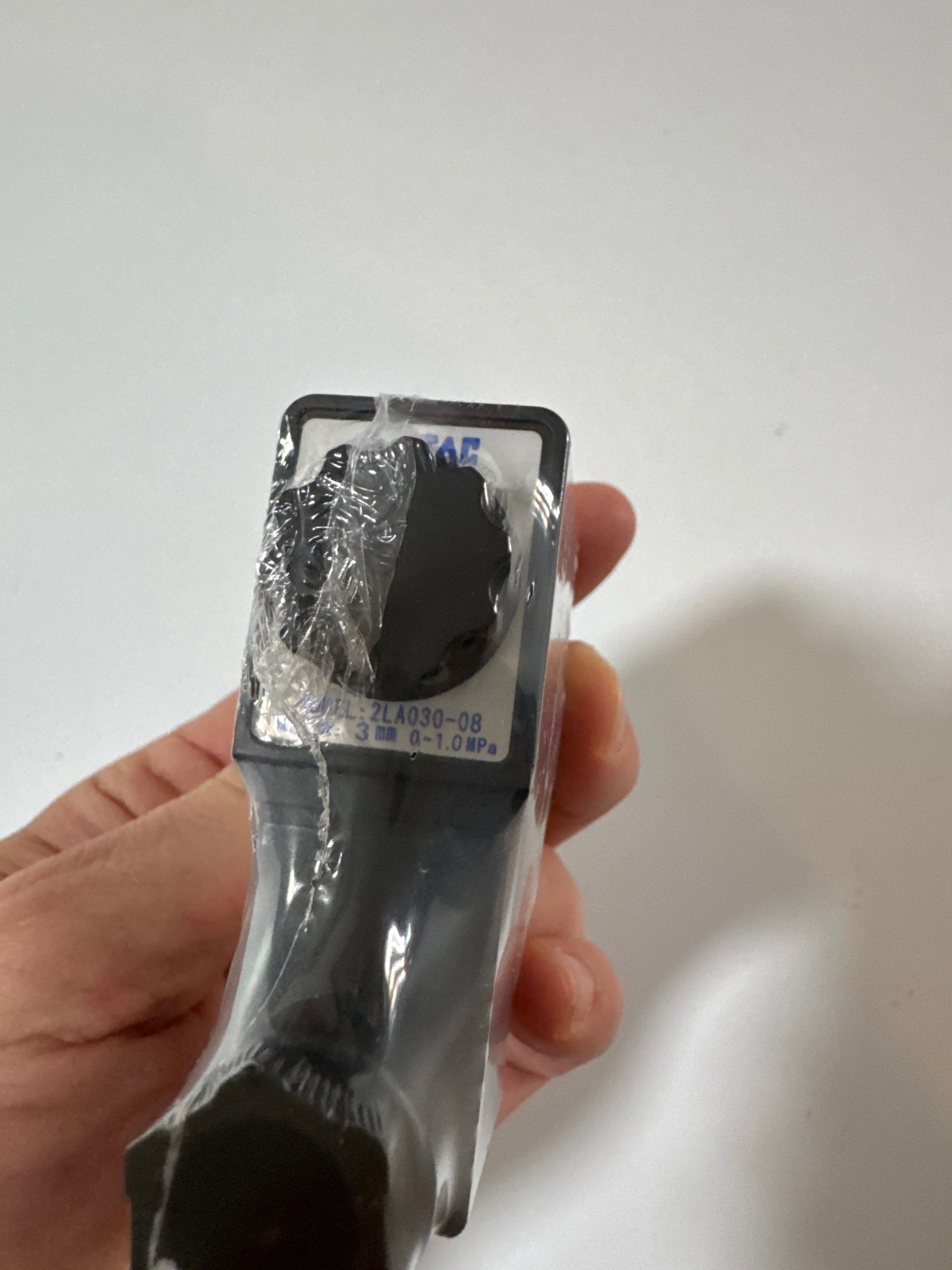

Orders for 2L03008E will be supplied as 2LA03008E (2LA). This is our ordering and delivery policy. It does not mean that the old and new dimensions, mounting details or electrical data are identical. The technical information below describes 2L03008E in the 2L catalog. For the supplied replacement, check the new catalog and comparison guide before installation.

Operation and Construction

This two-port, two-position valve is normally closed in its unenergized state. The coil acts directly on the valve mechanism. The catalog specifies a SUS304 stainless-steel body, a PTFE (Teflon) standard seal, Class H coil insulation and IP65 coil protection. The compact construction is intended to make installation and removal convenient.

Model Code Explained

Code position Meaning for this model
Family 2L — 2/2-way direct acting, normally closed
Size code 030 — series size, not an orifice dimension
Pressure-condition code Omitted — standard pressure
Port-size code 08 — PT1/4
Voltage code E — AC24V
Electrical-entry code Omitted — terminal
Thread code Omitted — PT

Technical Specifications

Parameter Details
Actuation and normal state Direct acting; normally closed
Suitable fluids Steam, high-temperature water and oil
Orifice diameter 3 mm
Flow coefficient Cv 0.33
Effective flow area 6 mm²
Operating pressure differential Maximum differential: 1 MPa. The specification table does not separately state a minimum differential.
Proof pressure 3 MPa
Body material SUS304 stainless steel
Standard seal PTFE (Teflon)
Viscosity limit Under 20 cSt in the general specification; see the separate low-oil-temperature footnote below.
Oil temperature −10 to 150°C; the −10°C entry carries a footnote stating 50 cSt or less.
Water temperature 1 to 150°C
Steam temperature Maximum 183°C; the minimum is not stated.
Ambient temperature −20 to 100°C
Catalog reference weight 290 g; terminal version.

Operating differential is the pressure difference across the valve, not an independent flow rating. The general viscosity limit and the oil-temperature footnote are both retained from the source; they must be checked together for the intended fluid. Catalog weight is a reference value; the actual product prevails.

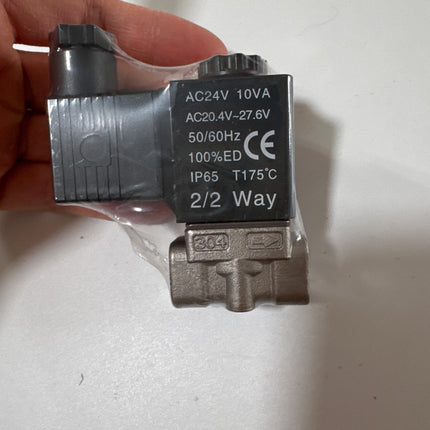

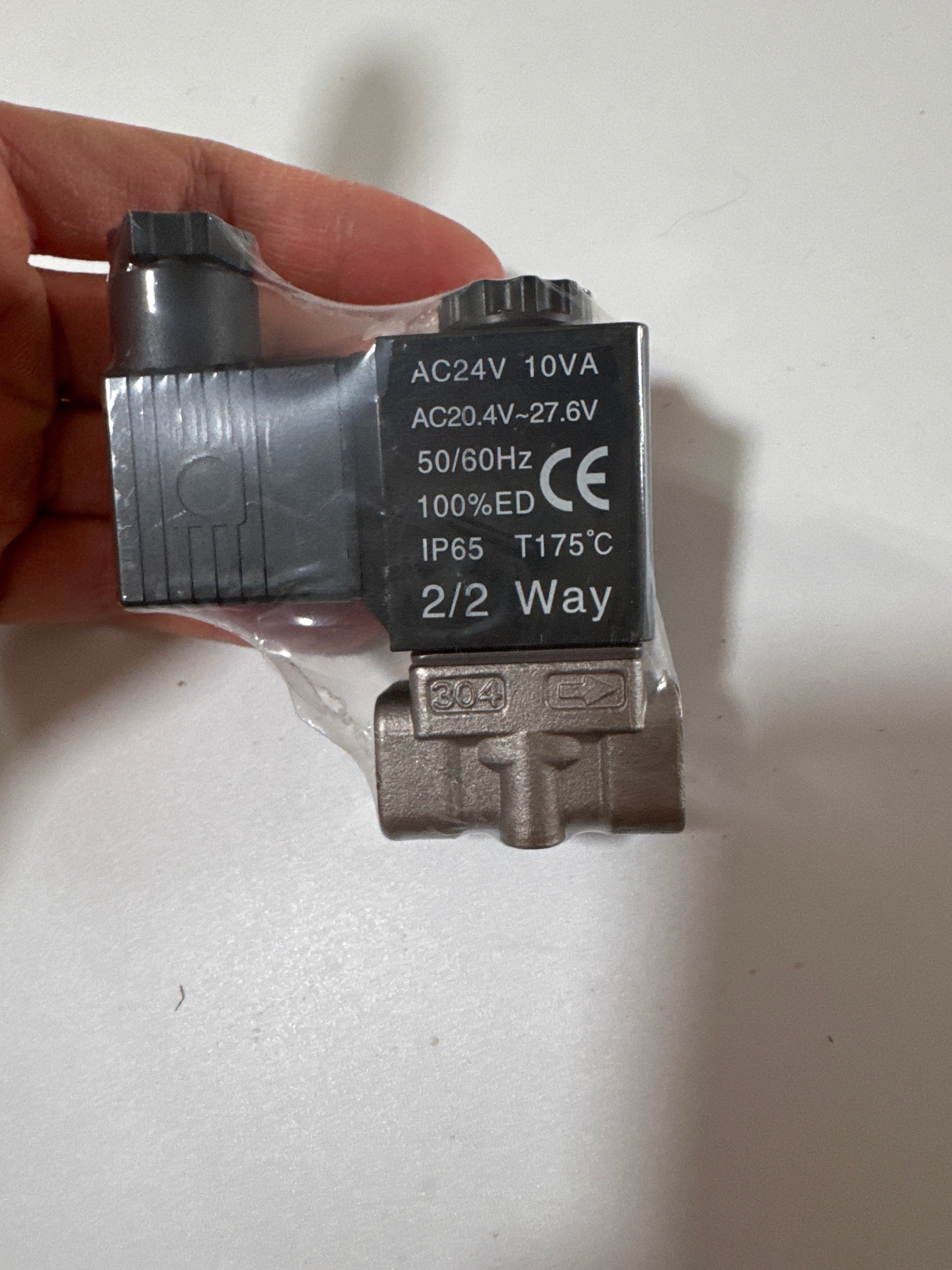

Electrical Specifications

Parameter Details
Rated voltage AC24V
Electrical entry terminal connector
Coil family listed for this valve CDA116
Supply tolerance ±15%
Supply frequency 50 or 60 Hz; consumption differs with frequency.
Power consumption 10 VA at 50 Hz; 8 VA at 60 Hz
Catalog temperature rise 35°C at 50 Hz; 30°C at 60 Hz
Coil insulation Class H
Coil protection IP65

External and Mounting Dimensions

The following values are from the 2L terminal drawing, PDF page 2 (printed page 211). Each letter refers to its own dimension line. Values are in millimetres except threads; “—” means that the source does not list a value.

Drawing reference Current configuration
A — drawing length A 72.5 mm
AB — body span AB 40 mm
B — drawing width B 29.5 mm
C — drawing height C 71 mm
D — drawing dimension D 20 mm
E — drawing dimension E 49 mm
F — drawing dimension F 43.5 mm
G — drawing dimension G 10 mm
K — bracket hole diameter K 5.3 mm
KA — bracket hole spacing KA 40 mm
P — fluid port thread P PT1/4
PA — drawing dimension PA 10 mm
Q — mounting screw thread Q M5
QA — drawing dimension QA 16 mm

The drawing marks two Q mounting threads and two ØK bracket holes. The bracket is optional; its illustrated footprint is not the valve-only envelope. Use the selected port thread shown above; PT, G and NPT are different ordering choices.

For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

Flow and Performance Charts

This configuration has a 3 mm orifice, Cv 0.33 and 6 mm² effective area.

The catalog provides a chart labelled “Fluid: Vacuum” with downstream pressure P2 in MPa, upstream-pressure curves P1, subsonic/sonic regions and a critical-pressure boundary. Its flow axis is labelled kg/h, with separate scales for Ø2, Ø3, Ø4 and Ø5 mm orifices. The water chart plots Q in L/min against ΔP=P1−P2 in MPa, with curves for those four orifices. The water-chart marked scale runs from 0.001 to 0.6 MPa and 0.1 to 40 L/min; the pressure-chart P2 scale runs from 0 to 1.0 MPa.

Read the actual curve for the operating condition in the PDF. Axis maxima, plotted endpoints and other bore-size curves are not guaranteed flow ratings for this model; no interpolated flow claim is added here.

Internal Structure Reference

The catalog cross-section is labelled 2L030 (terminal). The numbered names below identify that reference drawing; they are not a packing list, individual ordering codes, quantities or a claim that every branch has an identical construction.

Drawing item Component name
1 Body
2 Airtight ring
3 Spring
4 Spring
5 O-ring
6 Fixed cap
7 Fixed plate
8 Movable core
9 Coil assembly
10 Washer
11 E clip
12 Connector
13 Washer
14 Screw

Mounting Accessories and Selection

The catalog accessory selection identifies F-2S030LB as the optional LB mounting bracket for this size branch. The valve drawing shows an optional bracket; the catalog does not identify it as included with the valve or list its packing quantity. Order the bracket separately when required, after confirming the mounting arrangement.

Match the full voltage, electrical entry, thread and normal-state configuration. A valve series update does not establish that its old coil, connector or mounting bracket fits the new generation. Follow the flow direction shown on the body and check the exact catalog drawing before installation.

Series Ordering Options

The following are available choices within 2L. The current model uses only the configuration decoded above; H applies to the direct-acting 030/050 branches.

Ordering position Permitted catalog choices
Direct-acting branches 030: port codes 06 (1/8) or 08 (1/4); 050: 10 (3/8) or 15 (1/2). Pressure code omitted = standard; H = high pressure.
Internally piloted branches 150/15 = Ø15 mm, 1/2; 200/20 = Ø20 mm, 3/4; 250/25 = Ø25 mm, 1; 320/32 = Ø35 mm, 1 1/4; 400/40 = Ø40 mm, 1 1/2; 500/50 = Ø50 mm, 2.
Voltage codes A = AC220V; B = DC24V; C = AC110V; E = AC24V; F = DC12V.
Electrical-entry choices Omitted = terminal; I = grommet / flying lead, length 0.5 m.
Thread choices Omitted = PT; G = G thread; T = NPT. These are alternatives, not simultaneous features.
