Description

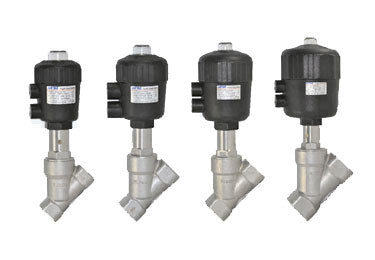

Specifications: 2 port two pneumatic angle seat valve Body material: stainless steel SUS304 Initial state: normally open type Nominal diameter: ø32mm Nozzle caliber: 1 1/4" Actuator bore: ø63mm Tooth type: G tooth
Click to download Airtac product catalog
Product Features
1. Pneumatic pilot, can be used in non-electrical flammable and explosive environment. Low starting pressure, high pressure can be controlled by low pressure.
2. The fittings and slide bar are made of stainless steel, with excellent anti-rust performance, and the seals are made of Teflon material, which can be widely used in high temperature and strong corrosive liquid environment.
3. The valve adopts a 45-degree inclination structure, streamlined cavity design, reducing channel resistance, so that the liquid flow more smoothly, so as to achieve a large flow. The inlet is equipped with a filter element to effectively prevent impurities from entering and extend the service life of the seal.
4. Actuator is equipped with visual position indicator. Flow can be checked and adjusted visually.
5. The control points are made of metal inserts. Mounting plate can be used according to NAMUR value.
6. The actuator part can rotate 360 degrees, easy to install.
