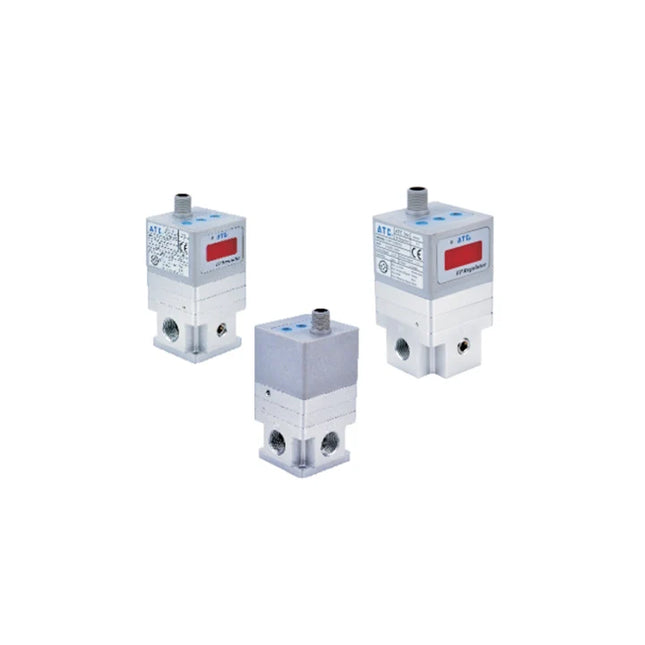

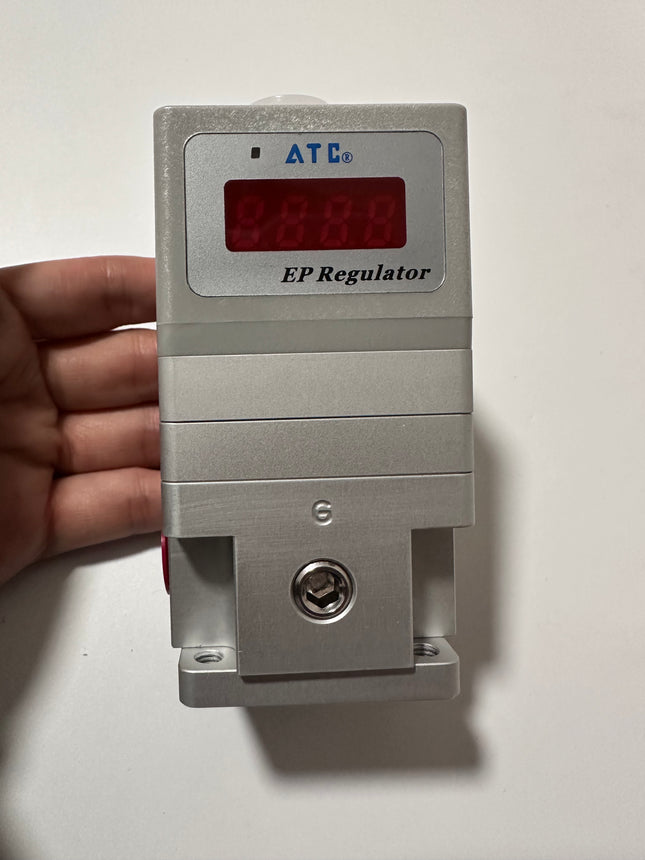

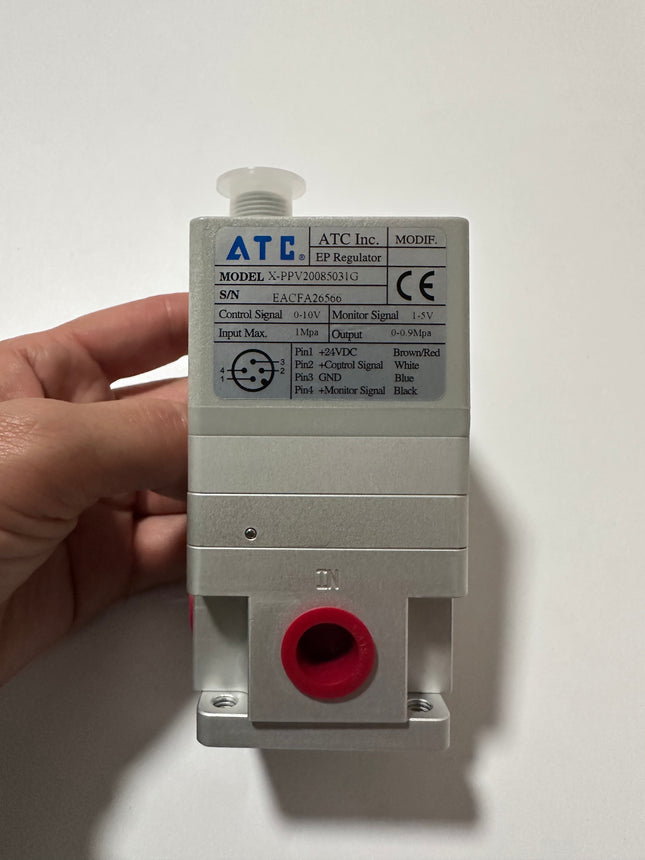

X-PPV Series Electro-Pneumatic Proportional Valve
Applications
- Leak Detection Equipment: For specialized pneumatic component testing equipment (e.g., leak testers). Can perform multi-step airtightness tests, leak detection, dynamic response testing, etc. The proportional valve precisely executes the simulated control signals recorded by the system component/system performance tester.
- Painting and Laminating: In automotive, sports equipment, and packaging industries, precise pressure control is required for varying spraying pressures, atomization, and fan width. Ensures consistent coating surface and avoids warping. Precise steady pressure is provided by the proportional valve.
- Fluid Process Control: Pneumatic diaphragm pumps are often used for corrosive or high-viscosity fluid transfer. By using an electrical proportional valve to output an adjustable pressure to the pneumatic diaphragm pump, stepless control of the pump outlet pressure is achieved. The fluid output flow varies with pressure, realizing precise fluid control.
Innovative Technology
- Closed-Loop Control: Advanced closed-loop control technology for high stability.
- Self-Diagnosis: Built-in self-diagnosis function for easy maintenance.
- High Precision: Built-in high-precision pressure sensor.
- IP65 Rating: Suitable for various harsh industrial environments.
- Versatile Application: Suitable for welding, tension control, grinding, and many other scenarios.
- Flexible Output: Provides independent output signals when target pressure is reached (Switch signal).
- Customization: Professional consulting and service team; customize products according to customer requirements.
Valve Ordering Code
X-PPV 10 06 10 0 1 □
| No. | Item | Options / Description |
|---|---|---|
| ① | Series |
10: 10 Series (Small) 20: 20 Series (Medium) 30: 30 Series (Large) |
| ② | Port Size |
For 10 Series: 06 (1/8"), 08 (1/4") For 20 Series: 08 (1/4"), 10 (3/8") For 30 Series: 10 (3/8"), 15 (1/2") |
| ③ | Pressure Range |
10: 0.1 MPa 30: 0.5 MPa 50: 0.9 MPa |
| ④ | Input Signal |
0: 4~20 mA (Current) 1: 0~20 mA (Current) 2: 0~5 V (Voltage) 3: 0~10 V (Voltage) 4: 4-Point Switch Preset Input |
| ⑤ |
Output Signal (Monitor) |
0: None 1: 1~5 V (Analog Voltage) 2: 24V (PNP Switch) 3: 24V (NPN Switch) 4: 4~20 mA (Analog Current) |
| ⑥ | Thread Type |
Blank: PT Thread T: NPT Thread G: G Thread |
Accessory Ordering Code
Mounting Bracket
X - F - PPV □ B
| Code | Description |
|---|---|
| H | Horizontal Flat Bracket (水平安装支架) |
| L | L-Shape Bracket (L型安装支架) |
Cable (Connector)
X - F - PPV □ C
| Code | Description |
|---|---|
| S | Straight Cable (3m length) (竖直缆线) |
| L | L-Angle Cable (3m length) (L型缆线) |
| H | L-Angle Circular Connector (L型圆形接器) |
| V | Straight Circular Connector (竖直圆形接器) |
