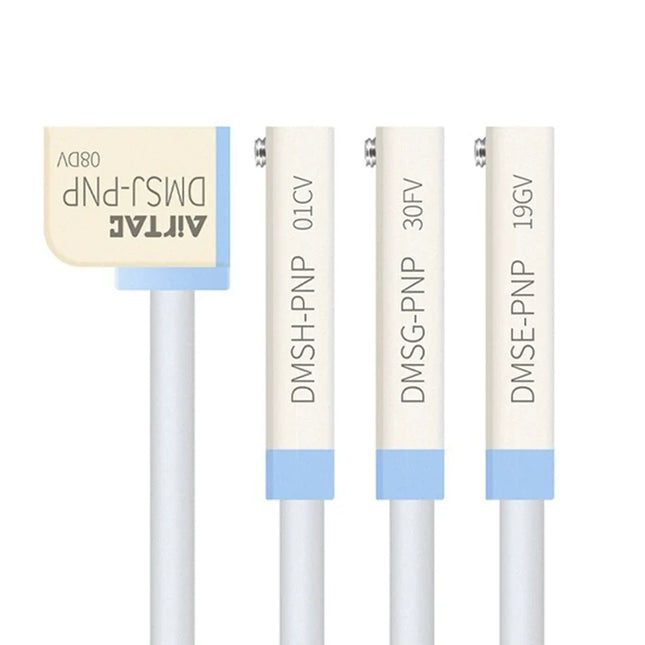

DMS Series Sensor Overview
Three Sensor Types
- General Type (A05-DMS) – Light Blue
- Oil-resistant, Bend-resistant Type (A06-DMS) – Yellow
- Waterproof Type – Yellow with IP68 Protection
For Robotic Arm Applications (A05-DMS)
- Equipped with bend-resistant cable, suitable for robotic joints, drag chains, etc.
- In high-temperature, dusty, or humid environments (with water or oil droplets), protective measures for sensors are required.
- High-flex cable material: Improves flexibility by about 20%.
Oil-resistant & Bend-resistant Type (A06-DMS)
- Equipped with bend-resistant cable, suitable for robotic joints, drag chains, etc.
- In high-splash environments, protective measures for sensors are required.
- Oil-resistant & bend-resistant cable: Improves flexibility by about 20%.
- Integrated Waterproof Design: IP68 protection rating.
Structural Features
- High-flex cable material
- Enhanced SR bend protection structure
- Shock-resistant engineering plastic
Mounting Accessories
DMSG is compatible with two types of mounting accessories, suitable for various cylinder types:
- F-MQ□ – Clip-on type
- F-SC□SH – Slide-in mounting type
Note: A05-DMS and A06-DMS cables are recommended for use with a minimum bending radius of 19mm.
DMS Series Specifications
| Item | 2-wire Type* | NPN 3-wire Type | PNP 3-wire Type |
|---|---|---|---|
| Voltage | 10V ~ 28V DC | 5V ~ 30V DC | 5V ~ 30V DC |
| Max Load Current | 2.5mA ~ 100mA | 30V/200mA Max. | 30V/200mA Max. |
| Max Load Capacity | 2.8W Max. | 6.0W Max. | 6.0W Max. |
| Internal Consumption Current | 3mA Max. | 5mA Max. | 5mA Max. |
| Residual Voltage (Internal) | 3.5V Max. | 0.7V Max. | 0.7V Max. |
| Leakage Current | 0.06mA Max. | 0.01mA Max. | 0.01mA Max. |
| Max Switching Frequency | 1000Hz | ||
| Shock Resistance | 50G | ||
| Protection | Power reverse polarity protection, surge absorption protection | ||
| Operating Temperature | -10°C ~ 70°C | ||
| Protection Rating | General, Robotic Arm: IP64 | Waterproof, Oil-resistant: IP68 | |
| Standards | CE Certified, RoHS Compliant | ||
Note: A05 and A06 models are available in 2-wire type only.
DMS Ordering Code
Example Models: DMS G - □ □ 020 - □, A05-DMS G - □ □ 020 - □, A06-DMS G - □ □ 020 - □
| Position | Description | Options |
|---|---|---|
| ① Industry | Application Type | Blank – General type A05 – Robotic arm industry A06 – Oil-resistant, bend-resistant |
| ② Series | Sensor series | DMS – Electronic sensor |
| ③ Shape | Sensor shape | G / H / E / J * |
| ④ Output Type | Signal output format | Blank – 2-wire type N – NPN 3-wire P – PNP 3-wire |
| ⑤ Cable Type | Connection method |
Direct cable: 020 – 2m cable 030 – 3m cable 050 – 5m cable 100 – 10m cable Quick connector: M08 – M8 male connector + 0.5m cable M08□10 – M8 male connector + 1m cable M08□20 – M8 male connector + 2m cable M08□30 – M8 male connector + 3m cable M12 – M12 male connector + 0.5m cable M12□10 – M12 male connector + 1m cable M12□20 – M12 male connector + 2m cable M12□30 – M12 male connector + 3m cable |
| ⑥ Special Code | Optional feature | Blank – General W – Waterproof IP68 ** |
Notes:
* J-shape is not available for A06 model.
** For general and A05 models, M08 and M12 connectors can be selected with or without waterproof structure.
A06 model is already equipped with waterproof function.
For waterproof connectors, see page P412.
Sensors Selection Guide – DMS, EMS, CMS Series
1. Direct Slot Mounting (DMSG, CMSG, EMSG)
| Sensor Model | Compatible Cylinder Series (Bore Size) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DMSG / CMSG / EMSG | HFK / HFKL (Ø10~Ø25) | ACO / TACQ (Ø16~Ø160) | SDA (Ø10~Ø100) | TWQ / TCL / TCM (Ø12~Ø100) | QCK (Ø12~Ø63) | SAU / HFZ / HFY / HFP (Ø10~Ø63) | TR / STW (Ø10~Ø63) | MD / MKC (Ø16~Ø40) | AQK / BAK (Ø16~Ø32) | MCK (with MCK40G) | ● indicates compatibility | |||
2. Mounting with Brackets (DMSG, CMSG)
| Sensor Model | Compatible Cylinder | Bracket Type | Bracket Model |
|---|---|---|---|
| DMSG / CMSG | PB / PBR, MI / TMI, MF, MG, MA / MAC | Aluminum Clamp | MBL, MCK, TWK (standard / enhanced) |
| — | Plastic Clip | 3Q, 4Q | |
| ● Must be used with bracket for correct installation. | |||
3. Clamp Mounting (DMSG, CMSG)
| Sensor Model | Clamp Model | Applicable Bore Size | Note |
|---|---|---|---|
| DMSG / CMSG | SC,SGC | Ø32 ~ Ø250 | Used with SC,SGC mounting kits |
4. External Slot Mounting (DMSJ, CMSJ)
| Sensor Model | Compatible Series | Bore Size | Note |
|---|---|---|---|
| DMSJ / CMSJ | ACO/TACQ, SDA, TWQ, QCK, QDK, TN | Ø10 ~ Ø100 | Mounting accessories required |
| DMSJ / CMSJ | TWH / TWM | Ø20 ~ Ø80 |
5. Plug-in Type Sensors (DMSH, CMSH, EMSH)
| Sensor Model | Compatible Series | Bore Size |
|---|---|---|
| DMSH / CMSH / EMSH | ACO/TACQ, TC, HFZ, HFY, HFP, HFR, HFC, HFT | Ø6 ~ Ø125 |
| QDK, HLQ, HLQH, HLS/HLSL, MU, HLH, MPG | Ø6 ~ Ø63 | |
| HRQ, HFK, HLF, HGS, RMH, HFD | Ø2 ~ Ø100 |
6. Slot-in Sensors (DMSE, CMSE)
| Sensor Model | Compatible Series | Bore Size |
|---|---|---|
| DMSE / CMSE | SE / BSE, SAI / TSAI, SAI, ACE, ACE / JSI | Ø32 ~ Ø200 |
● For detailed sensor-cylinder compatibility, refer to original catalog or consult technical support.
