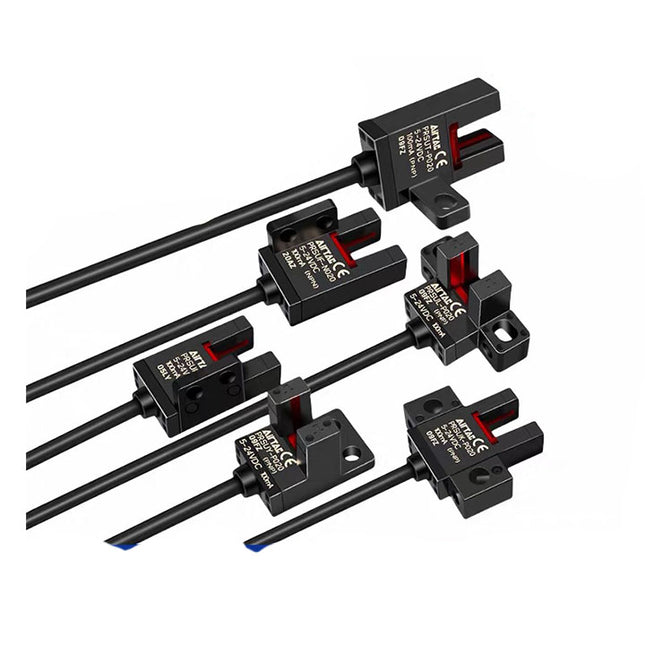

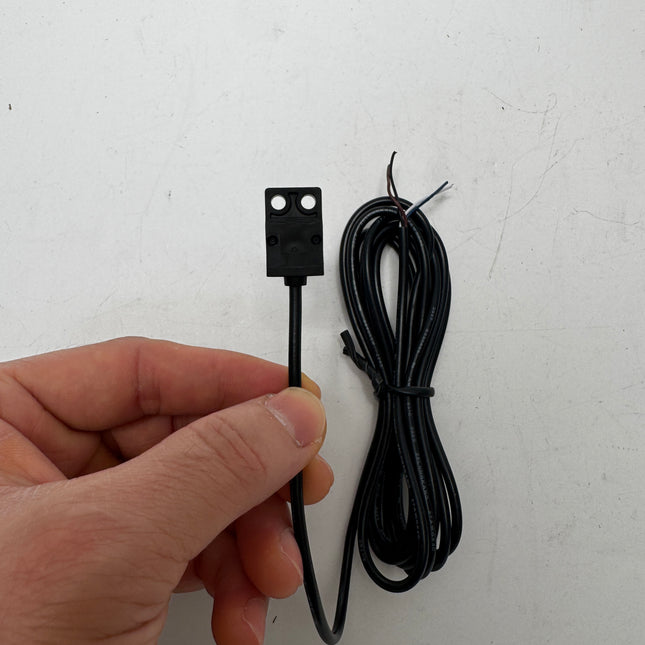

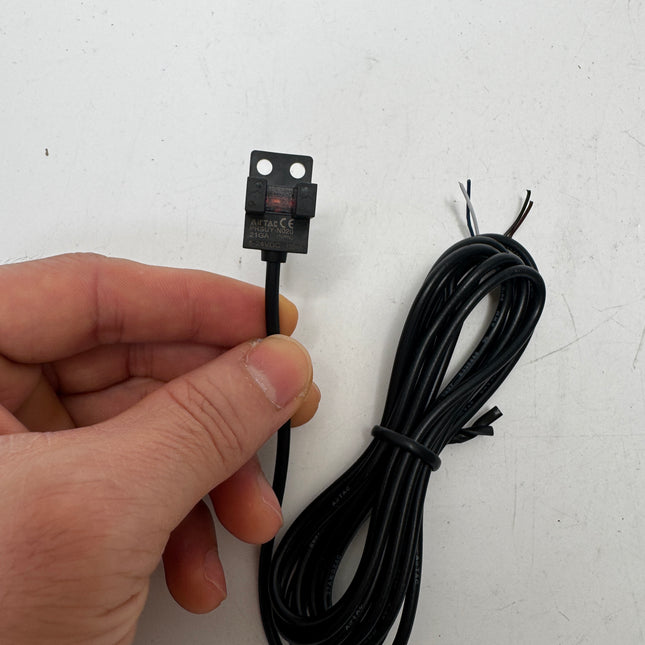

PRSU Series Photoelectric Sensor (Slot Type)
Precautions for Use
- Industrial Design: Developed and manufactured for use in industrial environments.
- Interference: As a built-in device, please take special measures against external light interference. Do not direct strong light beams into the receiver.
- Power-on Transient: Avoid using the sensor during the transient state (approx. 50ms) immediately after powering on.
- Maintenance: In dusty environments, periodically clean the emitter and receiver parts with a dry, soft cloth.
- Surge Protection: If motors, solenoids, or other devices generating high surge currents are nearby, install a surge absorber on those devices.
- Wiring: Avoid parallel wiring with high-voltage or power lines to prevent induction noise.
- Noise Reduction: Connecting a capacitor between the sensor's +V and 0V terminals is recommended to ensure surge noise is eliminated before use.
General Specifications
| Detection Distance | 5.5 mm (Slot Width) |
|---|---|
| Repeat Accuracy | 0.01 mm or less |
| Min. Detectable Object | 0.8 mm × 1.2 mm Opaque Object |
| Indicator | Red LED (Lights up when light enters / Light-ON) |
| Protection Structure | IP65 |
| Ambient Temperature | Operating: -10°C ~ +70°C Storage: -30°C ~ +80°C |
| Ambient Humidity | Operating: 5% ~ 85% RH Storage: 5% ~ 95% RH |
| Ambient Light | Fluorescent light: Receiver surface illumination 1,000 lux or less |
| Vibration Resistance | 10Hz ~ 2,000Hz, Double amplitude 1.5mm (XYZ directions, 2 hours each) |
| Shock Resistance | Acceleration 15,000m/s² (approx. 1,500G) (XYZ directions, 3 times each) |
| Material | Case: PBT (Polybutylene Terephthalate) Cover: Red Transparent PC |
Electrical Specifications
| Item | Parameters |
|---|---|
| Supply Voltage | 5 ~ 24V DC ±10% |
| Current Consumption | 10 mA or less |
| Control Output |
NPN Type: Output DC 5-24V, 100mA max. PNP Type: Output DC 5-24V, 50mA max. |
| Output Action | Equipped with 2 outputs: ON when Light enters (Light-ON) / ON when Light interrupted (Dark-ON) |
| Response Frequency | 3 kHz or more [Note 1] |
| Response Time | Light Entering: 20 µs or less Light Interrupted: 80 µs or less |
| Protection Circuits | Power reverse polarity protection, Output overcurrent protection, Output short-circuit protection, Output reverse connection protection |
| Insulation Resistance | 20 MΩ or more (at DC250V megger) between all power terminals and case |
[Note 1]: Response frequency is the value when the disk in the diagram rotates.
Product Ordering Code
Example: PRSU T - N 020
| No. | Item | Options / Description |
|---|---|---|
| 1 | Series Code | PRSU: Slot Type Photoelectric Sensor |
| 2 | Shape Code |
T F R K L Y (Select housing shape) |
| 3 | Output Type |
N: NPN Output P: PNP Output |
| 4 | Cable Length |
020: 2m Length 030: 3m Length 050: 5m Length |
