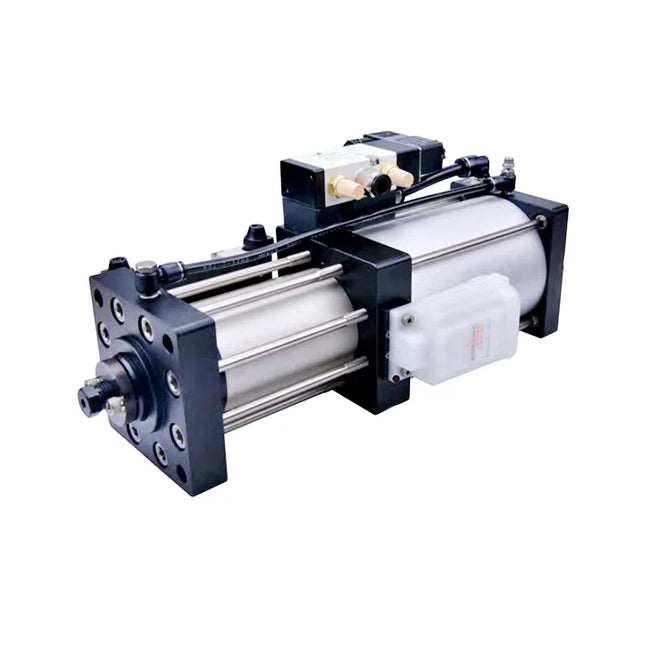

Specifications: NPM60T70X15F is an NPM air-over-oil tool-release cylinder, nominal 6 T class, with a 70 mm hydraulic bore and 15 mm tool-release stroke. Its hydraulic section is single acting and its pneumatic section is double acting.
Product Catalog
Download Airtac Product Catalog (PDF)
Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF)
Download 2022 cylinder installation and weight tables (PDF)
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Model code
Code
Meaning
NPM
Air-over-oil spindle tool-release cylinder
60T
Nominal 6 T output class; actual catalog output depends on supply pressure
70X15
70 mm hydraulic bore × 15 mm tool-release stroke
F
12 V DC solenoid voltage
(blank connection)
DIN plug connector
(blank microswitch)
Without microswitches
Technical specifications
Parameter
Details
Hydraulic / pneumatic acting type
Single acting / double acting
Fluid
Air filtered through a 40 μm element
Operating pressure
0.5–0.8 MPa
Pneumatic proof pressure
1.0 MPa
Temperature
−5 to +60 °C
Air connection
PT3/8
Output listed in the specification table at 0.6 MPa
5.7 T
Solenoid valve family
4M310; parts list identifies the 4M31010 voltage variant
Selected electrical supply
12 V DC
Electrical connection
DIN plug connector
Microswitches
Not included
Spindle blowing
Built-in air-blowing function opens when the two passages align at the hydraulic stroke end
Theoretical output curve and source limits
Air supply pressure
Theoretical curve output
0.4 MPa
3.8 T
0.5 MPa
4.8 T
0.6 MPa
5.7 T
0.7 MPa
6.7 T
0.8 MPa
7.6 T
The plotted 0.4 MPa point is below the specified 0.5 MPa operating minimum and does not extend the permitted operating range. The curve is a theoretical reference, not a measured rating of an individual unit.
Source discrepancy: the specification and theoretical curve both give 5.7 T at 0.6 MPa. The dimension-page force table instead prints 4.7 T for NPM60T70X15. This description uses the matching specification/curve value as the reference and records the conflicting dimension-page value; “60T” remains a nominal 6.0 T class code, not a guaranteed 6.0 T output at 0.6 MPa.
Dimensions and adjustment
All dimensions are millimeters. The letters and small callouts follow the source assembly drawing; use the drawing for orientation, hole positions and moving clearances. AB is an adjustable range, not an extra stroke.
Parameter
Details
AB adjustable range
26–40
AC
496.5 mm
AF
194 mm
AG
227.5 mm
K
13 mm
Top drawing length
184 mm
Top drawing overall transverse callout
159 mm
Top offset
30.5 mm
Valve-side callout
49 mm
Opposite callout
44.5 mm
Mounting square
108 mm
Mounting-hole pitch square
84 mm
Spindle air passage diameter
5 mm
Pneumatic body square
110 mm
Rear end thickness
20 mm
Middle cover thickness
31 mm
Front cover thickness
24 mm
Front projection reference
5 mm
Hydraulic rod diameter
60 h7
Tool-end diameter
42 mm
ST tool-release stroke
15 mm
For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.
Operating sequence
During release, air enters the upper pneumatic chamber and drives the pneumatic piston downward. The oil pressure increases and pushes out the hydraulic piston rod to release the tool.
During return, air enters the lower pneumatic chamber and raises the pneumatic rod; the hydraulic piston rod returns under spring force.
At the tool-release end position, the two small air passages align and automatically enable spindle blowing. Adjust the blowing flow at the dedicated connector.
Where fitted, an L-shaped plate operates the microswitch at the stroke limit. Its signal belongs in the tool-change control sequence and must be coordinated with the other machine motions.
Installation and commissioning
Install vertically above a vertical spindle on a rigid support. Keep the support mounting face perpendicular to the spindle axis within 0.05 mm per 100 mm; misalignment produces reaction force and reduces service life.
Set the hydraulic release position before operation. With the upper chamber supplied and the tool-release cylinder fully extended, adjust the release bolt so that the tool is released by the required amount. The source examples are BT30: 0.2–0.4 mm, BT40: 0.4–0.7 mm and BT50: 0.5–1.0 mm. Do not use less than the required minimum release amount.
Loosen the locking-coil screw to set clearance A between the fixing screw and drawbar, test release repeatedly, then lock the setting. Excessive projection can bend the drawbar or damage the spindle.
With no release command, the spindle drawbar must not contact the pneumatic-cylinder screw. If contact occurs, reduce the drawbar length or use an appropriate longer-stroke cylinder.
When microswitches are fitted, adjust them separately at both travel ends. Move the switch toward the plate until it operates, then depress a further 0.5–1.5 mm and fix it. Set the PLC delay so release and tool-pulling motions do not cause premature pulling or excessive pulling.
Oil, air supply and maintenance
The installation guidance recommends stable 0.6–0.8 MPa air and a pressure switch to enforce the minimum machine pressure. This recommendation is narrower than the general 0.5–0.8 MPa specification. Excess pressure shortens seal life; insufficient pressure reduces release force.
Use clean air and drain the air-treatment unit regularly. Prefer a dedicated supply; where machines share a supply, size the air receiver to reduce pressure fluctuation.
The oil reservoir recommendation is ISO VG32 anti-wear hydraulic oil. Cycle the cylinder repeatedly after initial filling to purge air, and keep the oil level within its marked range.
Inspect the reservoir periodically and replenish or replace oil. The source suggests an initial replenishment interval of six months or more; if replenishment becomes necessary about monthly, renew the oil. Use the same manufacturer and grade when replenishing; do not mix other oils.
The reservoir float contains a magnet and supports G-profile CMSG / DMSG / EMSG sensing for low liquid level. This is reservoir-level detection, not a claim that the hydraulic piston accepts the same sensor.
Choose sufficient release force for the spindle; the catalog guide uses roughly 3–4 times the spindle clamping force and gives typical classes of 3.5 T for a 40-size spindle, 4.5 T for a 50-size spindle and 6 T for a high-power 50-size spindle. Validate the actual machine requirement.
Secure microswitches, use correctly dimensioned drawbars and tool holders, and avoid over-long or over-short parts that cause sticking or damage. Remove the last tool from the spindle before shutdown rather than leaving it installed as the spindle cools.
Construction and materials
The list below describes the catalog assembly. Microswitches and their mounting hardware correspond to the L option; the valve voltage and connection correspond to this product code. A parts-list family code is not a promise that unrelated accessories are separately supplied.
Internal structure and materials
1. Hydraulic piston / rod: Carbon steel.
2. Tool-release screw: Alloy steel.
3. Hex-socket pan-head screw: Medium/low-carbon steel.
4. Spring washer: Spring steel.
5. Gasket: Low-carbon steel.
6. O-ring: NBR.
7. Wear ring: Wear-resistant material.
8. Front cover: Aluminum alloy.
9. Limit-switch mounting plate: Cold-rolled steel.
10. Spring washer: Spring steel.
11. Hex-socket pan-head screw: Medium/low-carbon steel.
12. Large steel tube: Low-carbon steel.
13. Small steel tube: Low-carbon steel.
14. Spring: Spring steel.
15. Microswitch NPM35T63-024: Assembly.
16. L-shaped stop plate: Cold-rolled steel.
17. Hex-socket screw: Medium/low-carbon steel.
18. Washer: Stainless steel.
19. Spring washer: Spring steel.
20. Screw-locking plate: Cold-rolled steel.
21. Hex-socket pan-head screw: Medium/low-carbon steel.
22. Wear ring: Wear-resistant material.
23. Special-shaped seal: TPU.
24. O-ring: NBR.
25. Special-shaped seal: TPU.
26. Middle cover: Aluminum alloy.
27. Special-shaped seal: NBR.
28. Piston rod: Medium-carbon steel.
29. Piston: Aluminum alloy.
30. Aluminum tube: Aluminum alloy.
31. Piston seal: NBR.
32. Wear ring: Wear-resistant material.
33. O-ring: NBR.
34. Bumper: TPU.
35. Rear cover: Aluminum alloy.
36. Connecting block: Aluminum alloy.
37. Spring washer: Spring steel.
38. Hex-socket pan-head screw: Medium/low-carbon steel.
39. General-purpose silencer: Material not stated in the parts table.
40. Hex-socket pan-head screw: Medium/low-carbon steel.
41. Hex-socket pan-head screw: Medium/low-carbon steel.
42. Support nut: Medium/low-carbon steel.
43. Support post: Medium-carbon steel.
44. Oil reservoir NPM35T63-012: Plastic.
45. O-ring: NBR.
46. Reservoir retaining plate: Aluminum alloy.
47. O-ring: NBR.
48. Stroke-adjustment sleeve: Aluminum alloy.
49. Hydraulic-cylinder support: Medium-carbon steel.
50. Hex-socket elbow PH601D: Material not stated in the parts table.
51. PU tube 1, US98A060040□BK: Plastic.
52. O-ring: NBR.
53. Steel ball: Stainless steel.
54. Solenoid valve assembly 4M31010□: Assembly.
55. Male connector PC1003D: Material not stated in the parts table.
56. Meter-out flow controller PSL601AD: Material not stated in the parts table.
57. PU tube 2, US98A100065□BK: Plastic.
58. Male elbow PL1002D: Material not stated in the parts table.
General selection applicability
The 63 / 70 mm code identifies the hydraulic bore in this air-over-oil unit. The paper299 / execution420 general pneumatic-cylinder speed table cannot be applied to that number as if it were the pneumatic drive bore. Use the NPM pressure, force, port and machine-cycle requirements.
Optional reservoir low-level sensors and matching cables
G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100
G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H
G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100
G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W
G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W
G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100
Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100
Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100
The listed G-profile sensors are separately ordered alternatives for the NPM oil-reservoir magnetic float and low liquid-level signal. They do not detect hydraulic-piston position or replace the separate L-option mechanical end-position microswitches. Select a sensor circuit and controller supply independently of the main solenoid-valve voltage. A final -H on a CMS order code selects the high-temperature reed version.
CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED.
Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively.
NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings.
Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Select lead length for the reservoir installation and control cabinet independently of the tool-release stroke.
Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately.
A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors.
Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The NPM unit remains limited to −5 to +60°C, so the common range is −5 to +60°C subject to the other installed components. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the reservoir, connectors or whole assembly; a sensor rating does not authorize immersion in hydraulic oil.
CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative.
Fit the selected G-profile sensor at the NPM reservoir sensor location shown for its magnetic float, and verify switching at the required low oil level after installation. Do not infer a hydraulic-cylinder body groove or use this signal as a tool-release end-position confirmation. Loosen the sensor locking screw so it does not project below the sensor base, position the sensor, then tighten. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; this is not a reservoir or cylinder mounting torque. Keep cables free of strain, avoid unnecessary bending and impacts, and inspect fixings, wiring and indication.
Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.
Matching valve service parts and tube order examples
These separately ordered service options match the integrated valve and tube families already identified for this NPM configuration. They are replacement choices, not an extra operating-valve set or a required accessory bundle. Confirm the installed revision, sealing face, mounting and electrical entry before service.
4M31010F: 12 V DC; DIN plug entry; PT3/8 supply P and PT1/4 exhaust R/S; NAMUR work faceMatching complete-order reference for service replacement of the integrated 4M310 valve.
CDA092F: 12 V DC; DIN coil; 092 family for 4M300Matching replacement coil for the existing valve, selected instead of replacing the whole valve.
4V210-005-P1, 4V210-005-P3: Alternative DIN terminals: P1 plain AC/DC; P3 DC green indicatorChoose one terminal for the selected CDA092 coil; these are alternatives, not a pair.
US98A060040100MBK: Black polyester-PU tube, 6 mm OD × 4 mm ID, 100 m rollComplete packaging example for the existing tube-1 family; cut to the measured installed length.
US98A100065100MBK: Black polyester-PU tube, 10 mm OD × 6.5 mm ID, 100 m rollComplete packaging example for the existing tube-2 family; cut to the measured installed length.
The matched valve uses PT3/8 at supply P and PT1/4 at exhaust R/S; A/B connect through its NAMUR mating face. Do not treat A/B as threaded tube ports. Retain the original NPM release, return and spindle-blowing arrangement. No replacement NAMUR seal or mounting-kit order code is established here.
The selected 12 V DC valve permits ±10% supply variation and consumes 2.5 W. For DIN entry, select either the plain terminal or the listed DC indicator terminal; connect terminal 1 positive and terminal 2 negative. Reversing polarity can leave the indicator off while the valve still operates. Whole-valve and coil-only replacements are alternatives; neither changes the original microswitch option.
Keep the NPM operating limits of 0.5–0.8 MPa and −5 to +60°C, including the original recommendation for stable 0.6–0.8 MPa machine supply. The valve range is 0.15–0.8 MPa and −20 to +70°C; its wider limits do not widen the NPM rating. Actual machine sequencing, release force and air capacity remain governed by the original installation requirements.
The two black 100 m rolls complete the existing PU family codes as packaging examples, not required installed lengths or additional hydraulic piping. Both are rated to 1 MPa at 23°C and −20 to +70°C, subject to temperature derating; minimum bend radii are 15 mm for 6×4 mm and 25 mm for 10×6.5 mm. Match the existing routing, tube dimensions and fittings, cut to actual length, and apply the lowest component limit.Weight reference
9500 g estimated configuration reference, based on the catalog’s 9.5 kg entry for the nominal 6 T class. The catalog does not separately weigh each voltage, wiring or microswitch option. This is not an independently measured net weight or a packaged shipping weight.
