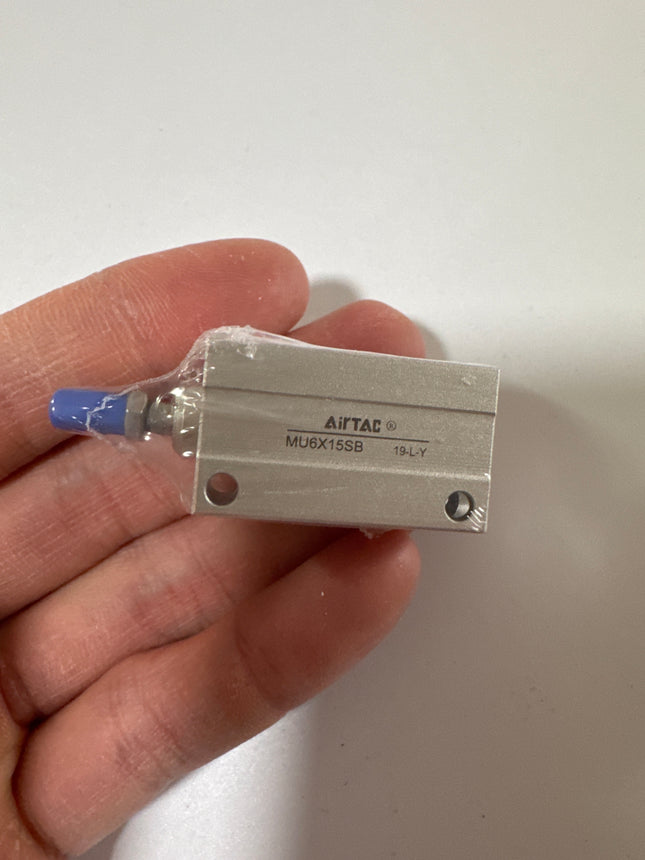

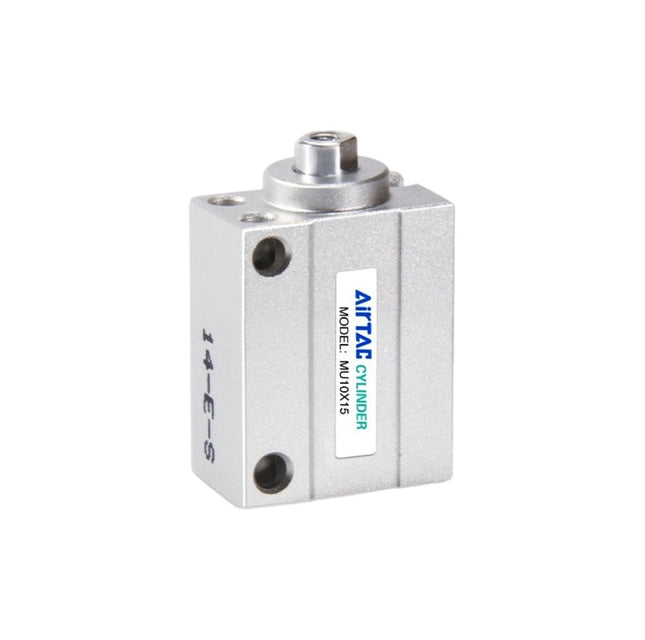

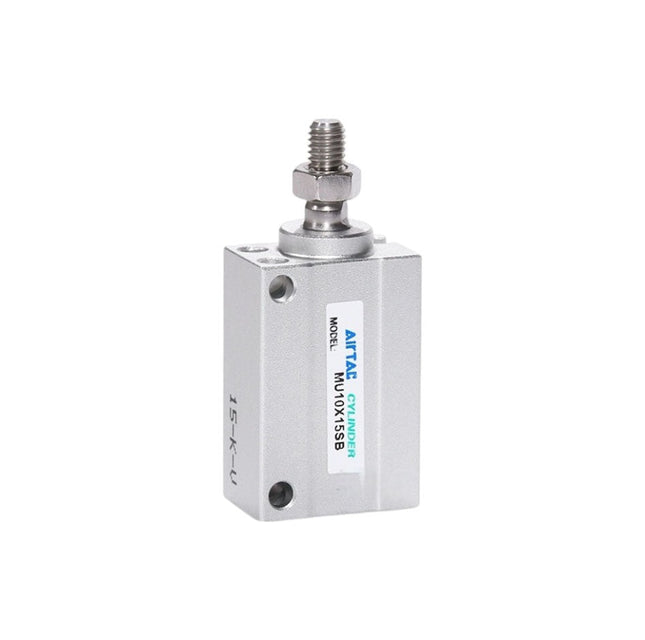

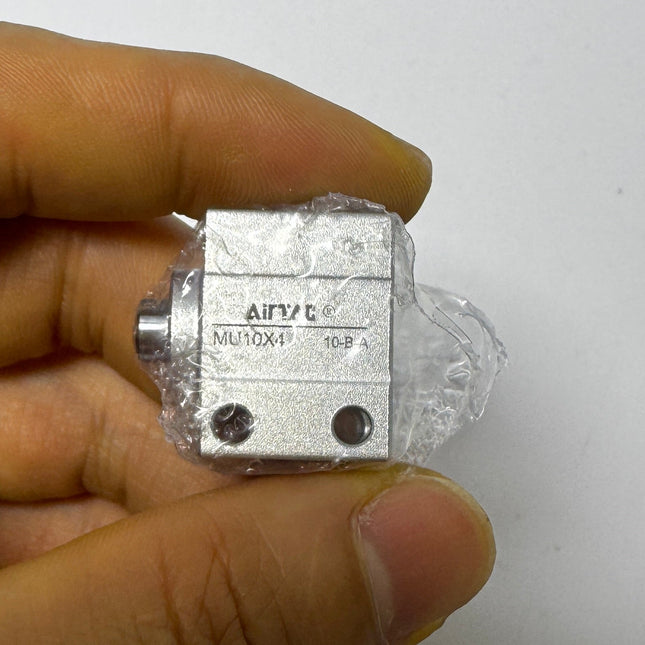

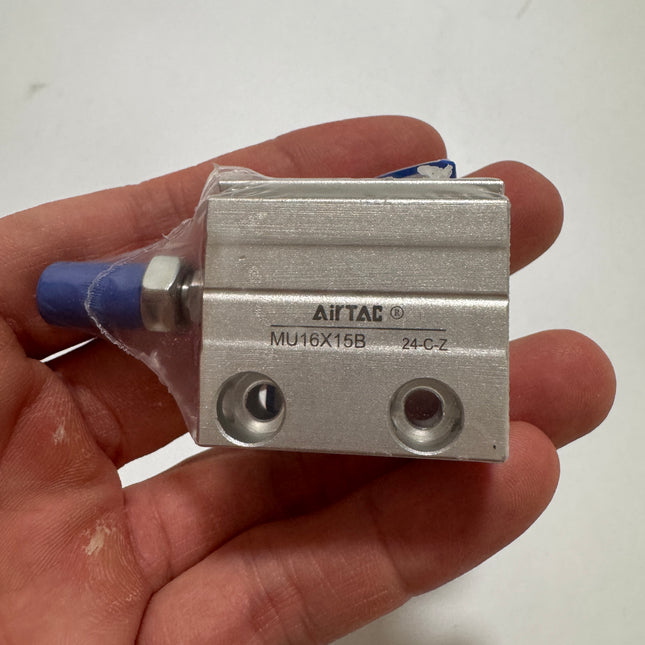

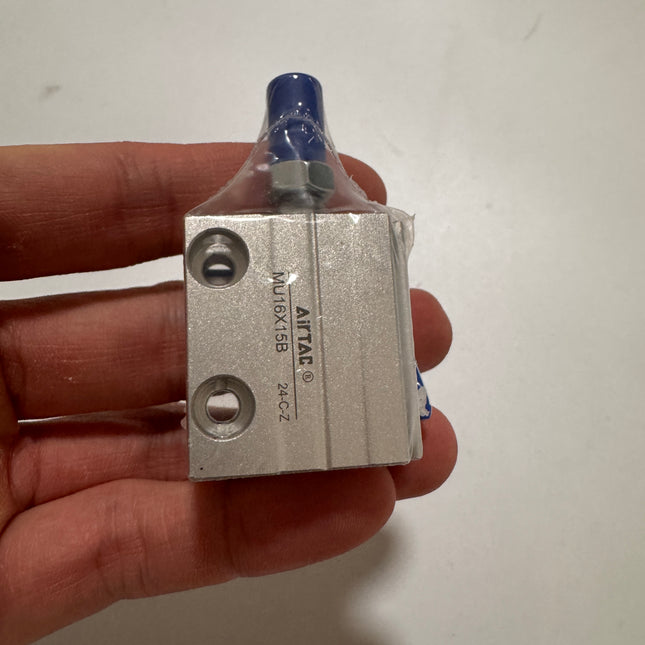

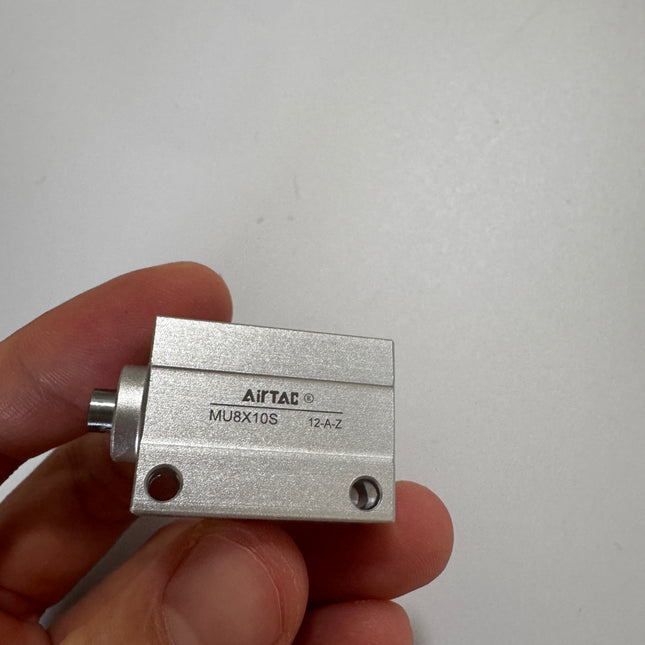

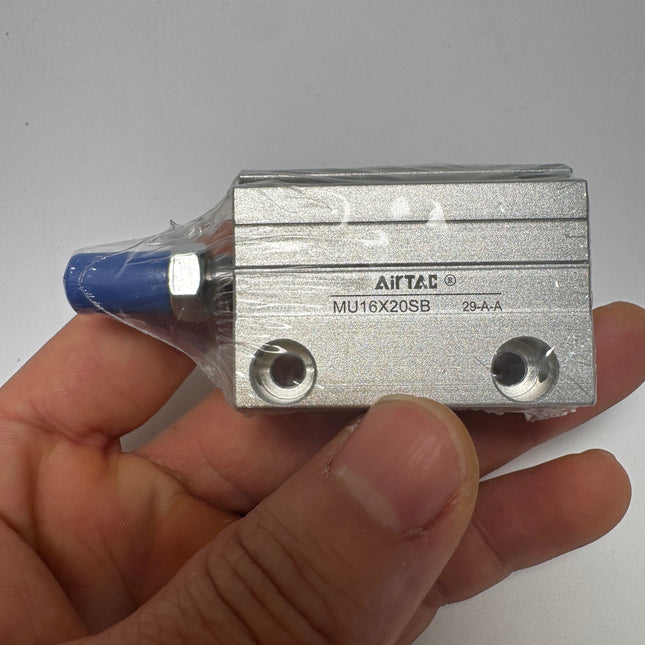

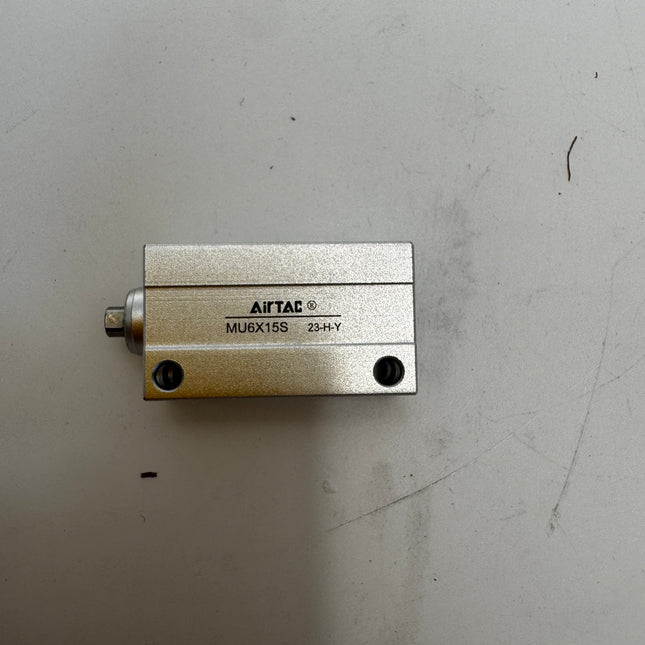

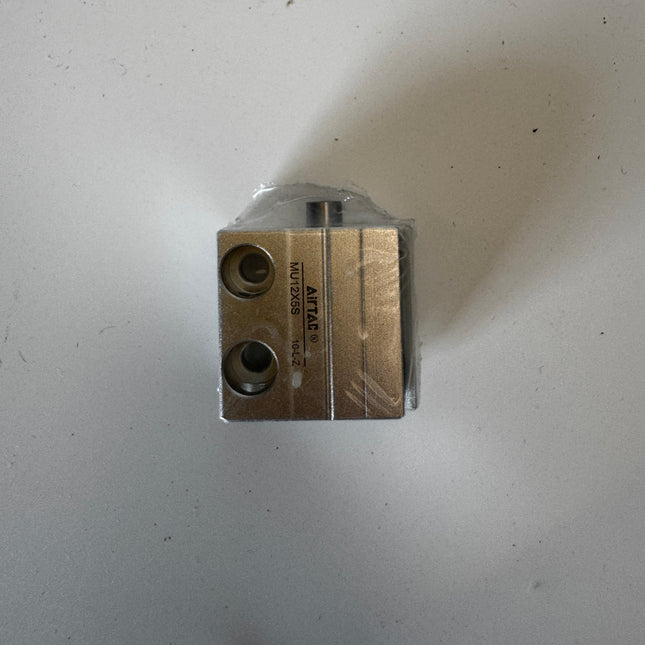

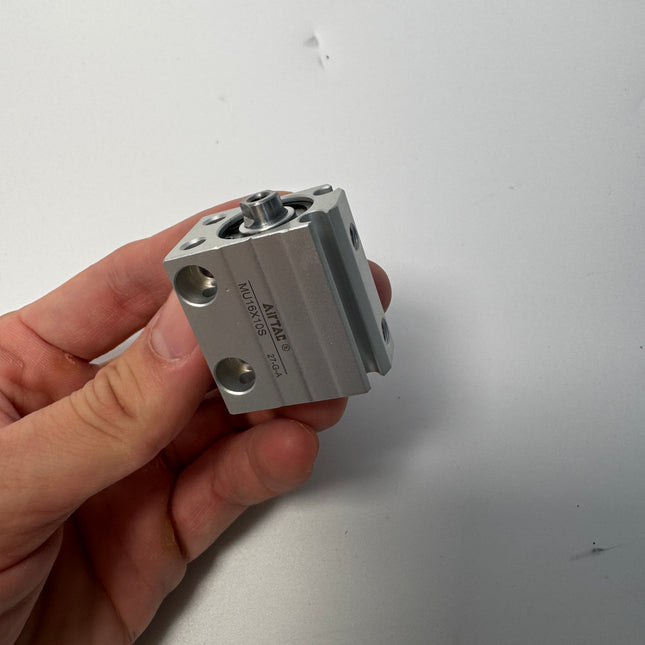

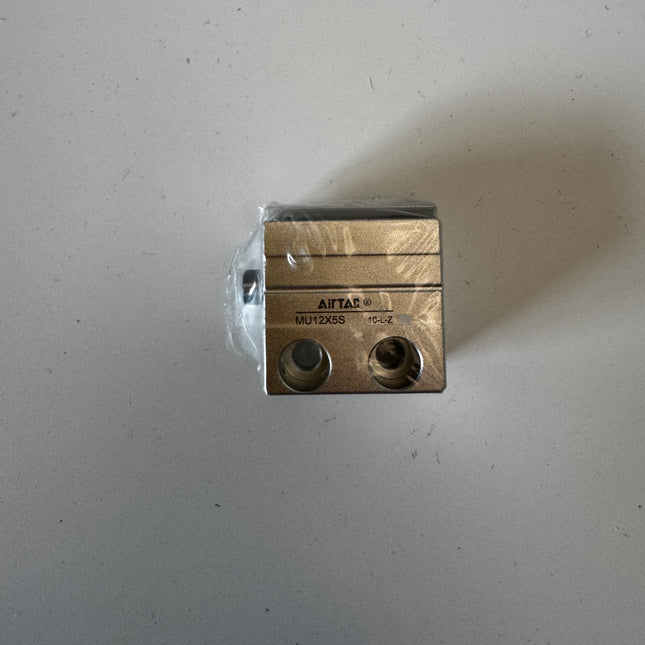

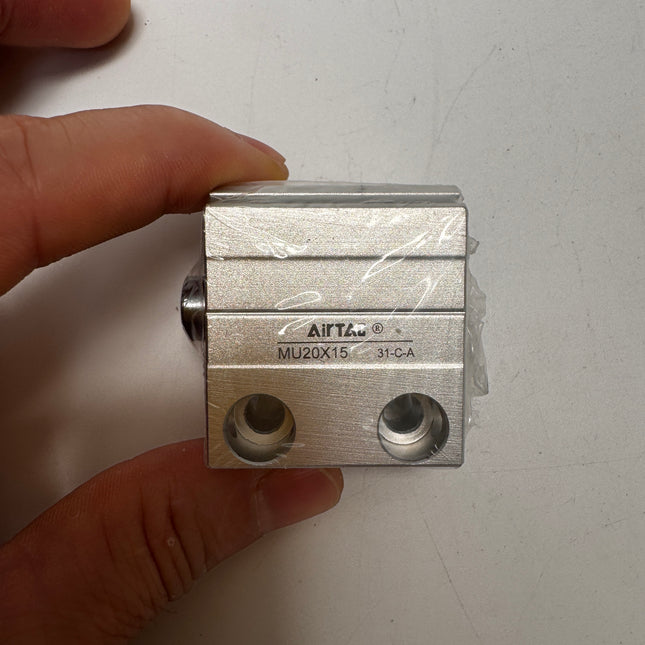

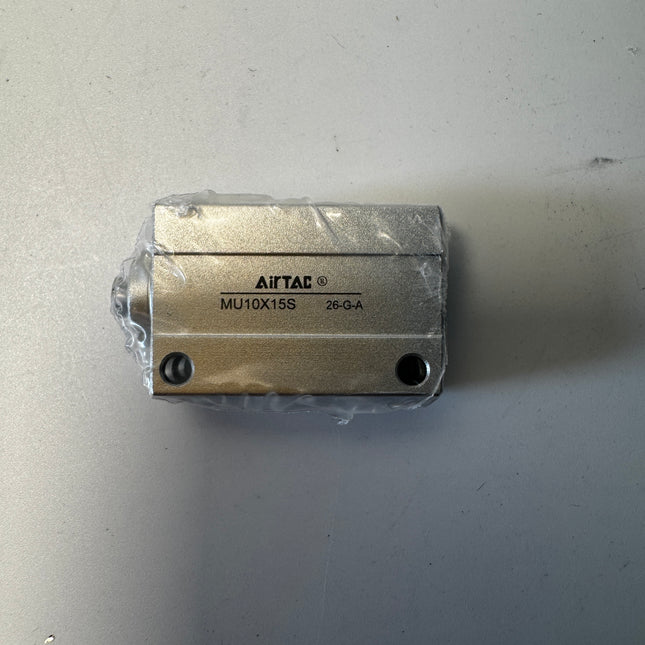

MU Series Small Free-mount Cylinder
Product Features
- 1. Executing JIS standard.
- 2. The body can be fixed from four directions, making installation simple and convenient.
- 3. Multiple cylinders can be fixed side-by-side, effectively saving installation space.
- 4. The front end of the cylinder has a guide boss for precise installation positioning.
- 5. The inner diameter is precision processed and hard anodized, offering excellent abrasion resistance and durability.
- 6. Optional magnet available (for bores 10-20), with position sensing function.
- 7. The cylinder body has sensor grooves, making sensor installation convenient.
- 8. The piston seal adopts a heterogeneous two-way seal structure, which is compact and has an oil storage function.
Specifications
| Bore Size (mm) | 4 | 6 | 8 | 10 | 12 | 16 | 20 |
|---|---|---|---|---|---|---|---|
| Acting Type |
MU: Double Acting MSU: Single Acting Push |
||||||
| Fluid | Air (filtered to 40μm or better) | ||||||
| Operating Pressure |
Double Acting: 0.15~0.7MPa (22~100psi) Single Acting: 0.3~0.7MPa (44~100psi) |
Double Acting: 0.2~0.7MPa (29~100psi) Single Acting: 0.2~0.7MPa (29~100psi) |
|||||
| Proof Pressure | 1.25MPa (175psi) | ||||||
| Temperature | -20 ~ 70 °C | ||||||
| Speed Range | Double Acting: 30~500 mm/s | Single Acting: 50~500 mm/s | ||||||
| Stroke Tolerance | +1.0 / 0 | ||||||
| Cushion Type | None | Bumper (Pad Cushion) | |||||
| Port Size [Note 1] | M3 × 0.5 | M5 × 0.8 | |||||
Stroke Table
| Bore (mm) | Acting Type | Standard Stroke (mm) | Max. Stroke |
|---|---|---|---|
| 4 | Double | 4, 6, 8, 10, 15, 20 | 20 |
| Single | 4, 6 | 6 | |
| 6 | Double | 4, 6, 8, 10, 15, 20, 25, 30 | 30 |
| Single | 4, 6, 8 | 8 | |
| 8 | Double | 4, 6, 8, 10, 15, 20, 25, 30 | 30 |
| Single | 4, 6, 8, 10 | 10 | |
| 10 | Double | 4, 6, 8, 10, 15, 20, 25, 30 | 30 |
| Single | 4, 6, 8, 10 | 10 | |
| 12 | Double | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 | 50 |
| Single | 5, 10 | 10 | |
| 16 | Double | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 | 50 |
| Single | 5, 10 | 10 | |
| 20 | Double | 5, 10, 15, 20, 25, 30, 35, 40, 45, 50 | 50 |
| Single | 5, 10 | 10 |
Note:
1. Non-standard strokes available upon request.
2. For non-standard strokes within max range, body dimensions are the same as the next standard stroke level.
2. For non-standard strokes within max range, body dimensions are the same as the next standard stroke level.
Ordering Code Guide
MU 12 x 10 S - □
| No. | Item | Applicable Bore/Model | Description |
|---|---|---|---|
| 1 | Model | All |
MU: Small Free-mount Cylinder (Double Acting) MSU: Small Free-mount Cylinder (Single Acting Push) |
| 2 | Mounting Style |
MU (Double Acting) MSU (Single Acting) |
No Code: Standard Free Mount
Blank: Lateral Mounting (Side) R: Axial Mounting |
| 3 | Bore Size | All | 4, 6, 8, 10, 12, 16, 20 (mm) |
| 4 | Stroke | All | Refer to Stroke Table |
| 5 | Magnet |
Bore 4 Bore 6, 8, 10, 12, 16, 20 |
No Code: No Magnet (Not available)
Blank: No Magnet S: With Magnet |
| 6 | Rod Thread |
Bore 4 Bore 6, 8, 10, 12, 16, 20 |
Blank: No Thread B: External Thread (Male) Blank: Internal Thread (Female) B: External Thread (Male) |
[Note]
Single acting push type: Piston rod extends when air supplied; retracts by spring force.
