MK Series Multi-position Fixed Cylinder

•

  View options

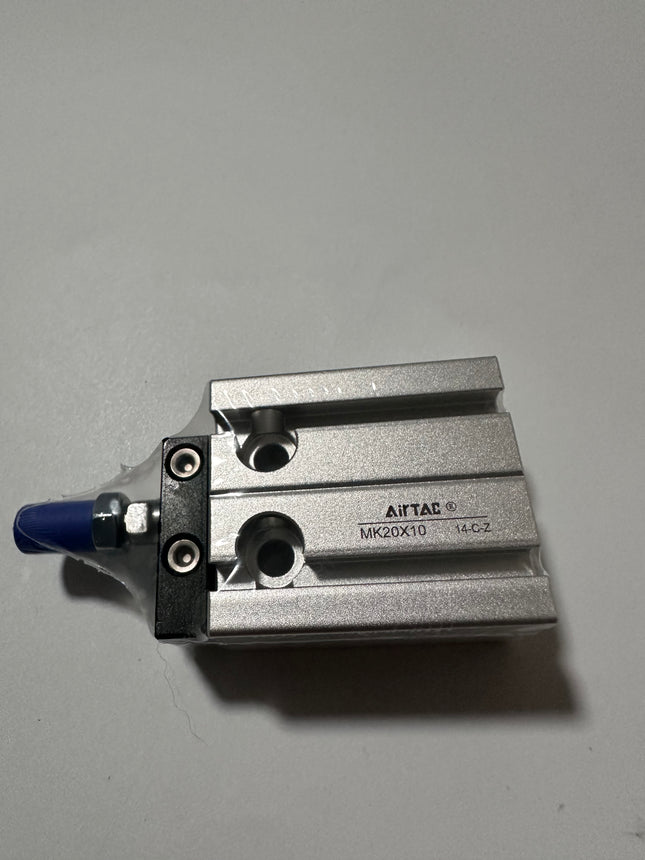

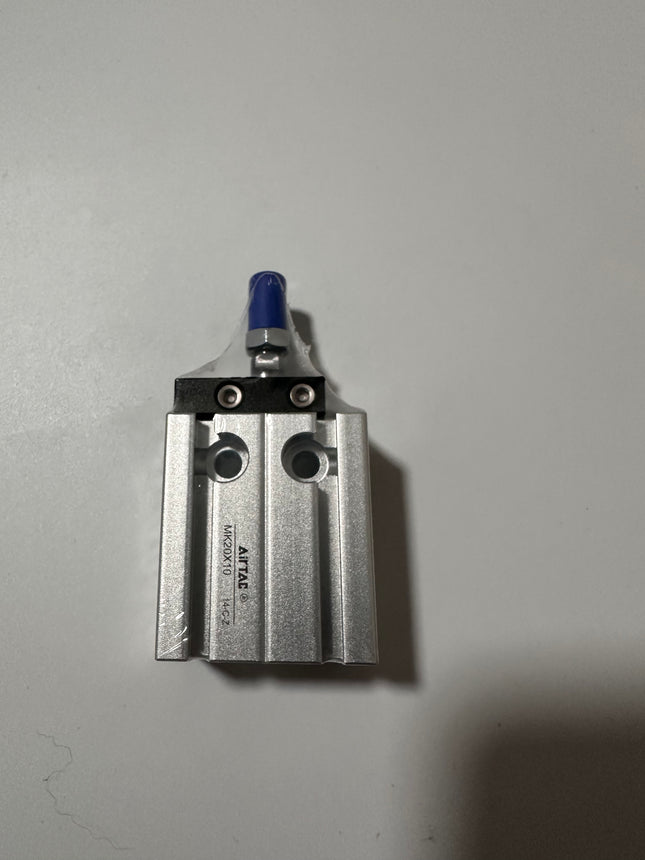

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK20X10

  Specifications: MK20X10 is an AirTAC double-acting cylinder with a guided, non-rotating output with a 20 mm bore, 10 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 20 20 mm bore X10 10 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection M5 × 0.8 A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 65 mm AC 36 mm B 26 mm C 40 mm D 8 mm DA 29 mm E M6 × 1.0 EA 12 mm EB 14 mm F 10 mm FA 5 mm G 8 mm GA 20 mm GB 16 mm GC 32 mm GD 19.5 mm H 6 mm J 9.5 mm JA 8 mm JB 16 mm JC 9 mm K 5.5 mm KB 16 mm L M5 × 0.8 LA 7.5 mm LB 30 mm P M5 × 0.8 PA 19.3 mm PB 9.5 mm PC 9 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 10 mm Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Magnetic-option component; not fitted in a non-magnetic configuration 11 Magnet washer Magnetic-option component; not fitted in a non-magnetic configuration 12 Magnet Magnetic-option component; not fitted in a non-magnetic configuration 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 20 mm Effective flow area at the reference speed .8 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, choose a straight fitting or an A-type controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for US98A/UE95A are 15/12 mm.Weight Reference Catalog reference weight: 119 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $45.48

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK16X10

  Specifications: MK16X10 is an AirTAC double-acting cylinder with a guided, non-rotating output with a 16 mm bore, 10 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 16 16 mm bore X10 10 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection M5 × 0.8 A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 56 mm AC 30 mm B 20 mm C 32 mm D 6 mm DA 26 mm E M5 × 0.8 EA 11 mm EB 12.5 mm F 8 mm FA 4 mm G 8 mm GA 17 mm GB 13 mm GC 26.5 mm GD 15.6 mm H 5 mm J 7.5 mm JA 6.5 mm JB 14 mm JC 7 mm K 4.5 mm KB 12 mm L M4 × 0.7 LA 5 mm LB 25 mm P M5 × 0.8 PA 14.5 mm PB 10 mm PC 3 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 10 mm Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Magnetic-option component; not fitted in a non-magnetic configuration 11 Magnet washer Magnetic-option component; not fitted in a non-magnetic configuration 12 Magnet Magnetic-option component; not fitted in a non-magnetic configuration 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 16 mm Effective flow area at the reference speed .5 mm² Tube outside / inside diameter 4 / 2.5 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 4 mm OD tubing in the circuit reference in this description, choose a straight fitting or an A-type controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. PC4M5: M5×0.8 male × 4 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL4M5A-M: M5×0.8 male × 4 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC401: PT1/8 male × 4 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 4 mm OD tubing US98A040025100MBU: polyester polyurethane; 4 mm OD × 2.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A040025100MBU: polyether polyurethane; 4 mm OD × 2.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 4 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for US98A/UE95A are 10/8 mm.Weight Reference Catalog reference weight: 64.2 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $39.65

  View options

•

  View options

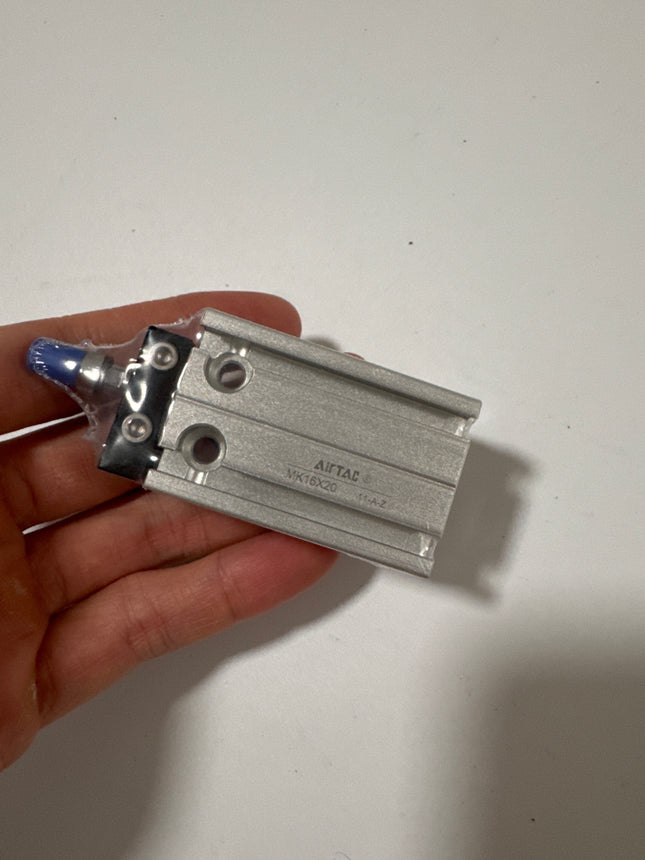

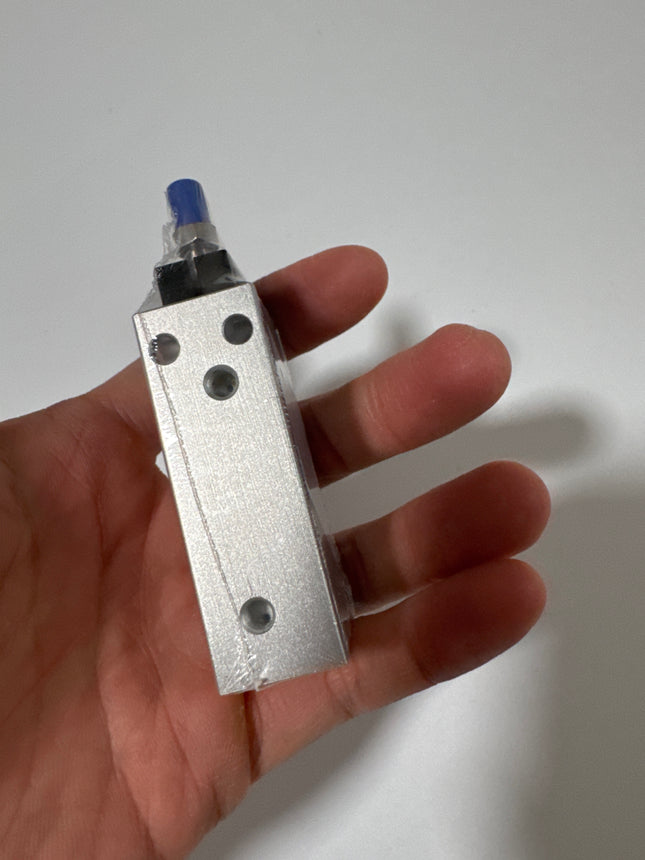

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK16X20

  Specifications: MK16X20 is an AirTAC double-acting cylinder with a guided, non-rotating output with a 16 mm bore, 20 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 16 16 mm bore X20 20 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection M5 × 0.8 A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 56 mm AC 30 mm B 20 mm C 32 mm D 6 mm DA 26 mm E M5 × 0.8 EA 11 mm EB 12.5 mm F 8 mm FA 4 mm G 8 mm GA 17 mm GB 13 mm GC 26.5 mm GD 15.6 mm H 5 mm J 7.5 mm JA 6.5 mm JB 14 mm JC 7 mm K 4.5 mm KB 12 mm L M4 × 0.7 LA 5 mm LB 25 mm P M5 × 0.8 PA 14.5 mm PB 10 mm PC 3 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 20 mm Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Magnetic-option component; not fitted in a non-magnetic configuration 11 Magnet washer Magnetic-option component; not fitted in a non-magnetic configuration 12 Magnet Magnetic-option component; not fitted in a non-magnetic configuration 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 16 mm Effective flow area at the reference speed .5 mm² Tube outside / inside diameter 4 / 2.5 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 4 mm OD tubing in the circuit reference in this description, choose a straight fitting or an A-type controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. PC4M5: M5×0.8 male × 4 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL4M5A-M: M5×0.8 male × 4 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC401: PT1/8 male × 4 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 4 mm OD tubing US98A040025100MBU: polyester polyurethane; 4 mm OD × 2.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A040025100MBU: polyether polyurethane; 4 mm OD × 2.5 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 4 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for US98A/UE95A are 10/8 mm.Weight Reference Catalog reference weight: 75.2 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $44.17

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK20X10S

  Specifications: MK20X10S is an AirTAC double-acting cylinder with a guided, non-rotating output with a 20 mm bore, 10 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 20 20 mm bore X10 10 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection M5 × 0.8 A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 75 mm AC 46 mm B 26 mm C 40 mm D 8 mm DA 29 mm E M6 × 1.0 EA 12 mm EB 14 mm F 10 mm FA 5 mm G 8 mm GA 20 mm GB 16 mm GC 32 mm GD 19.5 mm H 6 mm J 9.5 mm JA 8 mm JB 16 mm JC 9 mm K 5.5 mm KB 16 mm L M5 × 0.8 LA 7.5 mm LB 30 mm P M5 × 0.8 PA 19.3 mm PB 9.5 mm PC 9 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 10 mm Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 20 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 20 mm Effective flow area at the reference speed .8 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, choose a straight fitting or an A-type controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for US98A/UE95A are 15/12 mm.Weight Reference Catalog reference weight: 150 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $54.99

  View options

•

  View options

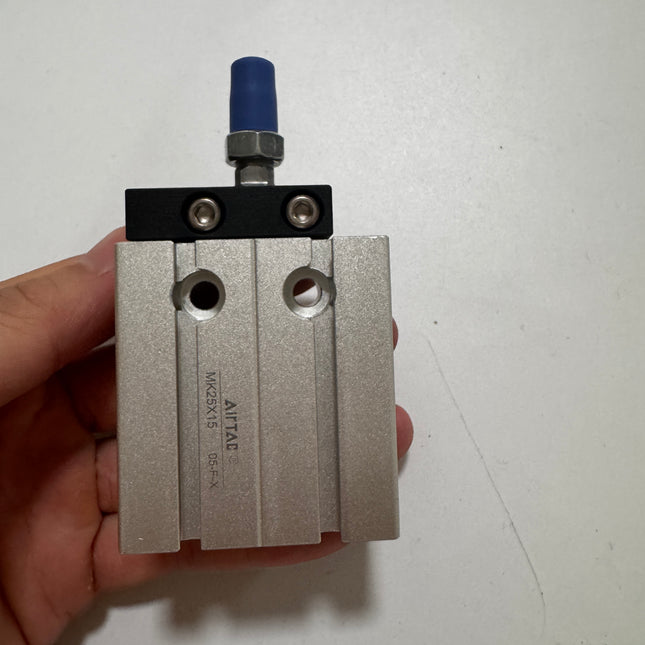

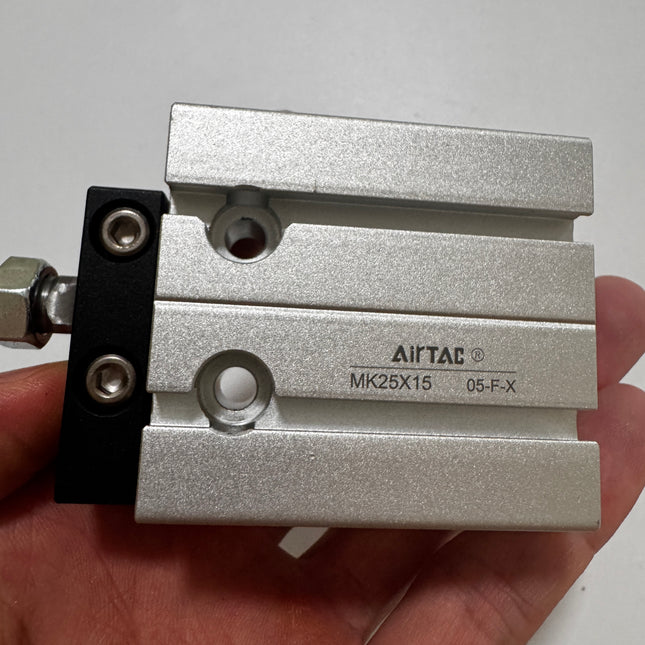

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK25X15

  Specifications: MK25X15 is an AirTAC double-acting cylinder with a guided, non-rotating output with a 25 mm bore, 15 mm stroke, no magnetic option in the standard suffix position, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 25 25 mm bore X15 15 mm nominal stroke Blank magnetic position No magnetic piston selected by the standard order-code position Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection M5 × 0.8 A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 73 mm AC 40 mm B 32 mm C 50 mm D 10 mm DA 33 mm E M8 × 1.25 EA 15.5 mm EB 18 mm F 12 mm FA 6 mm G 10 mm GA 22 mm GB 19 mm GC 40 mm GD 24.5 mm H 8 mm J 9.5 mm JA 9 mm JB 20 mm JC 10 mm K 5.5 mm KB 20 mm L M5 × 0.8 LA 8 mm LB 38 mm P M5 × 0.8 PA 20.5 mm PB 8.5 mm PC 12 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 15 mm Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Magnetic-option component; not fitted in a non-magnetic configuration 11 Magnet washer Magnetic-option component; not fitted in a non-magnetic configuration 12 Magnet Magnetic-option component; not fitted in a non-magnetic configuration 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. Magnetic switch condition This code does not select a magnetic piston. A magnetic switch cannot provide piston-position sensing on a non-magnetic cylinder. Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 25 mm Effective flow area at the reference speed 1.3 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, choose a straight fitting or an A-type controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at either cylinder port or the selected valve A/B work ports; no speed adjustment PTL6M5A-M: M5×0.8 male × 6 mm tube OD; mini A-typeCylinder-port meter-out speed control instead of the straight fitting PC601: PT1/8 male × 6 mm tube ODOnly for the separate 4A air-pilot port when its pilot line uses 6 mm OD tubing US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.05 N·m, not thread-tightening torque. Seat the M5 sealing gaskets correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for US98A/UE95A are 15/12 mm.Weight Reference Catalog reference weight: 243 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $59.73

  View options

•

  View options

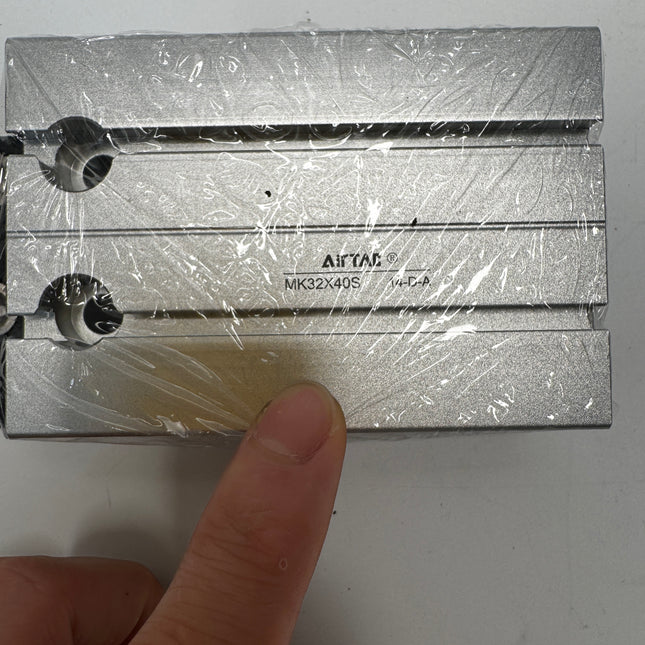

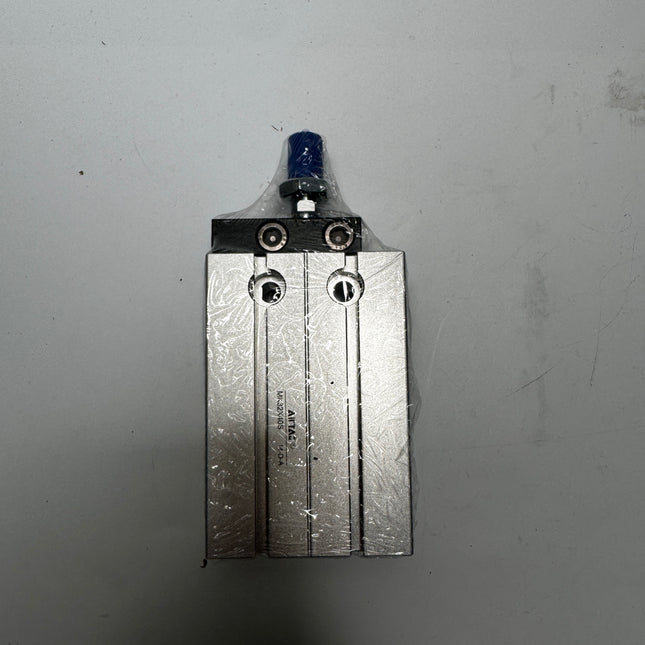

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X40S

  Specifications: MK32X40S is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 40 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X40 40 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected Blank pipe-thread suffix Metric connection at the small bores; PT is the standard pipe-thread option where a pipe port is used Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 40 mm Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter. Optional air connections, tubing and controls For the 6 mm OD tubing in the circuit reference in this description, choose a straight fitting or an A-type controller at each cylinder port. Use straight fittings at the valve A/B ports and keep the two chamber lines separate. PC601: PT1/8 male × 6 mm tube ODStraight connection at the cylinder port; no speed adjustment; also connects the separate 4A pilot ports if their lines use the same tube OD PTL601A: PT1/8 male × 6 mm tube OD; A-typeCylinder-port meter-out speed control instead of the straight fitting PC6M5: M5×0.8 male × 6 mm tube ODStraight connection at the selected valve A/B work ports US98A060040100MBU: polyester polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length UE95A060040100MBU: polyether polyurethane; 6 mm OD × 4 mm ID; blue, 100 m rollOptional straight tubing example; cut to the required installed length 5V110M5A050, 5V110M5A200, 5V120M5A050, 5V120M5A200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version220 V AC solenoid direction control for extension and retraction 5V110M5B050, 5V110M5B200, 5V120M5B050, 5V120M5B200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V DC solenoid direction control for extension and retraction 5V110M5C050, 5V110M5C200, 5V120M5C050, 5V120M5C200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version110 V AC solenoid direction control for extension and retraction 5V110M5E050, 5V110M5E200, 5V120M5E050, 5V120M5E200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version24 V AC solenoid direction control for extension and retraction 5V110M5F050, 5V110M5F200, 5V120M5F050, 5V120M5F200: M5×0.8 female main ports; M5×0.8 female exhaust ports; terminal-cable version12 V DC solenoid direction control for extension and retraction The A-type controller restricts flow from the cylinder port to the tube; reverse flow is free. Recommended cap-rotation torque is 0.08 N·m, not thread-tightening torque. Seal tapered PT connections correctly. Seat the M5 valve connector’s sealing gasket correctly. The listed gray fittings and controllers accept soft nylon or polyurethane tubing and are rated for 0–1 MPa and −20 to +70°C. Check tube insertion, wrench clearance and every connected part’s limits. The 5V110 codes are single-solenoid spring-return valves; 5V120 codes are double-solenoid valves with memory. The final 050 or 200 selects a 0.5 m or 2 m terminal cable as part of the complete valve configuration. AC versions use 2.0 VA with +15%/−10% voltage tolerance; DC versions use 1.6 W with ±10% tolerance. These terminal-cable valves have dust protection; they are not DIN-plug versions. The existing 4A110M5 and 4A120M5 pneumatic alternatives need one or two external pilot signals respectively through separate PT1/8 pilot ports. The listed pilot connection assumes 6 mm OD pilot tubing; match both ends of the pilot line and the actual control signal. Seal the tapered PT pilot threads with suitable thread sealant. Use only the chosen electrical or pneumatic control scheme. With either listed valve family, the working circuit is limited to 0.15–0.8 MPa and −20 to +70°C, subject to any lower component limit. Use the existing BSLM5 reference at the selected M5×0.8 valve exhaust ports R/S. Keep exhaust paths open; do not fit silencers to the cylinder working ports. Silencer limits are 0–1 MPa and −20 to +70°C. The blue 100 m tube codes are purchasable packaging examples, not the required installed tube length. US98A is polyester polyurethane (−20 to +70°C); UE95A is polyether polyurethane (−40 to +70°C). Both listed standard sizes are rated to 1 MPa at 23°C; apply temperature derating and the lowest limit of the whole circuit. Avoid solvents, corrosive media and prolonged direct sunlight. Minimum bend radii for US98A/UE95A are 15/12 mm.Weight Reference Catalog reference weight: 615 g. Calculated from the catalog base weight and stroke increment for this bore/configuration; it is a reference, not a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $116.01

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X59ST

  Specifications: MK32X59ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 59 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X59 59 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 59 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 59 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 717.6 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $138.21

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X58ST

  Specifications: MK32X58ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 58 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X58 58 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 58 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 58 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 712.2 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $136.84

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X55ST

  Specifications: MK32X55ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 55 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X55 55 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 55 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 55 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 696 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $132.73

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X57ST

  Specifications: MK32X57ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 57 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X57 57 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 57 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 57 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 706.8 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $135.47

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X56ST

  Specifications: MK32X56ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 56 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X56 56 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 56 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 56 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 701.4 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $134.10

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X54ST

  Specifications: MK32X54ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 54 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X54 54 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 54 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 54 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 690.6 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $131.36

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X53ST

  Specifications: MK32X53ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 53 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X53 53 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 53 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 53 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 685.2 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $129.99

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X47ST

  Specifications: MK32X47ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 47 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X47 47 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 47 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 47 mm For this intermediate stroke, the table uses the next larger standard body: 50 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 652.8 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $125.60

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X46ST

  Specifications: MK32X46ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 46 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X46 46 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 46 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 46 mm For this intermediate stroke, the table uses the next larger standard body: 50 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 647.4 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $124.23

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X36ST

  Specifications: MK32X36ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 36 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X36 36 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 36 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 36 mm For this intermediate stroke, the table uses the next larger standard body: 40 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 593.4 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $114.89

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X51ST

  Specifications: MK32X51ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 51 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X51 51 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 51 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 51 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 674.4 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $127.25

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X49ST

  Specifications: MK32X49ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 49 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X49 49 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 49 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 49 mm For this intermediate stroke, the table uses the next larger standard body: 50 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 663.6 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $128.34

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X52ST

  Specifications: MK32X52ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 52 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X52 52 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 52 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 52 mm For this intermediate stroke, the table uses the next larger standard body: 60 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 679.8 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $128.62

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X48ST

  Specifications: MK32X48ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 48 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X48 48 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 48 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 48 mm For this intermediate stroke, the table uses the next larger standard body: 50 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 658.2 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $126.97

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X37ST

  Specifications: MK32X37ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 37 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X37 37 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 37 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 37 mm For this intermediate stroke, the table uses the next larger standard body: 40 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 598.8 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $116.26

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X44ST

  Specifications: MK32X44ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 44 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X44 44 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 44 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 44 mm For this intermediate stroke, the table uses the next larger standard body: 50 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 636.6 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $121.49

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X38ST

  Specifications: MK32X38ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 38 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X38 38 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 38 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 38 mm For this intermediate stroke, the table uses the next larger standard body: 40 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 604.2 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $117.63

  View options

•

  View options

  Airtac MK series: double-acting guided non-rotating compact cylinder - MK32X43ST

  Specifications: MK32X43ST is an AirTAC double-acting cylinder with a guided, non-rotating output with a 32 mm bore, 43 mm stroke, a magnetic piston, and male-threaded rod end. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning for This Model MK double-acting cylinder with a guided, non-rotating output 32 32 mm bore X43 43 mm nominal stroke S after stroke Magnetic piston selected Blank rod-end position male-threaded rod end Blank mounting suffix No optional mounting bracket selected T Suffix retained; not defined in this family's reviewed ordering chart Configuration Notes The specified 43 mm stroke is not a listed standard stroke. The catalog permits intermediate strokes using the next larger standard body envelope. The T suffix is retained in this product code, but this family's reviewed ordering chart does not define that suffix. The standard catalog port is given as a dimensional reference; the suffix does not prove a different connection standard. Technical Specifications Parameter Details Action double-acting cylinder with a guided, non-rotating output Working medium Air filtered through a 40 μm filter or finer Operating pressure 0.15–1 MPa Proof pressure 1.5 MPa; a proof-test rating, not the continuous operating limit Ambient and fluid temperature −20 to 70 °C Piston speed 30–500 mm/s Stroke tolerance +1.0 / 0 mm Cushioning Bumper Air connection PT 1/8 (standard catalog reference; suffix is not defined in the order chart) A heat-resistant seal option is described for applications up to 150 °C. It is a separately selected construction; the standard model described here retains the −20 to 70 °C rating. Product Features The compact body supports mounting from several faces and parallel installation. A fixed output plate and guide rod restrain piston-rod rotation. The guide is not a substitute for checking side load and alignment. Dimensions for This Bore and Configuration Dimensions are in millimeters unless a thread, angle or tolerance is stated. Letter labels follow the 158–163 printed-page drawings in the 2022 Chinese catalog. A base letter value is not automatically an overall length; use its stated stroke relationship. Parameter Details A 94 mm AC 52 mm B 40 mm C 62 mm D 12 mm DA 42 mm E M10 × 1.25 EA 19.5 mm EB 22 mm F 17 mm FA 6 mm G 12 mm GA 29 mm GB 24 mm GC 49 mm GD 30.5 mm H 10 mm J 11 mm JA 11.5 mm JB 24 mm JC 11 mm K 6.5 mm KB 24 mm L M6 × 1.0 LA 9 mm LB 48 mm P PT1/8 PA 22 mm PB 12.5 mm PC 13 mm Stroke-dependent Drawing Relationships Parameter Details A outline A + stroke AC outline AC + stroke Stroke used in the order code 43 mm For this intermediate stroke, the table uses the next larger standard body: 50 mm. Drawing formulas remain those of the catalog; do not infer a shorter body by interpolation. Construction and Materials Parameter Details 1 Hex nut Low-carbon steel or stainless steel 2 Piston rod Stainless steel or hard-chrome-plated S45C steel 3 Screw Alloy steel 4 Non-rotating plate Aluminum alloy 5 Guide bushing Brass 6 Guide rod Stainless steel 7 Rod seal NBR 8 Body Aluminum alloy 9 Bumper TPU 10 Magnet holder Aluminum alloy 11 Magnet washer NBR 12 Magnet Sintered NdFeB 13 Piston seal NBR 14 Wear ring Wear-resistant material 15 Piston Aluminum alloy 16 O-ring NBR 17 C-ring Spring steel 18 Rear cover Aluminum alloy 19 Bumper TPU Item numbers identify the catalog sectional drawing. They are component references, not spare-part order codes or package quantities. Matching Accessories and Mounting Parameter Details Cylinder mounting Use the mounting holes and dimensions shown for this body and action type. No unrelated compact-cylinder bracket is established as interchangeable by this chapter. DMSG / CMSG / EMSG G-profile magnetic switches; the 2022 selection matrix marks MK 32 mm bore; order separately Accessory codes are listed for selection. Optional brackets, rod joints and switches are separate items unless the selected code or the stated pin note expressly identifies them. Component item numbers do not specify purchase quantities. Stroke and Option Selection Parameter Details Standard strokes for this bore/action 5, 10, 15, 20, 25, 30, 40, 50, 60 mm Intermediate strokes The catalog allows a nonstandard intermediate stroke with the outer dimensions of the next larger standard stroke; this does not extend the maximum allowable stroke. Magnetic selection Select the magnetic option before ordering a position switch; electrical type, cable and connector are selected separately. Selection, Installation and Operation Select bore from the required thrust and available pressure; then check stroke, load direction, mounting, cushioning and sensing. The general catalog load-factor references are at most 0.7 for static/slow work and at most 0.5 for 50–500 mm/s motion. They do not replace the load and guide checks for this cylinder. Keep the piston rod and load aligned. Support lateral or eccentric loads with an appropriate guide; avoid applying bending force or tightening torque through the rod or guide. Use clean filtered air. Prevent freezing, water, dust and corrosive substances from entering the cylinder. The cylinder is prelubricated; if lubrication is introduced, use additive-free ISO VG32 oil and continue that lubrication. Start with the speed controller restricted, then open it gradually. Choose the circuit and flow-control direction for the action and load; a double-acting meter-out circuit is a general reference, not a guarantee of equal speed or precise stopping. Isolate the air and electrical supplies and release trapped pressure before maintenance. Check the mounting and retained parts before repressurizing. A C-ring must be fully seated before operation. Circuit Selection Reference at 500 mm/s Parameter Details Reference bore 32 mm Effective flow area at the reference speed 2.1 mm² Tube outside / inside diameter 6 / 4 mm Example speed controller PTLM5 Example silencer BSLM5 Example solenoid valves 5V110M5 / 5V120M5 Example air-piloted valves 4A110M5 / 4A120M5 The general 2022 selection table gives these circuit examples for this bore at a theoretical 500 mm/s reference speed. They are not included accessories, a guaranteed achieved speed, or a statement that every example screws directly into this cylinder. Match the actual port thread, action, tubing, valve capacity and operating conditions. Optional magnetic sensors and matching cables G-profile: CMSG — standard/A05 reed sensorsTwo-wire reed operation at 5–240 V AC/DC.CMSG-020, CMSG-030, CMSG-050, CMSG-100, CMSG-M08, CMSG-M08010, CMSG-M08020, CMSG-M08030, CMSG-M12, CMSG-M12010, CMSG-M12020, CMSG-M12030, A05-CMSG-020, A05-CMSG-030, A05-CMSG-050, A05-CMSG-100 G-profile: CMSG — high-temperature reed sensors (final -H suffix)Two-wire reed operation at 5–240 V AC/DC.CMSG-020-H, CMSG-030-H, CMSG-050-H, CMSG-100-H, CMSG-M08-H, CMSG-M08010-H, CMSG-M08020-H, CMSG-M08030-H, CMSG-M12-H, CMSG-M12010-H, CMSG-M12020-H, CMSG-M12030-H G-profile: DMSG — two-wire electronic sensorsTwo-wire electronic operation at 10–28 V DC.DMSG-020, DMSG-030, DMSG-050, DMSG-100, DMSG-M08, DMSG-M08010, DMSG-M08020, DMSG-M08030, DMSG-M12, DMSG-M12010, DMSG-M12020, DMSG-M12030, DMSG-020-W, DMSG-030-W, DMSG-050-W, DMSG-100-W, A05-DMSG-020, A05-DMSG-030, A05-DMSG-050, A05-DMSG-100, A06-DMSG-020, A06-DMSG-030, A06-DMSG-050, A06-DMSG-100 G-profile: DMSG — NPN electronic sensorsNPN three-wire output with a 5–30 V DC supply.DMSG-N020, DMSG-N030, DMSG-N050, DMSG-N100, DMSG-NM08, DMSG-NM08010, DMSG-NM08020, DMSG-NM08030, DMSG-NM12, DMSG-NM12010, DMSG-NM12020, DMSG-NM12030, DMSG-N020-W, DMSG-N030-W, DMSG-N050-W, DMSG-N100-W G-profile: DMSG — PNP electronic sensorsPNP three-wire output with a 5–30 V DC supply.DMSG-P020, DMSG-P030, DMSG-P050, DMSG-P100, DMSG-PM08, DMSG-PM08010, DMSG-PM08020, DMSG-PM08030, DMSG-PM12, DMSG-PM12010, DMSG-PM12020, DMSG-PM12030, DMSG-P020-W, DMSG-P030-W, DMSG-P050-W, DMSG-P100-W G-profile: EMSG — miniature two-wire sensorsMiniature two-wire electronic operation at 10–28 V DC.EMSG-020, EMSG-030, EMSG-050, EMSG-100, EMSG-M08, EMSG-M08010, EMSG-M08020, EMSG-M08030, EMSG-M12, EMSG-M12010, EMSG-M12020, EMSG-M12030, EMSG-020-W, EMSG-030-W, EMSG-050-W, EMSG-100-W, EMSG-M08-W, EMSG-M08010-W, EMSG-M08020-W, EMSG-M08030-W, EMSG-M12-W, EMSG-M12010-W, EMSG-M12020-W, EMSG-M12030-W, A05-EMSG-020, A05-EMSG-030, A05-EMSG-050, A05-EMSG-100, A06-EMSG-020, A06-EMSG-030, A06-EMSG-050, A06-EMSG-100 Two-wire mating cables (B)For a matching M8 or M12 two-wire male sensor; ordered separately.F-ECM08B020, F-ECM08B030, F-ECM08B050, F-ECM08B100, F-ECM12B020, F-ECM12B030, F-ECM12B050, F-ECM12B100 Three-wire mating cables (C)For a matching M8 or M12 NPN/PNP male sensor; ordered separately.F-ECM08C020, F-ECM08C030, F-ECM08C050, F-ECM08C100, F-ECM12C020, F-ECM12C030, F-ECM12C050, F-ECM12C100 Choose a G-profile sensor for the magnetic MK cylinder, then match its electrical circuit and cable. These separately ordered options are alternatives, not a required set. A final -H on a CMS order code selects the high-temperature reed version. CMSG reed sensors are limited to 100 mA, 10 W and 200 Hz, with no internal consumption or leakage. Standard/A05 voltage drop is at most 2.5 V at 100 mA DC; versions with the final -H suffix have no residual voltage or indicator LED. Two-wire DMSG and EMSG require 2.5–100 mA loads, up to 2.8 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 3 mA, 3.5 V and 0.06 mA respectively. NPN/PNP DMSG outputs are rated to 30 V / 200 mA, 6 W and 1,000 Hz. Maximum consumption, residual voltage and leakage are 5 mA, 0.7 V and 0.01 mA respectively. Check controller input compatibility as well as load ratings. Sensor and female-cable endings 020/030/050/100 mean 2/3/5/10 m. M08/M12 sensors have M8/M12 male connectors on 0.5 m leads; M08010/M08020/M08030 and M12010/M12020/M12030 give 1/2/3 m leads. Lead length does not depend on cylinder stroke. Match female cables to the male connector size and wire count; direct-lead sensors need none. B pinout: 1 brown (+), 4 blue (−), 3 unused. C pinout: 1 brown (+), 3 blue (−), 4 black output. Check the mating cable and connector ratings separately. A05 flex-resistant robotics cable and A06 oil-resistant flex cable have a recommended minimum bend radius of 19 mm. Both are two-wire direct-lead types, without M8/M12, NPN/PNP or W options; A05-CMSG also excludes the final high-temperature -H suffix. W means waterproof: DMSG-W has direct leads only; the listed EMSG-W options also include connectors. Sensor temperature limits are −10 to +70°C, or −10 to +125°C for CMSG versions with the final -H suffix. The standard MK cylinder remains limited to +70°C. Ordinary, high-temperature and A05 sensors are IP64; W/A06 are IP68. These ratings do not extend to the cylinder, connectors or whole assembly; use their common limits. CMS has no protection circuit; DMS/EMS have reverse-polarity and surge protection, and EMS also has temperature-overload protection. Reed, two-wire electronic, NPN and PNP circuits are not interchangeable. Complete and insulate wiring before powering it; keep it separate from power/high-voltage wiring. For direct leads, connect brown and blue in series with the load on two-wire types; do not connect the switch alone across the supply. On three-wire types, brown is positive supply, blue is negative and black is output; connect an NPN load to positive and a PNP load to negative. Install the selected G-profile sensor in its matching switch groove. Loosen the locking screw so it does not project below the sensor base. Slide the sensor to the required position, then tighten. Set detection at the actuation-range centre. Recommended sensor-screw torque is 0.15–0.20 N·m, never over 0.25 N·m; these are not cylinder mounting torques. Prevent impacts; keep cables free of strain and avoid unnecessary movement or bending. Observe the stated bend-radius guidance for flex-resistant versions, and inspect fixings, cables and indication. Keep ordinary sensors dry and do not immerse waterproof types for long periods. Avoid explosive gas, aggressive chemicals, sudden temperature changes, welding interference and magnetic debris. Provide suitable protection for A05 cables exposed to heat, dust, water or oil, and for A06 cables exposed to weld spatter.Weight Reference Estimated reference weight: 631.2 g. Based on the same family/bore catalog mass data and the stated configuration; it is not an AirTAC published weight for this exact variant or a measured weight. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog.

  Read more less

  $120.12

  View options
