Stainless Steel Mini Cylinder - MF Series

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF20X50SCA

  Specifications: MF20X50SCA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 20 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X50 Stroke: 50 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF20X50SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 50 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 20 mm bore, 50 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 124 mm AB 41 mm AC 62 mm B — body dimension in the drawing 25 mm R — outside-body dimension in the drawing 29 mm G 26 mm EA 16.5 mm Overall length from the printed formula 174 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF20LB F-MF20LB: foot bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20FA F-MF20FA: front flange for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20TC F-MF20TC: trunnion bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF20I F-MF20I: rod-end eye joint for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20Y F-MF20Y: rod-end fork joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MF series, 20 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 176 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $42.36

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X200SCA

  Specifications: MF40X200SCA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 200 mm stroke. PT1/4 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X200 Stroke: 200 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF40X200SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 200 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 200 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 165 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 365 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 1045 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $123.66

  View options

•

  View options

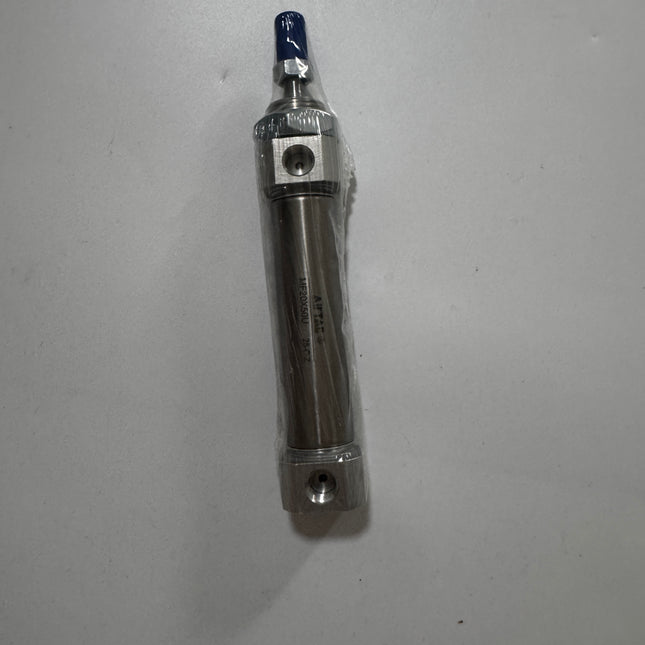

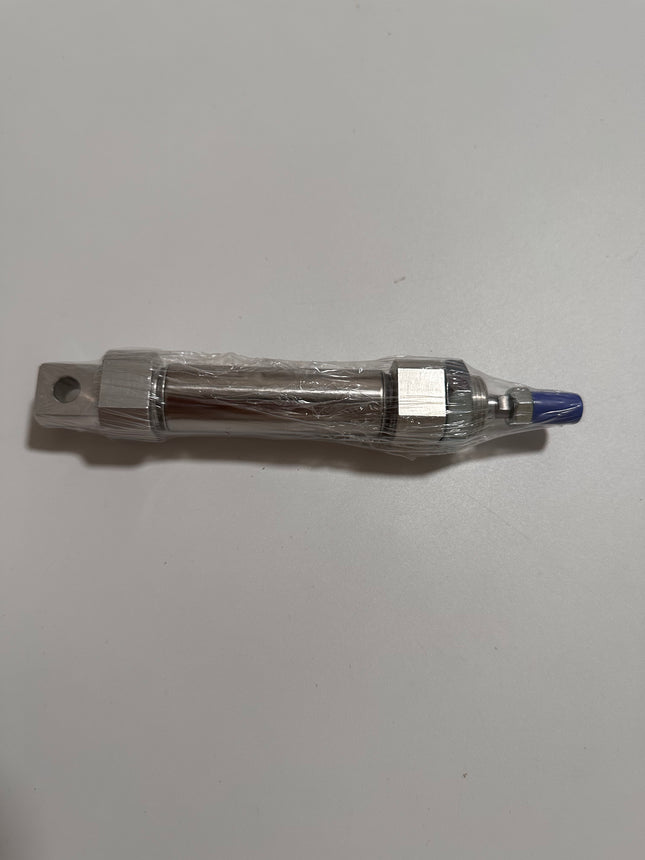

  Airtac MF series: double-acting stainless-steel mini cylinder - MF20X40CA

  Specifications: MF20X40CA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 20 mm bore and 40 mm stroke. PT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X40 Stroke: 40 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF20X40CA Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 40 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 20 mm bore, 40 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 124 mm AB 41 mm AC 62 mm B — body dimension in the drawing 25 mm R — outside-body dimension in the drawing 29 mm G 26 mm EA 16.5 mm Overall length from the printed formula 164 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF20LB F-MF20LB: foot bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20FA F-MF20FA: front flange for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20TC F-MF20TC: trunnion bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF20I F-MF20I: rod-end eye joint for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20Y F-MF20Y: rod-end fork joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MF series, 20 mm bore. Optional; not implied by this model code. This MF20X40CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 167 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $39.54

  View options

•

  View options

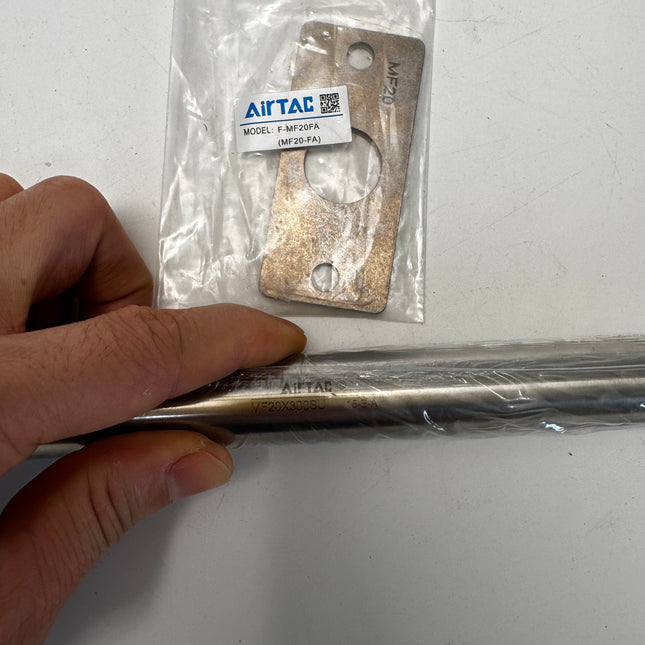

  Airtac MF series: double-acting stainless-steel mini cylinder - MF20X300SUFA

  Specifications: MF20X300SUFA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 20 mm bore and 300 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X300 Stroke: 300 mm S Magnetic piston U flat rear cover with radial air port FA front flange No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF20X300SUFA Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 300 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Mounting code in this model FA — front flange Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 20 mm bore, 300 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 103 mm AB 41 mm AC 62 mm B — body dimension in the drawing 25 mm R — outside-body dimension in the drawing 29 mm G 26 mm EA 16.5 mm Overall length from the printed formula 403 mm Drawing length relation A + stroke FA mounting reference from printed page 96; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details AA 60 mm B 75 mm C 34 mm D 21 mm DD 7 mm F 3.5 mm holes 2 holes For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF20LB F-MF20LB: foot bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20FA F-MF20FA: front flange for MF series, 20 mm bore. Matches the mounting code selected in this model. F-MF20TC F-MF20TC: trunnion bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF20I F-MF20I: rod-end eye joint for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20Y F-MF20Y: rod-end fork joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MF series, 20 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 423.1 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected FA mount adds an approximate 70.1 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $69.02

  View options

•

  View options

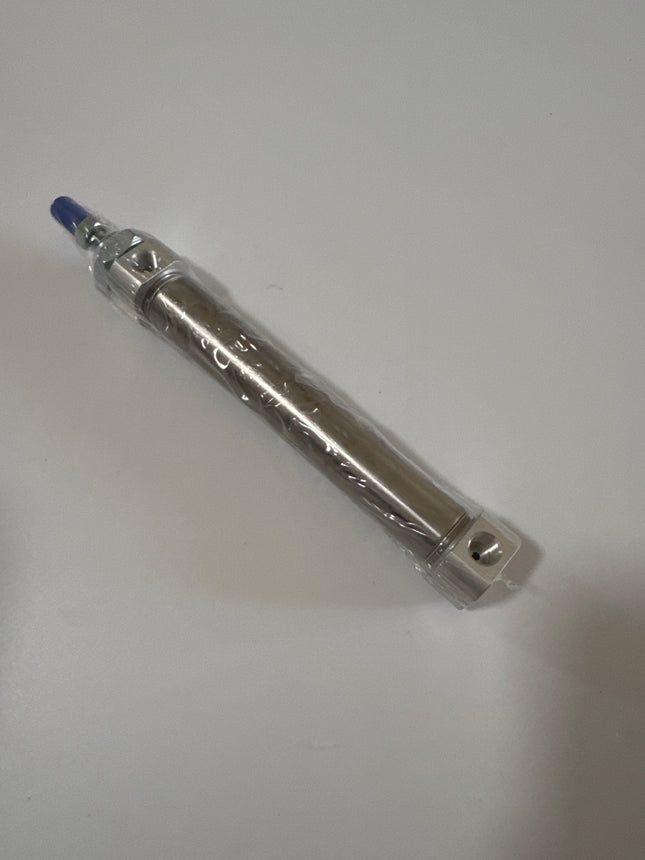

  Airtac MF series: double-acting stainless-steel mini cylinder - MF20X100SU

  Specifications: MF20X100SU — AirTAC MF stainless steel mini cylinder, double acting, single rod, 20 mm bore and 100 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X100 Stroke: 100 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF20X100SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 100 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 20 mm bore, 100 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 103 mm AB 41 mm AC 62 mm B — body dimension in the drawing 25 mm R — outside-body dimension in the drawing 29 mm G 26 mm EA 16.5 mm Overall length from the printed formula 203 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF20LB F-MF20LB: foot bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20FA F-MF20FA: front flange for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20TC F-MF20TC: trunnion bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF20I F-MF20I: rod-end eye joint for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20Y F-MF20Y: rod-end fork joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MF series, 20 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 203 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $46.36

  View options

•

  View options

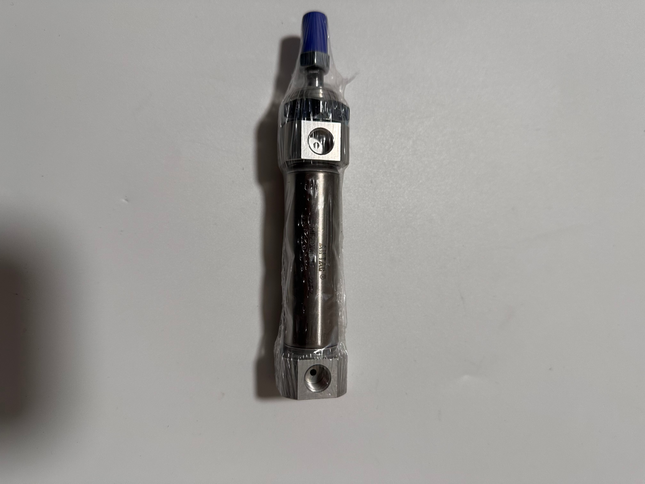

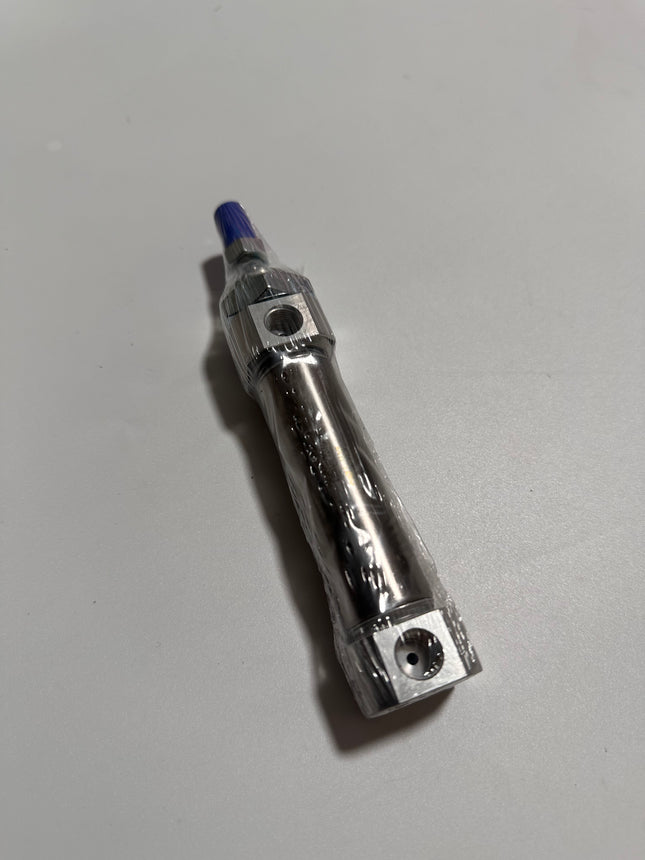

  Airtac MF series: double-acting stainless-steel mini cylinder - MF20X40SU

  Specifications: MF20X40SU — AirTAC MF stainless steel mini cylinder, double acting, single rod, 20 mm bore and 40 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X40 Stroke: 40 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF20X40SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 40 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 20 mm bore, 40 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 103 mm AB 41 mm AC 62 mm B — body dimension in the drawing 25 mm R — outside-body dimension in the drawing 29 mm G 26 mm EA 16.5 mm Overall length from the printed formula 143 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF20LB F-MF20LB: foot bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20FA F-MF20FA: front flange for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20TC F-MF20TC: trunnion bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF20I F-MF20I: rod-end eye joint for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20Y F-MF20Y: rod-end fork joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MF series, 20 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 158 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $41.65

  View options

•

  View options

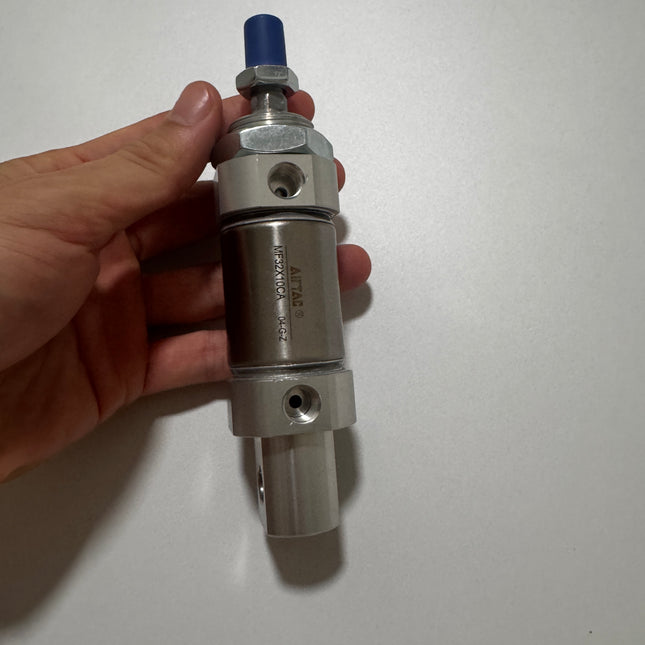

  Airtac MF series: double-acting stainless-steel mini cylinder - MF32X10CA

  Specifications: MF32X10CA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 32 mm bore and 10 mm stroke. PT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X10 Stroke: 10 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF32X10CA Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 10 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 32 mm bore, 10 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 136 mm AB 45 mm AC 64 mm B — body dimension in the drawing 34.5 mm R — outside-body dimension in the drawing 37.5 mm G 32 mm EA 20.5 mm Overall length from the printed formula 146 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF32LB F-MF32LB: foot bracket for MF series, 32 mm bore. Optional; not implied by this model code. F-MF32FA F-MF32FA: front flange for MF series, 32 mm bore. Optional; not implied by this model code. F-MF32TC F-MF32TC: trunnion bracket for MF series, 32 mm bore. Optional; not implied by this model code. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF25I F-MF25I: rod-end eye joint for MF series, 32 mm bore. Optional; not implied by this model code. F-MF25Y F-MF25Y: rod-end fork joint for MF series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MF series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MF series, 32 mm bore. Optional; not implied by this model code. This MF32X10CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 288 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $51.59

  View options

•

  View options

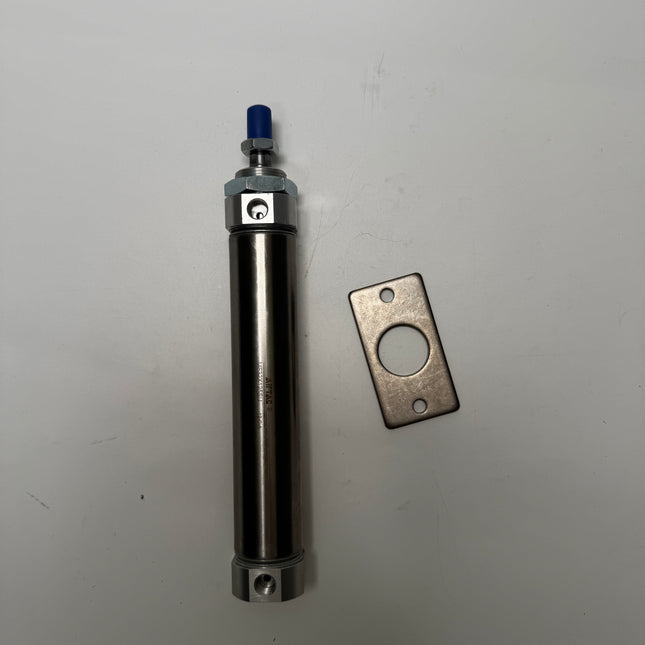

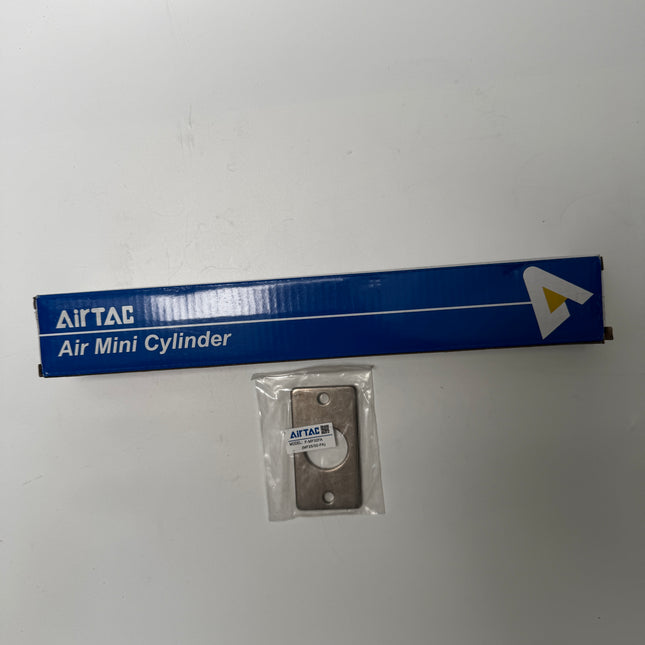

  Airtac MF series: double-acting stainless-steel mini cylinder - MF32X125SUFA

  Specifications: MF32X125SUFA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 32 mm bore and 125 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X125 Stroke: 125 mm S Magnetic piston U flat rear cover with radial air port FA front flange No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF32X125SUFA Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 125 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Mounting code in this model FA — front flange Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 32 mm bore, 125 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 110 mm AB 45 mm AC 64 mm B — body dimension in the drawing 34.5 mm R — outside-body dimension in the drawing 37.5 mm G 32 mm EA 20.5 mm Overall length from the printed formula 235 mm Drawing length relation A + stroke FA mounting reference from printed page 96; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details AA 60 mm B 75 mm C 40 mm D 27 mm DD 7 mm F 4 mm holes 2 holes For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF32LB F-MF32LB: foot bracket for MF series, 32 mm bore. Optional; not implied by this model code. F-MF32FA F-MF32FA: front flange for MF series, 32 mm bore. Matches the mounting code selected in this model. F-MF32TC F-MF32TC: trunnion bracket for MF series, 32 mm bore. Optional; not implied by this model code. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF25I F-MF25I: rod-end eye joint for MF series, 32 mm bore. Optional; not implied by this model code. F-MF25Y F-MF25Y: rod-end fork joint for MF series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MF series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MF series, 32 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS32. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 549.2 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected FA mount adds an approximate 94.2 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $77.16

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF32X100CATC

  Specifications: MF32X100CATC — AirTAC MF stainless steel mini cylinder, double acting, single rod, 32 mm bore and 100 mm stroke. PT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X100 Stroke: 100 mm No S code Nonmagnetic piston CA pivot-eye rear cover TC trunnion bracket No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF32X100CATC Product type stainless steel mini cylinder Operation double acting, single rod Bore 32 mm Stroke 100 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Mounting code in this model TC — trunnion bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 32 mm bore, 100 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 136 mm AB 45 mm AC 64 mm B — body dimension in the drawing 34.5 mm R — outside-body dimension in the drawing 37.5 mm G 32 mm EA 20.5 mm Overall length from the printed formula 236 mm Drawing length relation A + stroke TC mounting reference from printed page 96; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 10 mm D 27 mm E 40 mm F 60 mm G 9 mm H 12 mm J 40 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF32LB F-MF32LB: foot bracket for MF series, 32 mm bore. Optional; not implied by this model code. F-MF32FA F-MF32FA: front flange for MF series, 32 mm bore. Optional; not implied by this model code. F-MF32TC F-MF32TC: trunnion bracket for MF series, 32 mm bore. Matches the mounting code selected in this model. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF25I F-MF25I: rod-end eye joint for MF series, 32 mm bore. Optional; not implied by this model code. F-MF25Y F-MF25Y: rod-end fork joint for MF series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MF series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MF series, 32 mm bore. Optional; not implied by this model code. This MF32X100CATC has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 619.4 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected TC mount adds an approximate 188.4 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $85.49

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF25X300SCM

  Specifications: MF25X300SCM — AirTAC MF stainless steel mini cylinder, double acting, single rod, 25 mm bore and 300 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X300 Stroke: 300 mm S Magnetic piston CM round threaded rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF25X300SCM Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 300 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover round threaded rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 25 mm bore, 300 mm stroke and CM rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 120 mm AB 45 mm AC 62 mm B — body dimension in the drawing 30 mm R — outside-body dimension in the drawing 33.5 mm G 32 mm EA 20.5 mm Overall length from the printed formula 420 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF32LB F-MF32LB: foot bracket for MF series, 25 mm bore. Optional; not implied by this model code. F-MF32FA F-MF32FA: front flange for MF series, 25 mm bore. Optional; not implied by this model code. F-MF32TC F-MF32TC: trunnion bracket for MF series, 25 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF25I F-MF25I: rod-end eye joint for MF series, 25 mm bore. Optional; not implied by this model code. F-MF25Y F-MF25Y: rod-end fork joint for MF series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MF series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MF series, 25 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 517 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $84.61

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X100SU

  Specifications: MF40X100SU — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 100 mm stroke. PT1/4 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X100 Stroke: 100 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF40X100SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 100 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 100 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 138.5 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 238.5 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 772 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $96.37

  View options

•

  View options

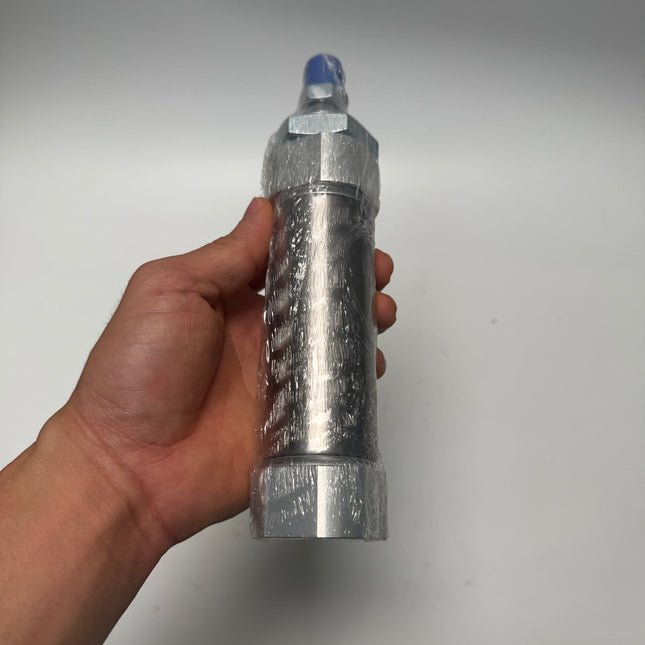

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X60SU

  Specifications: MF40X60SU — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 60 mm stroke. PT1/4 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X60 Stroke: 60 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF40X60SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 60 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 60 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 138.5 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 198.5 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 678 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $89.65

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X50SU

  Specifications: MF40X50SU — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 50 mm stroke. PT1/4 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X50 Stroke: 50 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF40X50SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 50 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 138.5 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 188.5 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 654 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $88.56

  View options

•

  View options

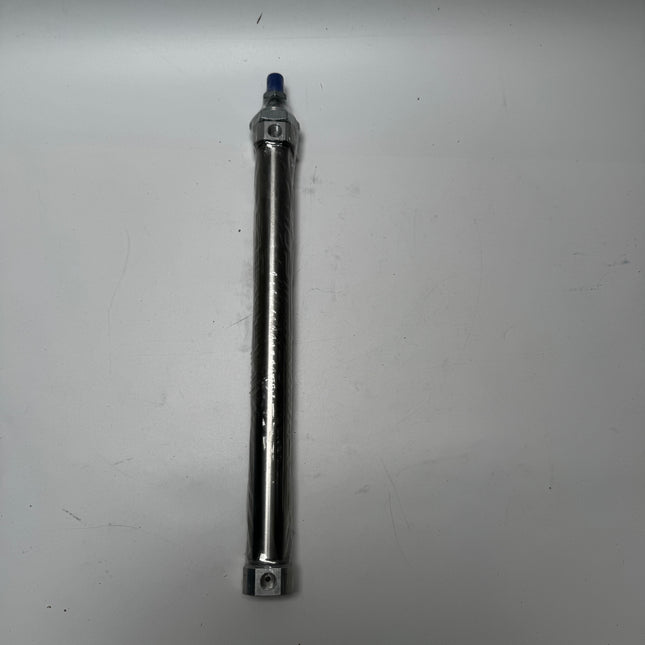

  Airtac MF series: double-acting stainless-steel mini cylinder - MF25X250SU

  Specifications: MF25X250SU — AirTAC MF stainless steel mini cylinder, double acting, single rod, 25 mm bore and 250 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X250 Stroke: 250 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF25X250SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 250 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 25 mm bore, 250 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 108 mm AB 45 mm AC 62 mm B — body dimension in the drawing 30 mm R — outside-body dimension in the drawing 33.5 mm G 32 mm EA 20.5 mm Overall length from the printed formula 358 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF32LB F-MF32LB: foot bracket for MF series, 25 mm bore. Optional; not implied by this model code. F-MF32FA F-MF32FA: front flange for MF series, 25 mm bore. Optional; not implied by this model code. F-MF32TC F-MF32TC: trunnion bracket for MF series, 25 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF25I F-MF25I: rod-end eye joint for MF series, 25 mm bore. Optional; not implied by this model code. F-MF25Y F-MF25Y: rod-end fork joint for MF series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MF series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MF series, 25 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 453 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $76.67

  View options

•

  View options

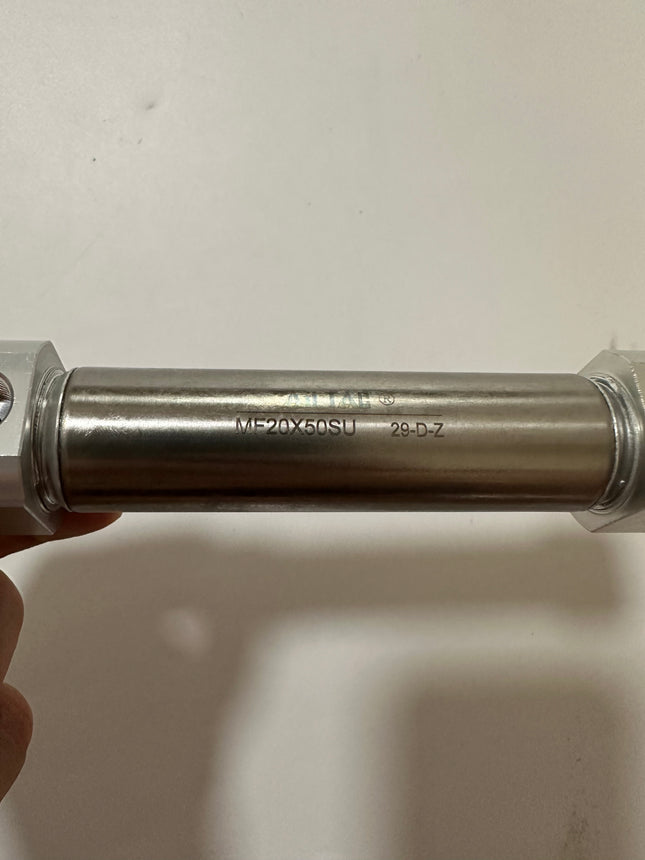

  Airtac MF series: double-acting stainless-steel mini cylinder - MF20X50SU

  Specifications: MF20X50SU — AirTAC MF stainless steel mini cylinder, double acting, single rod, 20 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X50 Stroke: 50 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF20X50SU Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 50 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 20 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 103 mm AB 41 mm AC 62 mm B — body dimension in the drawing 25 mm R — outside-body dimension in the drawing 29 mm G 26 mm EA 16.5 mm Overall length from the printed formula 153 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF20LB F-MF20LB: foot bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20FA F-MF20FA: front flange for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20TC F-MF20TC: trunnion bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF20I F-MF20I: rod-end eye joint for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20Y F-MF20Y: rod-end fork joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MF series, 20 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 165 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $41.92

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF20X50U

  Specifications: MF20X50U — AirTAC MF stainless steel mini cylinder, double acting, single rod, 20 mm bore and 50 mm stroke. PT1/8 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X50 Stroke: 50 mm No S code Nonmagnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF20X50U Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 50 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 20 mm bore, 50 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 103 mm AB 41 mm AC 62 mm B — body dimension in the drawing 25 mm R — outside-body dimension in the drawing 29 mm G 26 mm EA 16.5 mm Overall length from the printed formula 153 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF20LB F-MF20LB: foot bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20FA F-MF20FA: front flange for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20TC F-MF20TC: trunnion bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF20I F-MF20I: rod-end eye joint for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20Y F-MF20Y: rod-end fork joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MF series, 20 mm bore. Optional; not implied by this model code. This MF20X50U has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 163 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $39.37

  View options

•

  View options

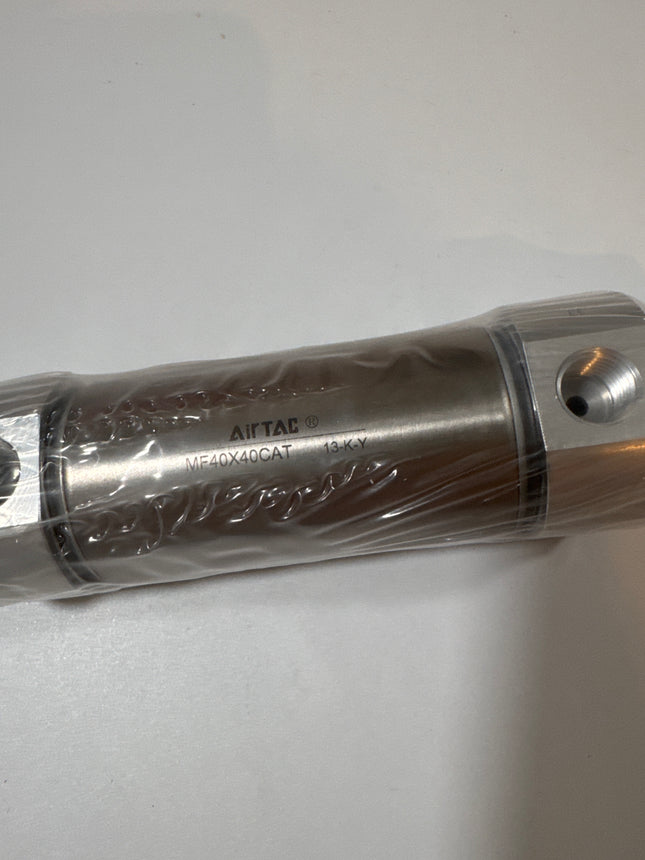

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X40CAT

  Specifications: MF40X40CAT — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 40 mm stroke. NPT1/4 port; nonmagnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X40 Stroke: 40 mm No S code Nonmagnetic piston CA pivot-eye rear cover T NPT thread Technical Specifications Parameter Details Model MF40X40CAT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 40 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/4 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 40 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 165 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 205 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. This MF40X40CAT has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. Weight Reference 656 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $85.49

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF25X30SCAT

  Specifications: MF25X30SCAT — AirTAC MF stainless steel mini cylinder, double acting, single rod, 25 mm bore and 30 mm stroke. NPT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X30 Stroke: 30 mm S Magnetic piston CA pivot-eye rear cover T NPT thread Technical Specifications Parameter Details Model MF25X30SCAT Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 30 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 25 mm bore, 30 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 128 mm AB 45 mm AC 62 mm B — body dimension in the drawing 30 mm R — outside-body dimension in the drawing 33.5 mm G 32 mm EA 20.5 mm Overall length from the printed formula 158 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF32LB F-MF32LB: foot bracket for MF series, 25 mm bore. Optional; not implied by this model code. F-MF32FA F-MF32FA: front flange for MF series, 25 mm bore. Optional; not implied by this model code. F-MF32TC F-MF32TC: trunnion bracket for MF series, 25 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF25I F-MF25I: rod-end eye joint for MF series, 25 mm bore. Optional; not implied by this model code. F-MF25Y F-MF25Y: rod-end fork joint for MF series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MF series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MF series, 25 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 239 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $48.22

  View options

•

  View options

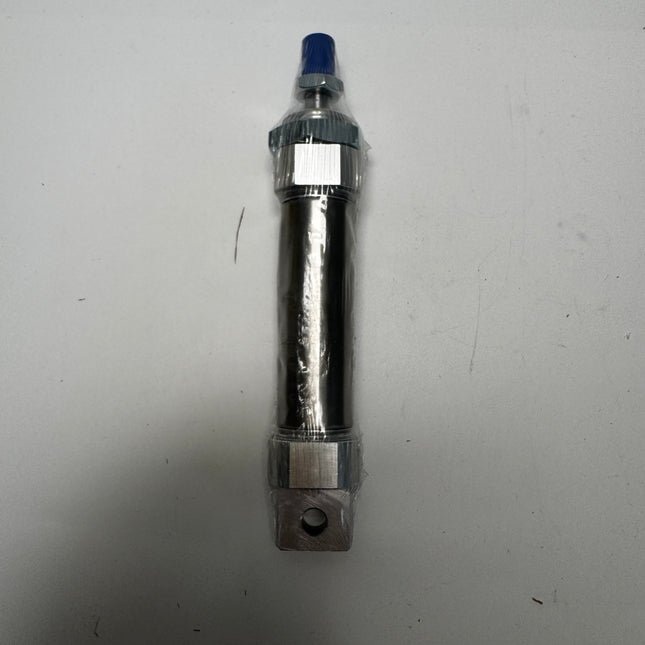

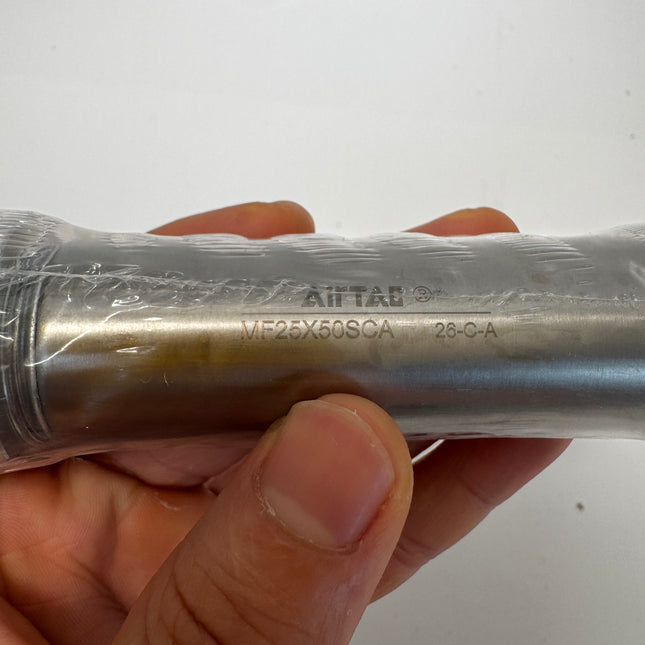

  Airtac MF series: double-acting stainless-steel mini cylinder - MF25X50SCA

  Specifications: MF25X50SCA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 25 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X50 Stroke: 50 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF25X50SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 25 mm Stroke 50 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 25 mm bore, 50 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 128 mm AB 45 mm AC 62 mm B — body dimension in the drawing 30 mm R — outside-body dimension in the drawing 33.5 mm G 32 mm EA 20.5 mm Overall length from the printed formula 178 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF32LB F-MF32LB: foot bracket for MF series, 25 mm bore. Optional; not implied by this model code. F-MF32FA F-MF32FA: front flange for MF series, 25 mm bore. Optional; not implied by this model code. F-MF32TC F-MF32TC: trunnion bracket for MF series, 25 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF25I F-MF25I: rod-end eye joint for MF series, 25 mm bore. Optional; not implied by this model code. F-MF25Y F-MF25Y: rod-end fork joint for MF series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MF series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MF series, 25 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS25. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 260 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $49.07

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF20X25SCA

  Specifications: MF20X25SCA — AirTAC MF stainless steel mini cylinder, double acting, single rod, 20 mm bore and 25 mm stroke. PT1/8 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X25 Stroke: 25 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MF20X25SCA Product type stainless steel mini cylinder Operation double acting, single rod Bore 20 mm Stroke 25 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 20 mm bore, 25 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 124 mm AB 41 mm AC 62 mm B — body dimension in the drawing 25 mm R — outside-body dimension in the drawing 29 mm G 26 mm EA 16.5 mm Overall length from the printed formula 149 mm Drawing length relation A + stroke For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF20LB F-MF20LB: foot bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20FA F-MF20FA: front flange for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20TC F-MF20TC: trunnion bracket for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20SDB F-MF20SDB: rear pivot bracket for MF series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF20I F-MF20I: rod-end eye joint for MF series, 20 mm bore. Optional; not implied by this model code. F-MF20Y F-MF20Y: rod-end fork joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MF series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MF series, 20 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 20 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS20. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 158 g — catalog reference weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $39.87

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X350SCMTCT

  Specifications: MF40X350SCMTCT — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 350 mm stroke. NPT1/4 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X350 Stroke: 350 mm S Magnetic piston CM round threaded rear cover TC trunnion bracket T NPT thread Technical Specifications Parameter Details Model MF40X350SCMTCT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 350 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover round threaded rear cover Mounting code in this model TC — trunnion bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 350 mm stroke and CM rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 154 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 504 mm Drawing length relation A + stroke TC mounting reference from printed page 96; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 11 mm D 27 mm E 53 mm F 77 mm G 10 mm H 14 mm J 53 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Matches the mounting code selected in this model. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 1744.9 g — estimated configuration weight. Matched to the catalog series, bore, stroke, cover and magnetic option; interpolated figures are estimates where no exact stroke row is printed. The selected TC mount adds an approximate 352.4 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $186.16

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X450SCMTCT

  Specifications: MF40X450SCMTCT — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 450 mm stroke. NPT1/4 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X450 Stroke: 450 mm S Magnetic piston CM round threaded rear cover TC trunnion bracket T NPT thread Technical Specifications Parameter Details Model MF40X450SCMTCT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 450 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover round threaded rear cover Mounting code in this model TC — trunnion bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 450 mm stroke and CM rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 154 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 604 mm Drawing length relation A + stroke TC mounting reference from printed page 96; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 11 mm D 27 mm E 53 mm F 77 mm G 10 mm H 14 mm J 53 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Matches the mounting code selected in this model. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 1981.4 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected TC mount adds an approximate 352.4 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $211.80

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X150SCMTCT

  Specifications: MF40X150SCMTCT — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 150 mm stroke. NPT1/4 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X150 Stroke: 150 mm S Magnetic piston CM round threaded rear cover TC trunnion bracket T NPT thread Technical Specifications Parameter Details Model MF40X150SCMTCT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 150 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover round threaded rear cover Mounting code in this model TC — trunnion bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 150 mm stroke and CM rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 154 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 304 mm Drawing length relation A + stroke TC mounting reference from printed page 96; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 11 mm D 27 mm E 53 mm F 77 mm G 10 mm H 14 mm J 53 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Matches the mounting code selected in this model. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 1272.4 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected TC mount adds an approximate 352.4 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $134.59

  View options

•

  View options

  Airtac MF series: double-acting stainless-steel mini cylinder - MF40X400SCMTCT

  Specifications: MF40X400SCMTCT — AirTAC MF stainless steel mini cylinder, double acting, single rod, 40 mm bore and 400 mm stroke. NPT1/4 port; magnetic piston. Product Catalog Download Airtac Product Catalog (PDF) Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MF stainless steel mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X400 Stroke: 400 mm S Magnetic piston CM round threaded rear cover TC trunnion bracket T NPT thread Technical Specifications Parameter Details Model MF40X400SCMTCT Product type stainless steel mini cylinder Operation double acting, single rod Bore 40 mm Stroke 400 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port NPT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover round threaded rear cover Mounting code in this model TC — trunnion bracket Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. External and Mounting Dimensions The following symbols refer to the MF drawing for 40 mm bore, 400 mm stroke and CM rear cover in the 2022 cylinder catalog, printed page 94. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 154 mm AB 50 mm AC 88 mm B — body dimension in the drawing 42.5 mm R — outside-body dimension in the drawing 46.5 mm G 41 mm EA 22.5 mm Overall length from the printed formula 554 mm Drawing length relation A + stroke TC mounting reference from printed page 96; use the dedicated bracket drawing to locate the symbols. The fixed bracket values below are distinct from stroke-dependent cylinder assembly dimensions. Parameter Details B 11 mm D 27 mm E 53 mm F 77 mm G 10 mm H 14 mm J 53 mm For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MF40LB F-MF40LB: foot bracket for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40FA F-MF40FA: front flange for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40TC F-MF40TC: trunnion bracket for MF series, 40 mm bore. Matches the mounting code selected in this model. F-MF32SDB F-MF32SDB: rear pivot bracket for MF series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MF40I F-MF40I: rod-end eye joint for MF series, 40 mm bore. Optional; not implied by this model code. F-MF40Y F-MF40Y: rod-end fork joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MF series, 40 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MF series, 40 mm bore. Optional; not implied by this model code. For this magnetic MF cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQS40. The band matches the stainless steel cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. Weight Reference 1863.4 g — estimated configuration weight. Matched to the printed series, bore, stroke, cover and magnetic-option weight reference. The selected TC mount adds an approximate 352.4 g based on its catalog plate envelope and steel density; holes and supplied fasteners are not individually weighed. Catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Tube SUS304 stainless steel Piston rod S45C, hard-chromed and ground Front / rear covers and piston Aluminum alloy O-rings NBR Bumper TPU Guide bush and wear ring Wear-resistant material Magnet Sintered neodymium-iron-boron Magnet pad / holder NBR / aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $198.38

  View options

Show more products
