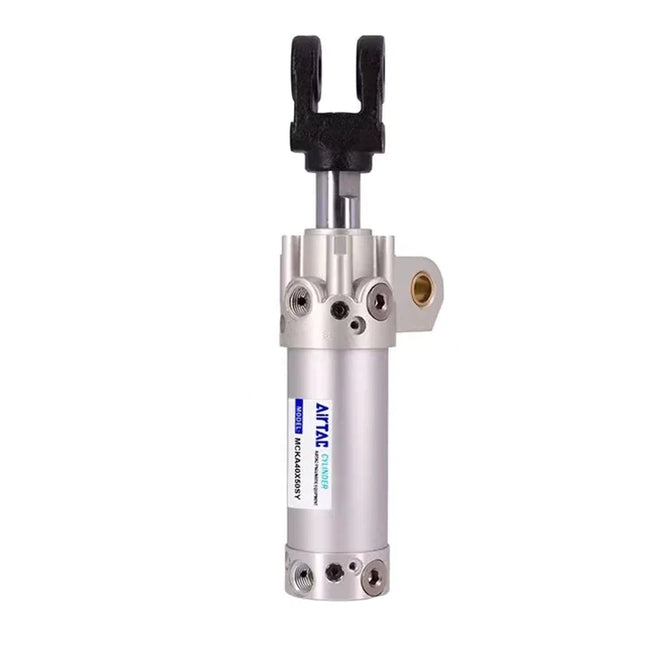

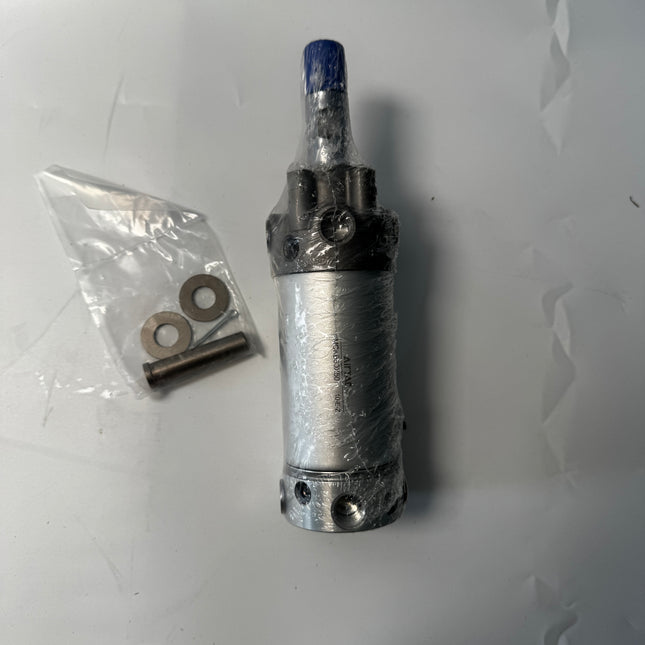

MCK Series Welding Clamp Cylinder
Features
- Welding Environment Ready: Suitable for automotive welding workshop environments.
- Heavy Duty Scraper: The front cover is equipped with a stainless steel scraper ring, which is sturdy and durable. It effectively resists dust and flying welding spatter, protecting the cylinder better than dust boots.
- Anti-Interference: In strong magnetic field environments, anti-interference type sensors should be selected.
- Versatile Ports: Three sides have optional intake/exhaust ports; built-in cushion adjustment and speed control adjustment (for applicable sizes).
- Sensor Options: Various sensor types are available for selection.
Specifications
| Bore Size (mm) | 25 | 32 | 40 | 50 | 63 | 80 |
|---|---|---|---|---|---|---|
| Acting Type | Double Acting | |||||
| Fluid | Air (filtered by 40μm filter element) | |||||
| Operating Pressure | 0.15~1.0MPa (22~145psi) | |||||
| Proof Pressure | 1.5MPa (215psi) | |||||
| Temperature (°C) | -20~70 | |||||
| Speed Range | 50~500 mm/s | |||||
| Cushion Type | Pad Cushion | Rear Air Cushion + Front Cushion (Optional) | ||||
| Flow Control | None | Front, Rear Standard Configuration | ||||
| Lubrication | Not Required | |||||
| Mounting | Double Clevis | |||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT3/8 | |||
[Note 1] PT and G threads are available.
Stroke Specifications
| Bore Size (mm) | Standard Stroke (mm) | Max Stroke (mm) |
|---|---|---|
| 25, 32, 40, 50, 63, 80 | 50, 75, 100, 125, 150 | 150 |
Note: Contact the company for other special strokes.
Ordering Code
MCK A 50 x 75 S □ Y □
| No. | Item | Code Description |
|---|---|---|
| ① | Series | MCK: Welding Clamp Cylinder (Double Acting) |
| ② | Clevis Type |
A: Open Type A (Mounting holes parallel to pin) B: Open Type B (Mounting holes perpendicular to pin) |
| ③ | Bore Size | 25, 32, 40, 50, 63, 80 (mm) |
| ④ | Stroke | Refer to Stroke Specs (e.g., 75, 100) |
| ⑤ | Magnet |
Blank: No Magnet S: With Magnet [Note 1] |
| ⑥ | Cushion/Ports |
Blank: 3 ports each on Front/Rear covers. Front cover with rubber cushion; Rear cover with air cushion (adjustable). E: 1 port each on Front/Rear covers (End face). Rear cover air cushion / Front cover no air cushion. |
| ⑦ | Accessory |
Blank: No Accessory Y: With Y Joint (Has M6 screw hole) YW: With Y Joint (No M6 screw hole) |
| ⑧ | Thread |
Blank: PT Thread G: G Thread |
[Note 1] In strong magnetic environments, anti-interference type sensors should be applied. Refer to P364 for selection.
