  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X100CA

  Specifications: MBL32X100CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 100 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL32X100CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X100CA are fulfilled with MBL32X100CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and CA rear cover: 141 + 100 = 241 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X100 Stroke: 100 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X100CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 100 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 100 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 241 mm Drawing length relation A + stroke AD 15.5 mm AF 108 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm MB 27 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm K 10 mm KA 12 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 100 = 170 mm AF + stroke 108 + 100 = 208 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. This MBL32X100CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 454 g — catalog reference weight. The cylinder reference is 454 g from the separately labelled MBL table for 32 mm bore, 100 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $50.01

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL40X40SU

  Specifications: MBL40X40SU — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 40 mm bore and 40 mm stroke. PT1/4 port; magnetic piston. MAL to MBL Replacement This listing is for MBL40X40SU. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL40X40SU are fulfilled with MBL40X40SU. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 40 mm bore and U rear cover: 138 + 40 = 178 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X40 Stroke: 40 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL40X40SU Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 40 mm Stroke 40 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 40 mm bore, 40 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 138 mm AB 46 mm AC 92 mm B — body dimension in the drawing 45 mm M — body mounting thread M30 × 2 G 41 mm EA 22.5 mm Overall length from the printed formula 178 mm Drawing length relation A + stroke AD 22 mm C 20 mm; drawing tolerance ±0.07 mm D 16 mm DA 30 mm MA 16 mm E M12 × 1.25 EB 21 mm F 17 mm FA 7 mm GA 8 mm H 14 mm P PT1/4 PA 11 mm AC + stroke 92 + 40 = 132 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket listed for the MBL 40 mm bore family, supplied with its matching pin. The installation drawing uses a CA pivot-eye rear connection. This model has a flat U cover; direct pin mounting to that U cover is not shown. F-MA40I F-MA40I: rod-end eye joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MBL series, 40 mm bore. Optional; not implied by this model code. For this magnetic MBL cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQA40. The band matches the aluminum cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 626 g — catalog reference weight. The cylinder reference is 614 g from the separately labelled MBL table for 40 mm bore, 40 mm stroke and U rear cover plus the printed 12 g magnetic-piston allowance (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Magnet Plastic magnet Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 11 — Magnet (magnetic version only) Plastic magnet 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $68.36

  View options

•

  View options

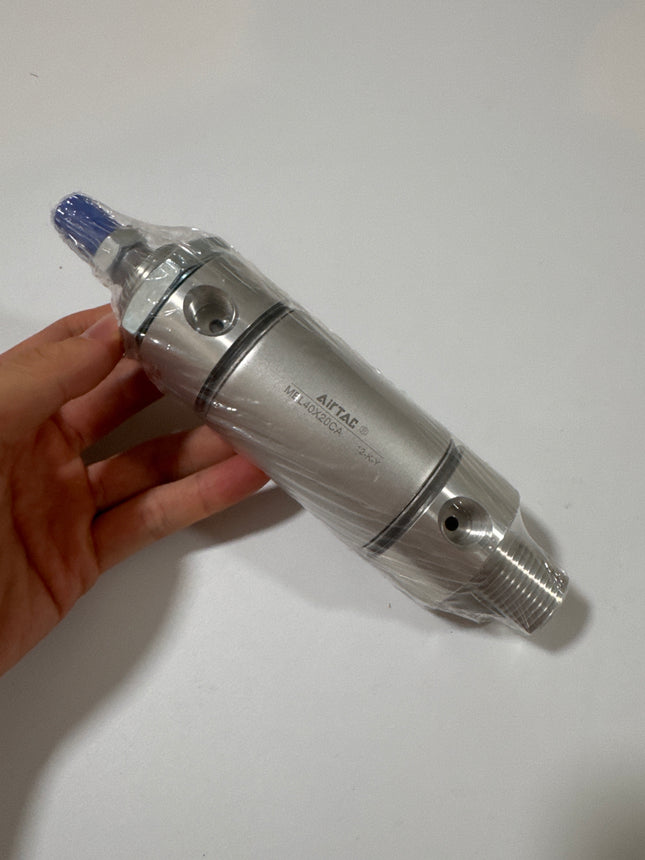

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL40X20CA

  Specifications: MBL40X20CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 40 mm bore and 20 mm stroke. PT1/4 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL40X20CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL40X20CA are fulfilled with MBL40X20CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 40 mm bore and CA rear cover: 165 + 20 = 185 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X20 Stroke: 20 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL40X20CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 40 mm Stroke 20 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 40 mm bore, 20 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 165 mm AB 46 mm AC 92 mm B — body dimension in the drawing 45 mm M — body mounting thread M30 × 2 G 41 mm EA 22.5 mm Overall length from the printed formula 185 mm Drawing length relation A + stroke AD 22 mm AF 130.5 mm C 20 mm; drawing tolerance ±0.07 mm D 16 mm DA 30 mm MA 16 mm MB 27 mm E M12 × 1.25 EB 21 mm F 17 mm FA 7 mm GA 8 mm H 14 mm K 12 mm KA 12 mm P PT1/4 PA 11 mm AC + stroke 92 + 20 = 112 mm AF + stroke 130.5 + 20 = 150.5 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA40I F-MA40I: rod-end eye joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MBL series, 40 mm bore. Optional; not implied by this model code. This MBL40X20CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 597 g — catalog reference weight. The cylinder reference is 597 g from the separately labelled MBL table for 40 mm bore, 20 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $62.94

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X40CA

  Specifications: MBL32X40CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 40 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL32X40CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X40CA are fulfilled with MBL32X40CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and CA rear cover: 141 + 40 = 181 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X40 Stroke: 40 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X40CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 40 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 40 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 181 mm Drawing length relation A + stroke AD 15.5 mm AF 108 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm MB 27 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm K 10 mm KA 12 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 40 = 110 mm AF + stroke 108 + 40 = 148 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. This MBL32X40CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 357 g — catalog reference weight. The cylinder reference is 357 g from the separately labelled MBL table for 32 mm bore, 40 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $44.39

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL25X30U

  Specifications: MBL25X30U — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 25 mm bore and 30 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL25X30U. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL25X30U are fulfilled with MBL25X30U. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 25 mm bore and U rear cover: 114 + 30 = 144 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X30 Stroke: 30 mm No S code Nonmagnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL25X30U Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 25 mm Stroke 30 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 25 mm bore, 30 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 114 mm AB 44 mm AC 70 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 21 mm Overall length from the printed formula 144 mm Drawing length relation A + stroke AD 15.5 mm C 16 mm; drawing tolerance ±0.07 mm D 10 mm DA 30 mm MA 14 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 8 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 30 = 100 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket listed for the MBL 25 mm bore family, supplied with its matching pin. The installation drawing uses a CA pivot-eye rear connection. This model has a flat U cover; direct pin mounting to that U cover is not shown. F-MA25I F-MA25I: rod-end eye joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 25 mm bore. Optional; not implied by this model code. This MBL25X30U has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 224 g — catalog reference weight. The cylinder reference is 224 g from the separately labelled MBL table for 25 mm bore, 30 mm stroke and U rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $36.39

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL40X250SCA

  Specifications: MBL40X250SCA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 40 mm bore and 250 mm stroke. PT1/4 port; magnetic piston. MAL to MBL Replacement This listing is for MBL40X250SCA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL40X250SCA are fulfilled with MBL40X250SCA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 40 mm bore and CA rear cover: 165 + 250 = 415 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X250 Stroke: 250 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL40X250SCA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 40 mm Stroke 250 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 40 mm bore, 250 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 165 mm AB 46 mm AC 92 mm B — body dimension in the drawing 45 mm M — body mounting thread M30 × 2 G 41 mm EA 22.5 mm Overall length from the printed formula 415 mm Drawing length relation A + stroke AD 22 mm AF 130.5 mm C 20 mm; drawing tolerance ±0.07 mm D 16 mm DA 30 mm MA 16 mm MB 27 mm E M12 × 1.25 EB 21 mm F 17 mm FA 7 mm GA 8 mm H 14 mm K 12 mm KA 12 mm P PT1/4 PA 11 mm AC + stroke 92 + 250 = 342 mm AF + stroke 130.5 + 250 = 380.5 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA40I F-MA40I: rod-end eye joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MBL series, 40 mm bore. Optional; not implied by this model code. For this magnetic MBL cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQA40. The band matches the aluminum cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 1175 g — catalog reference weight. The cylinder reference is 1163 g from the separately labelled MBL table for 40 mm bore, 250 mm stroke and CA rear cover plus the printed 12 g magnetic-piston allowance (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Magnet Plastic magnet Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 11 — Magnet (magnetic version only) Plastic magnet 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $101.54

  View options

•

  View options

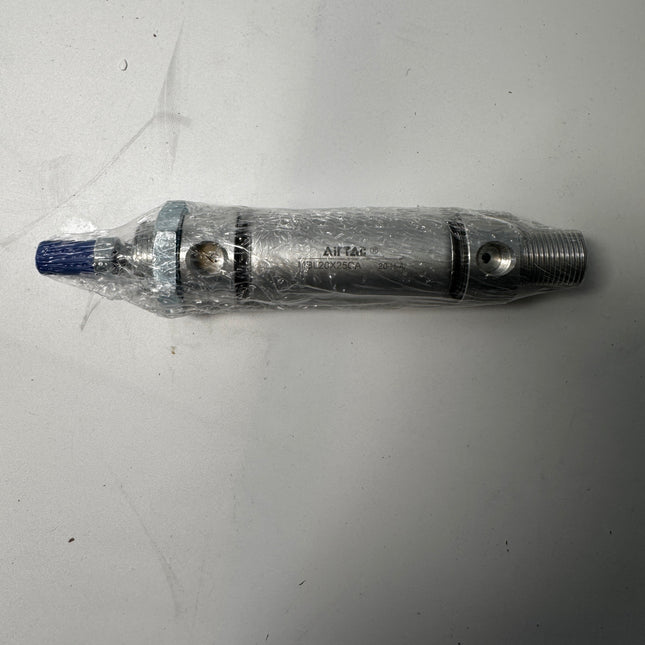

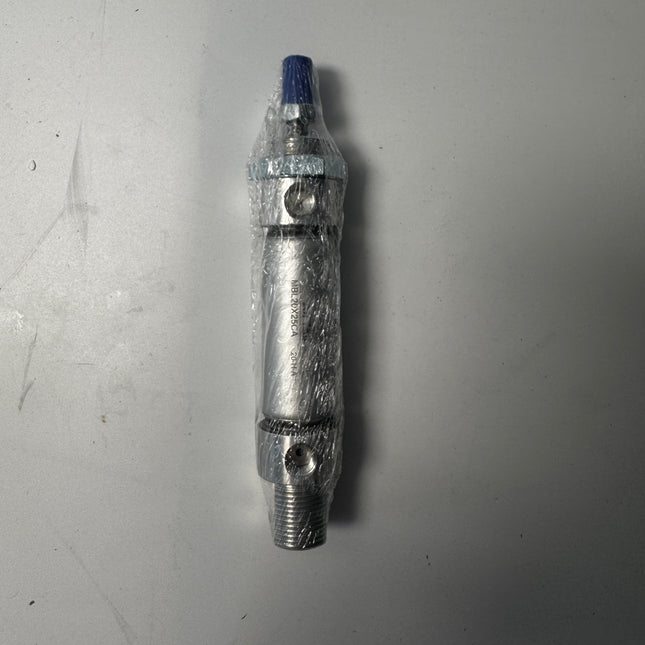

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL20X25CA

  Specifications: MBL20X25CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 20 mm bore and 25 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL20X25CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL20X25CA are fulfilled with MBL20X25CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 20 mm bore and CA rear cover: 131 + 25 = 156 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X25 Stroke: 25 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL20X25CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 20 mm Stroke 25 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 20 mm bore, 25 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 131 mm AB 40 mm AC 70 mm B — body dimension in the drawing 27 mm M — body mounting thread M22 × 1.5 G 29 mm EA 20 mm Overall length from the printed formula 156 mm Drawing length relation A + stroke AD 15.5 mm AF 102 mm C 16 mm; drawing tolerance ±0.07 mm D 8 mm DA 26 mm MA 14 mm MB 21 mm E M8 × 1.25 EB 18.5 mm F 12 mm FA 6 mm GA 7 mm H 6 mm K 8 mm KA 9 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 25 = 95 mm AF + stroke 102 + 25 = 127 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MBL series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA20I F-MA20I: rod-end eye joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20Y F-MA20Y: rod-end fork joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MBL series, 20 mm bore. Optional; not implied by this model code. This MBL20X25CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 180 g — catalog reference weight. The cylinder reference is 180 g from the separately labelled MBL table for 20 mm bore, 25 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $29.78

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL25X125CA

  Specifications: MBL25X125CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 25 mm bore and 125 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL25X125CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL25X125CA are fulfilled with MBL25X125CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 25 mm bore and CA rear cover: 135 + 125 = 260 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X125 Stroke: 125 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL25X125CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 25 mm Stroke 125 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 25 mm bore, 125 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 135 mm AB 44 mm AC 70 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 21 mm Overall length from the printed formula 260 mm Drawing length relation A + stroke AD 15.5 mm AF 105 mm C 16 mm; drawing tolerance ±0.07 mm D 10 mm DA 30 mm MA 14 mm MB 21 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 8 mm K 8 mm KA 9 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 125 = 195 mm AF + stroke 105 + 125 = 230 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MBL series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 25 mm bore. Optional; not implied by this model code. This MBL25X125CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 351 g — catalog reference weight. The cylinder reference is 351 g from the separately labelled MBL table for 25 mm bore, 125 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $44.14

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL25X125U

  Specifications: MBL25X125U — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 25 mm bore and 125 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL25X125U. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL25X125U are fulfilled with MBL25X125U. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 25 mm bore and U rear cover: 114 + 125 = 239 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X125 Stroke: 125 mm No S code Nonmagnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL25X125U Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 25 mm Stroke 125 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 25 mm bore, 125 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 114 mm AB 44 mm AC 70 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 21 mm Overall length from the printed formula 239 mm Drawing length relation A + stroke AD 15.5 mm C 16 mm; drawing tolerance ±0.07 mm D 10 mm DA 30 mm MA 14 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 8 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 125 = 195 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket listed for the MBL 25 mm bore family, supplied with its matching pin. The installation drawing uses a CA pivot-eye rear connection. This model has a flat U cover; direct pin mounting to that U cover is not shown. F-MA25I F-MA25I: rod-end eye joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 25 mm bore. Optional; not implied by this model code. This MBL25X125U has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 336 g — catalog reference weight. The cylinder reference is 336 g from the separately labelled MBL table for 25 mm bore, 125 mm stroke and U rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $43.54

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X30U

  Specifications: MBL32X30U — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 30 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL32X30U. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X30U are fulfilled with MBL32X30U. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and U rear cover: 114 + 30 = 144 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X30 Stroke: 30 mm No S code Nonmagnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X30U Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 30 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 30 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 114 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 144 mm Drawing length relation A + stroke AD 15.5 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 30 = 100 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket listed for the MBL 32 mm bore family, supplied with its matching pin. The installation drawing uses a CA pivot-eye rear connection. This model has a flat U cover; direct pin mounting to that U cover is not shown. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. This MBL32X30U has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 329 g — catalog reference weight. The cylinder reference is 329 g from the separately labelled MBL table for 32 mm bore, 30 mm stroke and U rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $43.26

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL25X40SU

  Specifications: MBL25X40SU — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 25 mm bore and 40 mm stroke. PT1/8 port; magnetic piston. MAL to MBL Replacement This listing is for MBL25X40SU. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL25X40SU are fulfilled with MBL25X40SU. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 25 mm bore and U rear cover: 114 + 40 = 154 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X40 Stroke: 40 mm S Magnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL25X40SU Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 25 mm Stroke 40 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 25 mm bore, 40 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 114 mm AB 44 mm AC 70 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 21 mm Overall length from the printed formula 154 mm Drawing length relation A + stroke AD 15.5 mm C 16 mm; drawing tolerance ±0.07 mm D 10 mm DA 30 mm MA 14 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 8 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 40 = 110 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket listed for the MBL 25 mm bore family, supplied with its matching pin. The installation drawing uses a CA pivot-eye rear connection. This model has a flat U cover; direct pin mounting to that U cover is not shown. F-MA25I F-MA25I: rod-end eye joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 25 mm bore. Optional; not implied by this model code. For this magnetic MBL cylinder with 25 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQA25. The band matches the aluminum cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 240 g — catalog reference weight. The cylinder reference is 235 g from the separately labelled MBL table for 25 mm bore, 40 mm stroke and U rear cover plus the printed 5 g magnetic-piston allowance (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Magnet Plastic magnet Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 11 — Magnet (magnetic version only) Plastic magnet 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $39.37

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL50X40CA

  Specifications: MBL50X40CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 50 mm bore and 40 mm stroke. PT1/4 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL50X40CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL50X40CA are fulfilled with MBL50X40CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The supplied MAL catalog covers 20, 25, 32 and 40 mm bores; it does not document the old 50 mm MAL reference. The dimensions and specifications below belong to the documented MBL model. They do not verify the dimensions or direct interchangeability of an old MAL50X40CA cylinder.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 50 Cylinder bore: 50 mm X40 Stroke: 40 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL50X40CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 50 mm Stroke 40 mm Piston-rod diameter 16 mm Rod-end thread M14 × 1.5 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 50 mm bore, 40 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 173 mm AB 54 mm AC 92 mm B — body dimension in the drawing 55 mm M — body mounting thread M36 × 2 G 46 mm EA 24 mm Overall length from the printed formula 213 mm Drawing length relation A + stroke AD 22 mm AF 138 mm C 20 mm; drawing tolerance ±0.07 mm D 16 mm DA 32 mm MA 22 mm MB 27 mm E M14 × 1.5 EB 22.5 mm F 19 mm FA 8 mm GA 11 mm H 14 mm K 12 mm KA 11 mm P PT1/4 PA 11 mm AC + stroke 92 + 40 = 132 mm AF + stroke 138 + 40 = 178 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA50LB F-MA50LB: foot bracket for MBL series, 50 mm bore. Optional; not implied by this model code. F-MA50FA F-MA50FA: front flange for MBL series, 50 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MBL series, 50 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MAC50I F-MAC50I: rod-end eye joint for MBL series, 50 mm bore. Optional; not implied by this model code. F-MAC50Y F-MAC50Y: rod-end fork joint for MBL series, 50 mm bore. Optional; not implied by this model code. F-M14X150F F-M14X150F: floating joint for MBL series, 50 mm bore. Optional; not implied by this model code. F-M14X150U F-M14X150U: spherical rod-end joint for MBL series, 50 mm bore. Optional; not implied by this model code. This MBL50X40CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 903 g — catalog reference weight. The cylinder reference is 903 g from the separately labelled MBL table for 50 mm bore, 40 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 981.2 N; retraction 880.8 N, using bore 50 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 50 mm bore the general catalog lists effective area 5.1 mm², valve examples 5V21008 / 5V22008, pneumatic-pilot alternatives 4A21008 / 4A22008, flow control PTL02, silencer BSL02, and tubing 10 mm OD × 6.5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $98.56

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X200SCA

  Specifications: MBL32X200SCA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 200 mm stroke. PT1/8 port; magnetic piston. MAL to MBL Replacement This listing is for MBL32X200SCA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X200SCA are fulfilled with MBL32X200SCA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and CA rear cover: 141 + 200 = 341 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X200 Stroke: 200 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X200SCA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 200 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 200 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 341 mm Drawing length relation A + stroke AD 15.5 mm AF 108 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm MB 27 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm K 10 mm KA 12 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 200 = 270 mm AF + stroke 108 + 200 = 308 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. For this magnetic MBL cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQA32. The band matches the aluminum cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 623 g — catalog reference weight. The cylinder reference is 616 g from the separately labelled MBL table for 32 mm bore, 200 mm stroke and CA rear cover plus the printed 7 g magnetic-piston allowance (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Magnet Plastic magnet Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 11 — Magnet (magnetic version only) Plastic magnet 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $64.01

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X50SCA

  Specifications: MBL32X50SCA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 50 mm stroke. PT1/8 port; magnetic piston. MAL to MBL Replacement This listing is for MBL32X50SCA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X50SCA are fulfilled with MBL32X50SCA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and CA rear cover: 141 + 50 = 191 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X50 Stroke: 50 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X50SCA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 50 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 50 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 191 mm Drawing length relation A + stroke AD 15.5 mm AF 108 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm MB 27 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm K 10 mm KA 12 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 50 = 120 mm AF + stroke 108 + 50 = 158 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. For this magnetic MBL cylinder with 32 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQA32. The band matches the aluminum cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 380 g — catalog reference weight. The cylinder reference is 373 g from the separately labelled MBL table for 32 mm bore, 50 mm stroke and CA rear cover plus the printed 7 g magnetic-piston allowance (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Magnet Plastic magnet Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 11 — Magnet (magnetic version only) Plastic magnet 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $48.77

  View options

•

  View options

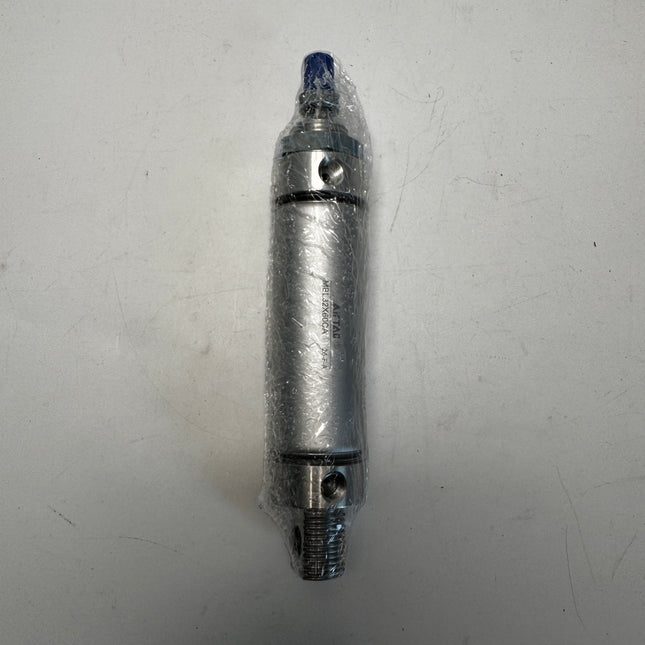

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X60CA

  Specifications: MBL32X60CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 60 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL32X60CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X60CA are fulfilled with MBL32X60CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and CA rear cover: 141 + 60 = 201 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X60 Stroke: 60 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X60CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 60 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 60 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 201 mm Drawing length relation A + stroke AD 15.5 mm AF 108 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm MB 27 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm K 10 mm KA 12 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 60 = 130 mm AF + stroke 108 + 60 = 168 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. This MBL32X60CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 389 g — catalog reference weight. The cylinder reference is 389 g from the separately labelled MBL table for 32 mm bore, 60 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $46.80

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X20CA

  Specifications: MBL32X20CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 20 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL32X20CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X20CA are fulfilled with MBL32X20CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and CA rear cover: 141 + 20 = 161 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X20 Stroke: 20 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X20CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 20 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 20 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 161 mm Drawing length relation A + stroke AD 15.5 mm AF 108 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm MB 27 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm K 10 mm KA 12 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 20 = 90 mm AF + stroke 108 + 20 = 128 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. This MBL32X20CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 333 g — catalog reference weight. The cylinder reference is 333 g from the separately labelled MBL table for 32 mm bore, 20 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $42.88

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL20X15CA

  Specifications: MBL20X15CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 20 mm bore and 15 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL20X15CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL20X15CA are fulfilled with MBL20X15CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 20 mm bore and CA rear cover: 131 + 15 = 146 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X15 Stroke: 15 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL20X15CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 20 mm Stroke 15 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 20 mm bore, 15 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 131 mm AB 40 mm AC 70 mm B — body dimension in the drawing 27 mm M — body mounting thread M22 × 1.5 G 29 mm EA 20 mm Overall length from the printed formula 146 mm Drawing length relation A + stroke AD 15.5 mm AF 102 mm C 16 mm; drawing tolerance ±0.07 mm D 8 mm DA 26 mm MA 14 mm MB 21 mm E M8 × 1.25 EB 18.5 mm F 12 mm FA 6 mm GA 7 mm H 6 mm K 8 mm KA 9 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 15 = 85 mm AF + stroke 102 + 15 = 117 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MBL series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA20I F-MA20I: rod-end eye joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20Y F-MA20Y: rod-end fork joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MBL series, 20 mm bore. Optional; not implied by this model code. This MBL20X15CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 172 g — catalog reference weight. The cylinder reference is 172 g from the separately labelled MBL table for 20 mm bore, 15 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $29.48

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL20X50CA

  Specifications: MBL20X50CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 20 mm bore and 50 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL20X50CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL20X50CA are fulfilled with MBL20X50CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 20 mm bore and CA rear cover: 131 + 50 = 181 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X50 Stroke: 50 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL20X50CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 20 mm Stroke 50 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 20 mm bore, 50 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 131 mm AB 40 mm AC 70 mm B — body dimension in the drawing 27 mm M — body mounting thread M22 × 1.5 G 29 mm EA 20 mm Overall length from the printed formula 181 mm Drawing length relation A + stroke AD 15.5 mm AF 102 mm C 16 mm; drawing tolerance ±0.07 mm D 8 mm DA 26 mm MA 14 mm MB 21 mm E M8 × 1.25 EB 18.5 mm F 12 mm FA 6 mm GA 7 mm H 6 mm K 8 mm KA 9 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 50 = 120 mm AF + stroke 102 + 50 = 152 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MBL series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA20I F-MA20I: rod-end eye joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20Y F-MA20Y: rod-end fork joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MBL series, 20 mm bore. Optional; not implied by this model code. This MBL20X50CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 201 g — catalog reference weight. The cylinder reference is 201 g from the separately labelled MBL table for 20 mm bore, 50 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $31.48

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL40X50CA

  Specifications: MBL40X50CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 40 mm bore and 50 mm stroke. PT1/4 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL40X50CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL40X50CA are fulfilled with MBL40X50CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 40 mm bore and CA rear cover: 165 + 50 = 215 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X50 Stroke: 50 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL40X50CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 40 mm Stroke 50 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 40 mm bore, 50 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 165 mm AB 46 mm AC 92 mm B — body dimension in the drawing 45 mm M — body mounting thread M30 × 2 G 41 mm EA 22.5 mm Overall length from the printed formula 215 mm Drawing length relation A + stroke AD 22 mm AF 130.5 mm C 20 mm; drawing tolerance ±0.07 mm D 16 mm DA 30 mm MA 16 mm MB 27 mm E M12 × 1.25 EB 21 mm F 17 mm FA 7 mm GA 8 mm H 14 mm K 12 mm KA 12 mm P PT1/4 PA 11 mm AC + stroke 92 + 50 = 142 mm AF + stroke 130.5 + 50 = 180.5 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA40I F-MA40I: rod-end eye joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MBL series, 40 mm bore. Optional; not implied by this model code. This MBL40X50CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 671 g — catalog reference weight. The cylinder reference is 671 g from the separately labelled MBL table for 40 mm bore, 50 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $66.77

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL20X10CA

  Specifications: MBL20X10CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 20 mm bore and 10 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL20X10CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL20X10CA are fulfilled with MBL20X10CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 20 mm bore and CA rear cover: 131 + 10 = 141 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 20 Cylinder bore: 20 mm X10 Stroke: 10 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL20X10CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 20 mm Stroke 10 mm Piston-rod diameter 8 mm Rod-end thread M8 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 20 mm bore, 10 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 131 mm AB 40 mm AC 70 mm B — body dimension in the drawing 27 mm M — body mounting thread M22 × 1.5 G 29 mm EA 20 mm Overall length from the printed formula 141 mm Drawing length relation A + stroke AD 15.5 mm AF 102 mm C 16 mm; drawing tolerance ±0.07 mm D 8 mm DA 26 mm MA 14 mm MB 21 mm E M8 × 1.25 EB 18.5 mm F 12 mm FA 6 mm GA 7 mm H 6 mm K 8 mm KA 9 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 10 = 80 mm AF + stroke 102 + 10 = 112 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MBL series, 20 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA20I F-MA20I: rod-end eye joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-MA20Y F-MA20Y: rod-end fork joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-M8X125F F-M8X125F: floating joint for MBL series, 20 mm bore. Optional; not implied by this model code. F-M8X125U F-M8X125U: spherical rod-end joint for MBL series, 20 mm bore. Optional; not implied by this model code. This MBL20X10CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 168 g — catalog reference weight. The cylinder reference is 168 g from the separately labelled MBL table for 20 mm bore, 10 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 157.0 N; retraction 131.9 N, using bore 20 mm and rod diameter 8 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 20 mm bore the general catalog lists effective area 0.8 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $29.32

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL25X75CA

  Specifications: MBL25X75CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 25 mm bore and 75 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL25X75CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL25X75CA are fulfilled with MBL25X75CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 25 mm bore and CA rear cover: 135 + 75 = 210 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 25 Cylinder bore: 25 mm X75 Stroke: 75 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL25X75CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 25 mm Stroke 75 mm Piston-rod diameter 10 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 25 mm bore, 75 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 135 mm AB 44 mm AC 70 mm B — body dimension in the drawing 30 mm M — body mounting thread M22 × 1.5 G 29 mm EA 21 mm Overall length from the printed formula 210 mm Drawing length relation A + stroke AD 15.5 mm AF 105 mm C 16 mm; drawing tolerance ±0.07 mm D 10 mm DA 30 mm MA 14 mm MB 21 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 8 mm K 8 mm KA 9 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 75 = 145 mm AF + stroke 105 + 75 = 180 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA20LB F-MA20LB: foot bracket for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20FA F-MA20FA: front flange for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA20SDB F-MA20SDB: rear pivot bracket for MBL series, 25 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 25 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 25 mm bore. Optional; not implied by this model code. This MBL25X75CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 292 g — catalog reference weight. The cylinder reference is 292 g from the separately labelled MBL table for 25 mm bore, 75 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 245.3 N; retraction 206.1 N, using bore 25 mm and rod diameter 10 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 25 mm bore the general catalog lists effective area 1.3 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $39.98

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X350CA

  Specifications: MBL32X350CA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 350 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL32X350CA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X350CA are fulfilled with MBL32X350CA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and CA rear cover: 141 + 350 = 491 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X350 Stroke: 350 mm No S code Nonmagnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X350CA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 350 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 350 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 141 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 491 mm Drawing length relation A + stroke AD 15.5 mm AF 108 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm MB 27 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm K 10 mm KA 12 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 350 = 420 mm AF + stroke 108 + 350 = 458 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. This MBL32X350CA has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 859 g — catalog reference weight. The cylinder reference is 859 g from the separately labelled MBL table for 32 mm bore, 350 mm stroke and CA rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $76.20

  View options

•

  View options

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL32X450U

  Specifications: MBL32X450U — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 32 mm bore and 450 mm stroke. PT1/8 port; nonmagnetic piston. MAL to MBL Replacement This listing is for MBL32X450U. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL32X450U are fulfilled with MBL32X450U. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 32 mm bore and U rear cover: 114 + 450 = 564 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 32 Cylinder bore: 32 mm X450 Stroke: 450 mm No S code Nonmagnetic piston U flat rear cover with radial air port No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL32X450U Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 32 mm Stroke 450 mm Piston-rod diameter 12 mm Rod-end thread M10 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/8 Cushioning Bumper Magnetic piston Not included; no S code Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover flat rear cover with radial air port Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 32 mm bore, 450 mm stroke and U rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 114 mm AB 44 mm AC 70 mm B — body dimension in the drawing 37 mm M — body mounting thread M24 × 2 G 32 mm EA 21 mm Overall length from the printed formula 564 mm Drawing length relation A + stroke AD 15.5 mm C 16 mm; drawing tolerance ±0.07 mm D 12 mm DA 28 mm MA 16 mm E M10 × 1.25 EB 19.5 mm F 17 mm FA 6 mm GA 8 mm H 10 mm P PT1/8 PA 7.5 mm AC + stroke 70 + 450 = 520 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA32LB F-MA32LB: foot bracket for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32FA F-MA32FA: front flange for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA32SDB F-MA32SDB: rear pivot bracket listed for the MBL 32 mm bore family, supplied with its matching pin. The installation drawing uses a CA pivot-eye rear connection. This model has a flat U cover; direct pin mounting to that U cover is not shown. F-MA25I F-MA25I: rod-end eye joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-MA25Y F-MA25Y: rod-end fork joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125F F-M10X125F: floating joint for MBL series, 32 mm bore. Optional; not implied by this model code. F-M10X125U F-M10X125U: spherical rod-end joint for MBL series, 32 mm bore. Optional; not implied by this model code. This MBL32X450U has no S magnetic-piston code. CMSG/DMSG magnetic detection is listed for the corresponding magnetic version, not for this nonmagnetic cylinder. Adding a sensor band does not add a piston magnet. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 1000 g — catalog reference weight. The cylinder reference is 1000 g from the separately labelled MBL table for 32 mm bore, 450 mm stroke and U rear cover (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 401.9 N; retraction 345.4 N, using bore 32 mm and rod diameter 12 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 32 mm bore the general catalog lists effective area 2.1 mm², valve examples 5V110M5 / 5V120M5, pneumatic-pilot alternatives 4A110M5 / 4A120M5, flow control PTLM5, silencer BSLM5, and tubing 6 mm OD × 4 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $86.47

  View options

•

  View options

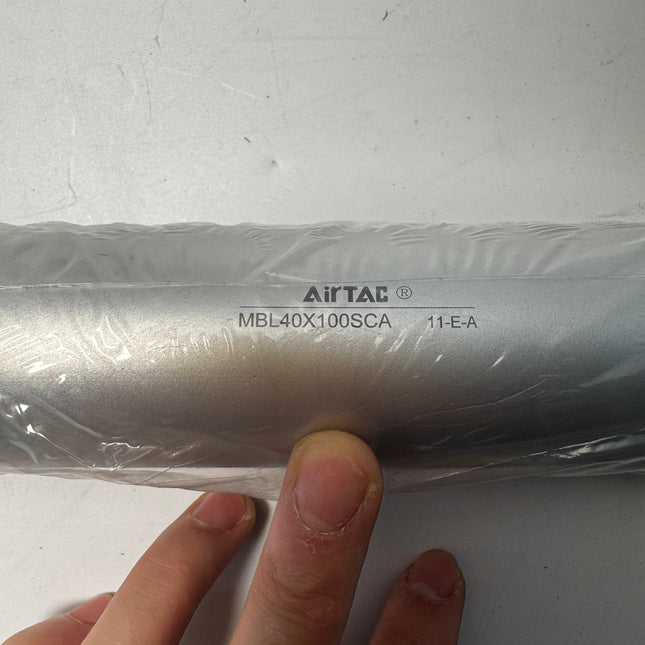

  Airtac MBL series: double-acting aluminum-alloy mini cylinder - MBL40X100SCA

  Specifications: MBL40X100SCA — AirTAC MBL aluminum alloy mini cylinder, double acting, single rod, 40 mm bore and 100 mm stroke. PT1/4 port; magnetic piston. MAL to MBL Replacement This listing is for MBL40X100SCA. The MAL series is discontinued. All orders placed under the corresponding legacy MAL listing MAL40X100SCA are fulfilled with MBL40X100SCA. The cylinder supplied will be MBL, not MAL. The bore, stroke, magnetic option, rear-cover code, mounting code and port-thread selection are retained in this ordering correspondence. The compared MAL and MBL drawings give the same A + stroke length for this 40 mm bore and CA rear cover: 165 + 100 = 265 mm. Other body and rod-projection dimensions differ; check the mounting interface and clearances before installation. This store replacement policy is not a declaration that every dimension is identical.Product Catalog Download AirTAC MBL / MBLC Catalog (English PDF) Download AirTAC MAL Legacy Catalog (Chinese PDF) Read the MAL vs MBL Dimensions and Replacement Guide Download AirTAC 2022 Sensor and Mounting Compatibility Guide (PDF) Download 2022 mounting brackets (PDF) Download 2022 rod-end joints and sensor mounts (PDF) Download 2022 cylinder installation and weight tables (PDF) For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Model Code Explained Code Meaning MBL aluminum alloy mini cylinder; double acting, single rod 40 Cylinder bore: 40 mm X100 Stroke: 100 mm S Magnetic piston CA pivot-eye rear cover No thread suffix PT pipe thread (catalog default) Technical Specifications Parameter Details Model MBL40X100SCA Product type aluminum alloy mini cylinder Operation double acting, single rod Bore 40 mm Stroke 100 mm Piston-rod diameter 16 mm Rod-end thread M12 × 1.25 Working medium Air filtered to 40 µm or finer Operating pressure 0.15–1.0 MPa Proof pressure 1.5 MPa Operating temperature −20 to +70 °C Piston speed 30–800 mm/s Port PT1/4 Cushioning Bumper Magnetic piston Included (S) Stroke tolerance +1.0 / 0 mm up to 150 mm; +1.5 / 0 mm above 150 mm Rear cover pivot-eye rear cover Features and Operation Alternating the supply and exhaust at the two cylinder ports drives extension and retraction. The tube and end-cover construction is not intended for dismantling. Protect the rod and sliding surfaces, and keep the load aligned with the cylinder axis. The catalog describes a compact piston with a two-way sealing arrangement and a grease-retaining function. The aluminum-alloy tube and end covers use a rolled connection. The English overview contains a stainless-steel wording inconsistency; the material table and Chinese MBL chapter identify an aluminum-alloy tube. External and Mounting Dimensions The following symbols refer to the MBL drawing for 40 mm bore, 100 mm stroke and CA rear cover in the 2022 cylinder catalog, printed page 114. Values are in mm unless a thread or formula is stated. The symbols retain the drawing references and must not be rearranged into an unsupported length × width × height. Parameter Details A — base length before the stroke term 165 mm AB 46 mm AC 92 mm B — body dimension in the drawing 45 mm M — body mounting thread M30 × 2 G 41 mm EA 22.5 mm Overall length from the printed formula 265 mm Drawing length relation A + stroke AD 22 mm AF 130.5 mm C 20 mm; drawing tolerance ±0.07 mm D 16 mm DA 30 mm MA 16 mm MB 27 mm E M12 × 1.25 EB 21 mm F 17 mm FA 7 mm GA 8 mm H 14 mm K 12 mm KA 12 mm P PT1/4 PA 11 mm AC + stroke 92 + 100 = 192 mm AF + stroke 130.5 + 100 = 230.5 mm Magnetic versus nonmagnetic dimensions The catalog states that the external dimensions are the same. For detailed product dimensions and mounting drawings, please download and refer to the PDF catalog. Compatible Accessories and Sensors Accessory code Purpose and compatibility F-MA40LB F-MA40LB: foot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40FA F-MA40FA: front flange for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40SDB F-MA40SDB: rear pivot bracket for MBL series, 40 mm bore. Optional; not implied by this model code. The bracket is supplied with its matching pin. F-MA40I F-MA40I: rod-end eye joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-MA40Y F-MA40Y: rod-end fork joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125F F-M12X125F: floating joint for MBL series, 40 mm bore. Optional; not implied by this model code. F-M12X125U F-M12X125U: spherical rod-end joint for MBL series, 40 mm bore. Optional; not implied by this model code. For this magnetic MBL cylinder with 40 mm bore, the 2022 sensor selection table lists CMSG and DMSG with the round-cylinder mounting band F-MQA40. The band matches the aluminum cylinder body; do not substitute a tie-rod bracket or a different bore size. Sensors and bands are selected separately and are not implied by the S piston-magnet code. Fit the sensor into the band holder, wrap and fasten the band around the cylinder, move it to the required detection position, then tighten the sensor and band fasteners. Select the complete sensor order code to match the required supply voltage, output circuit, wiring and cable length; CMSG/DMSG here identify compatible sensor profiles. The 2022 Chinese MBL selection specifies CMSG/DMSG profiles and the bore-matched round-body band. The supplied English edition also lists EMSG; that additional edition entry does not change the Chinese CMSG/DMSG selection stated here. Select the complete electrical sensor code separately. Weight Reference 806 g — catalog reference weight. The cylinder reference is 794 g from the separately labelled MBL table for 40 mm bore, 100 mm stroke and CA rear cover plus the printed 12 g magnetic-piston allowance (2022 Chinese catalog, printed page 426). PT, G and NPT options have no separate weight allowance on that page. All catalog weights and estimates are for reference only; actual product weight prevails. Force Reference Calculated theoretical force at 0.5 MPa: extension 628.0 N; retraction 527.5 N, using bore 40 mm and rod diameter 16 mm. This pressure × effective-area calculation excludes friction, acceleration and safety/load factors; it is not a guaranteed usable load. Check the actual operating pressure and mechanism load. Internal Components and Materials Component Catalog material Piston rod S45C, hard-chromed and ground Tube, covers and piston Aluminum alloy Hexagon nut Carbon steel Fasteners Alloy steel O-rings NBR Bumper / cushion ring TPU Wear ring Wear-resistant material Magnet Plastic magnet Numbered material reference from the MBLC-CA cutaway in the 2022 Chinese catalog, printed page 114. The shared body parts are identified below; this ordinary MBL model uses bumper cushioning, not the adjustable pneumatic cushion of MBLC. The piston magnet is present only in S models. Parameter Details 1 — Rod hexagon nut Carbon steel 2 — Piston rod S45C, hard-chromed and ground 3 — Front-cover seal NBR 4 — Front-cover nut Carbon steel 5 — Front cover Aluminum alloy 7 — Cylinder tube Aluminum alloy 8 — O-ring NBR 9 — Piston Aluminum alloy 10 — Piston seal NBR 11 — Magnet (magnetic version only) Plastic magnet 12 — Wear ring Wear-resistant material 13 — Screw Alloy steel 14 — Rear cover Aluminum alloy Series Ordering Reference Standard strokes listed for this bore and operating variant: 10, 15, 20, 25, 30, 40, 50, 60, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 mm. These are alternative order selections; they are not additional travel available from the current cylinder. Select the operating variant, bore, stroke, magnetic option, rear-cover form, mounting accessory and pipe-thread option from the corresponding ordering chart. Do not transfer rear-cover or mount choices between single-rod, double-rod and adjustable-stroke versions without checking their dedicated row. For the ordinary MBL series, the catalog lists a maximum standard stroke of 500 mm and an allowable special stroke of 800 mm. A special stroke requires its approved order and drawing; it is not extra travel available from the current cylinder. CA and U are the listed rear covers. CM is an old MAL rear-cover option and is not an MBL ordering code. Selection, Installation and Use Select the bore and operating pressure from the required force, then check the stroke, moving load, speed, cushioning and mounting method for the mechanism. Flush the air lines before connection. Keep sealing tape or sealant clear of the first 1–2 thread turns and prevent water, particles or corrosive gases entering the cylinder. Keep the rod axis aligned with the load. Provide guides or supports where needed; avoid direct side loading and twisting of an unguided piston rod. Start speed adjustment with the flow-control valve closed and open it gradually. Meter-out control is the usual reference circuit; verify the actual single-acting or double-acting circuit. Factory-prelubricated cylinders can be used without additional lubrication. If a lubricator is used, the general instructions specify additive-free ISO VG32 turbine oil and continued lubrication. Isolate the air supply and exhaust residual pressure before servicing. Secure retained loads and prevent unexpected movement on restart. Protect against freezing, corrosion and strong external magnetic fields where magnetic sensing is used. Circuit-selection reference at a theoretical 500 mm/s: for 40 mm bore the general catalog lists effective area 3.3 mm², valve examples 5V11006 / 5V12006, pneumatic-pilot alternatives 4A11006 / 4A12006, flow control PTL01, silencer BSL01, and tubing 8 mm OD × 5 mm ID. These are selection examples, not included components or a guaranteed installed speed; check actual port/thread adapters, pressure loss, tube length and load.

  Read more less

  $78.01

  View options
