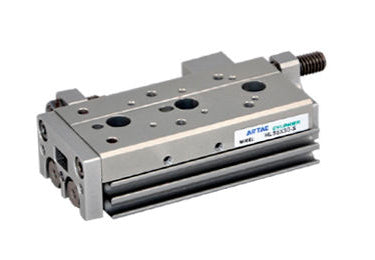

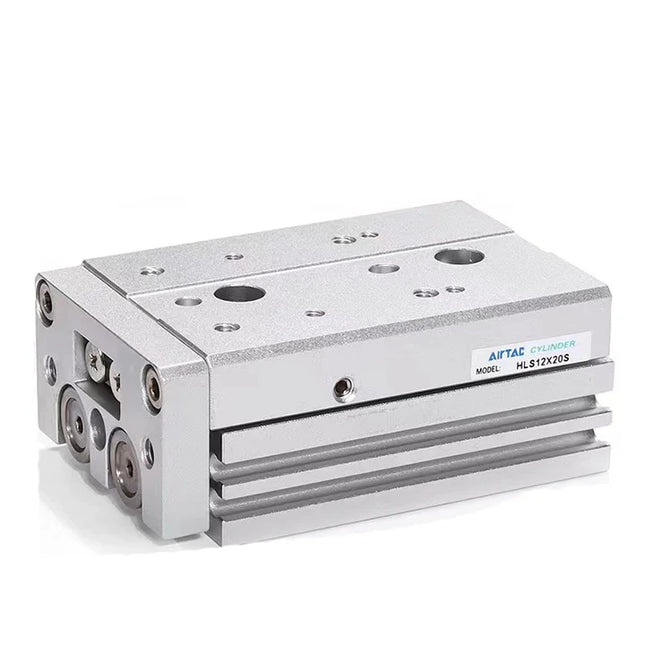

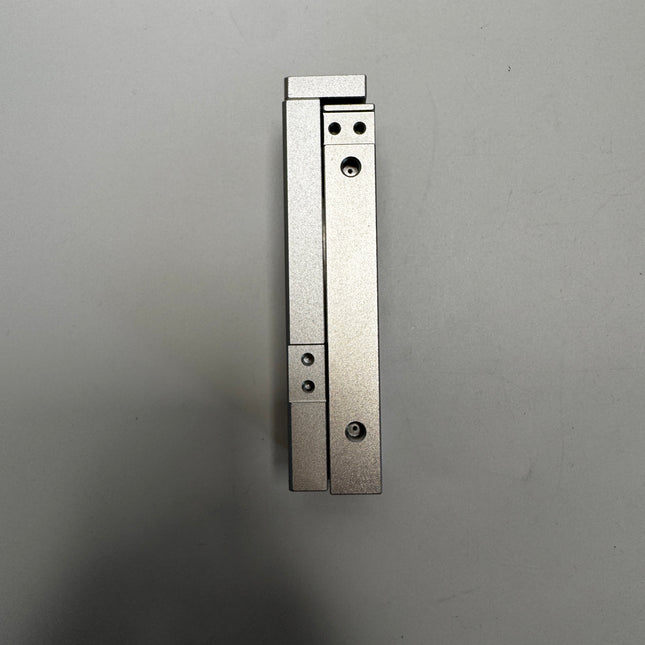

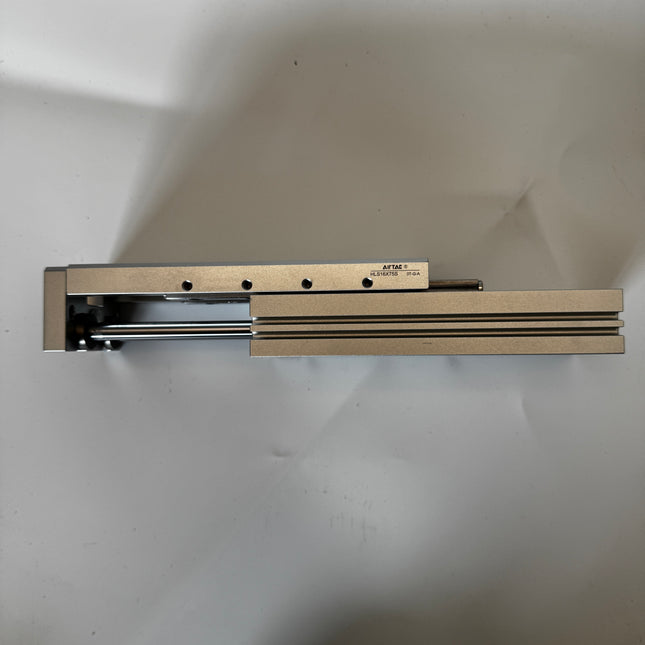

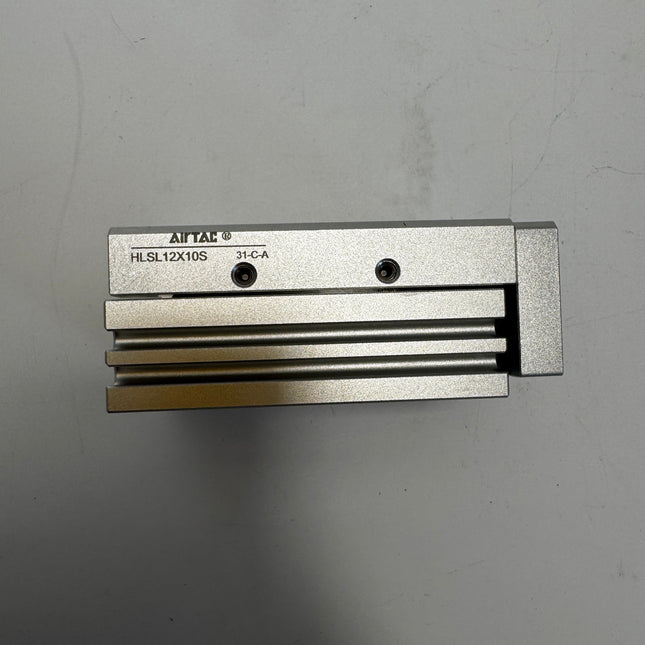

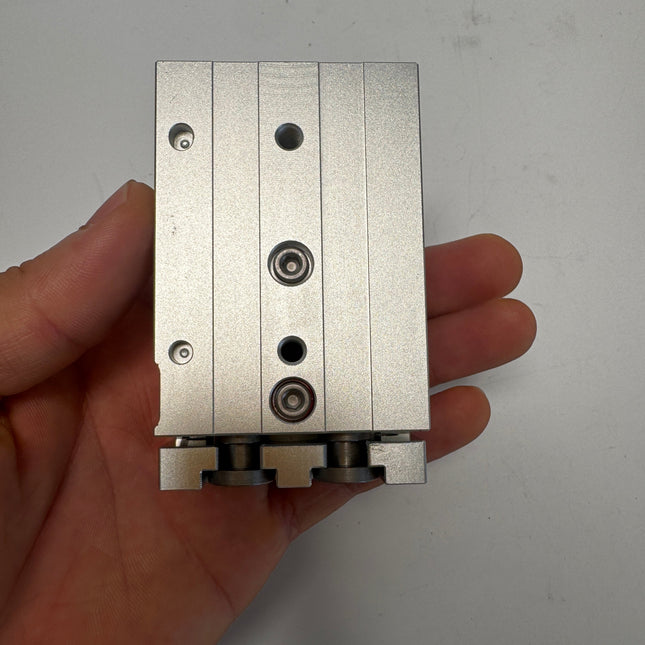

HLS/HLSL Series Double Axis Precision Slide Cylinder (Roller Type)
Product Features
- Cross Roller Guide: Adopted for high precision, smooth movement, and excellent non-rotating accuracy.
- Dual Piston Design: Compact structure with high output force.

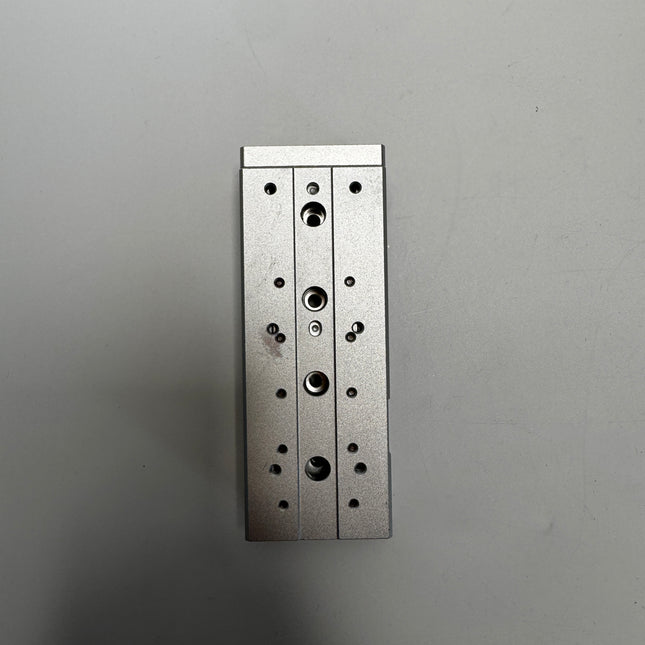

- Mounting Options: Available in Standard Type (HLS) and Symmetrical Type (HLSL) for flexible installation.

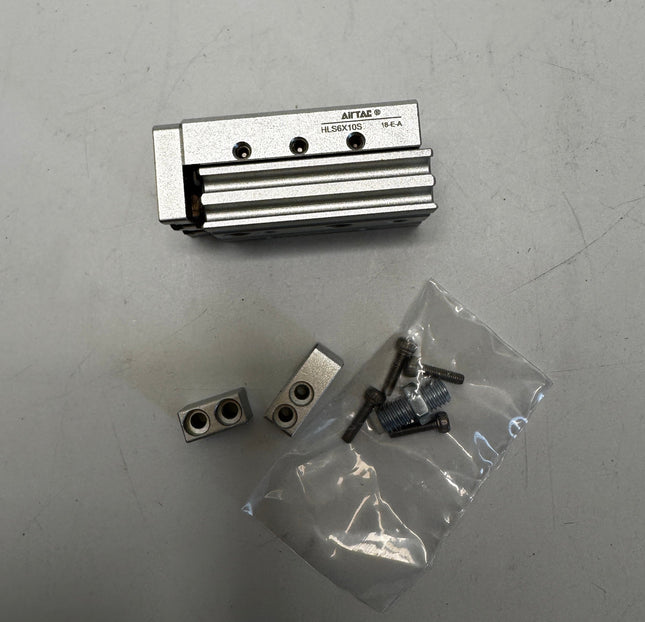

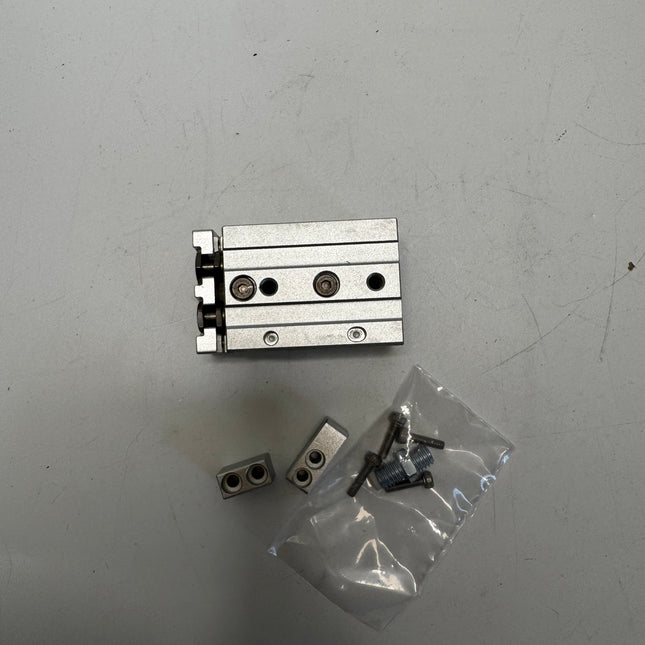

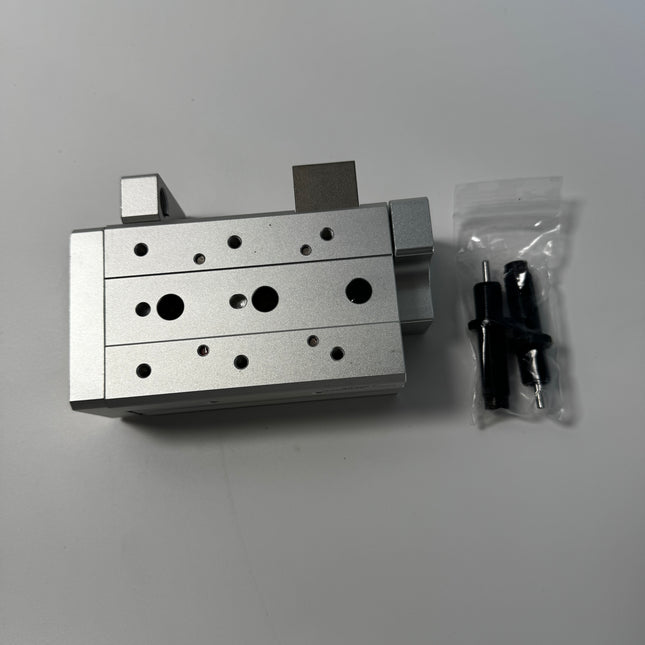

- Adjustable Stroke: Optional external stopper blocks allow for stroke adjustment (Adjuster Bolt or Shock Absorber types).
- Built-in Magnet: Standard configuration allows for sensor installation (CMSH, DMSH, EMSH).
- Various Cushioning: Fixed bumper cushioning or hydraulic shock absorbers available for end-stroke impact absorption.
Specifications
| Bore Size (mm) | 6 | 8 | 12 | 16 | 20 | 25 |
|---|---|---|---|---|---|---|
| Acting Type | Double Acting | |||||
| Fluid | Air (to be filtered by 40μm filter element) | |||||
| Operating Pressure | 0.15~0.7MPa (22~100psi) (1.5~7.0bar) | |||||
| Proof Pressure | 1.2MPa (175psi) (12.0bar) | |||||
| Temperature °C | -20~70 | |||||
| Speed Range mm/s | 50~500 | |||||
| Stroke Tolerance | Stroke ≤ 100: +1.0/0 | Stroke > 100: +1.5/0 | |||||
| Cushion Type | Bumper (Both ends), Shock Absorber | |||||
| Sensor | CMSH, DMSH, EMSH | |||||
| Port Size [Note 1] | M5 x 0.8 | PT1/8 | ||||
Note 1: PT thread, G thread, and NPT thread are available.
Stroke Specifications
| Bore (mm) | Standard Stroke (mm) | Max. Stroke |
|---|---|---|
| 6 | 10, 20, 30, 40, 50 | 50 |
| 8 | 10, 20, 30, 40, 50, 75 | 75 |
| 12 | 10, 20, 30, 40, 50, 75, 100 | 100 |
| 16 | 10, 20, 30, 40, 50, 75, 100, 125 | 125 |
| 20 | 10, 20, 30, 40, 50, 75, 100, 125, 150 | 150 |
| 25 | 10, 20, 30, 40, 50, 75, 100, 125, 150 | 150 |
Note: For other special strokes, please contact the company.
Ordering Code
Example: HLS 20 x 30 S AS
| No. | Item | Description |
|---|---|---|
| 1 | Model |
HLS: Double Axis Precision Slide Cylinder (Standard) HLSL: Double Axis Precision Slide Cylinder (Symmetrical) |
| 2 | Bore Size | 6, 8, 12, 16, 20, 25 mm |
| 3 | Stroke | Refer to Stroke Specifications |
| 4 | Magnet | S: With Magnet |
| 5 | Adjuster Option [Note 1] |
Blank: Basic type (No external stopper) A: Adjuster Bolt at both ends B: Shock Absorber at both ends AS: Adjuster Bolt at front (extension side) BS: Shock Absorber at front (extension side) AF: Adjuster Bolt at rear (retraction side) BF: Shock Absorber at rear (retraction side) |
| 6 | Thread Type [Note 2] |
Blank: PT Thread G: G Thread T: NPT Thread |
Note 1: Φ6 bore size is not available with shock absorbers (Types B, BS, BF are N/A).
Note 2: When port size is M5, this code is blank.
