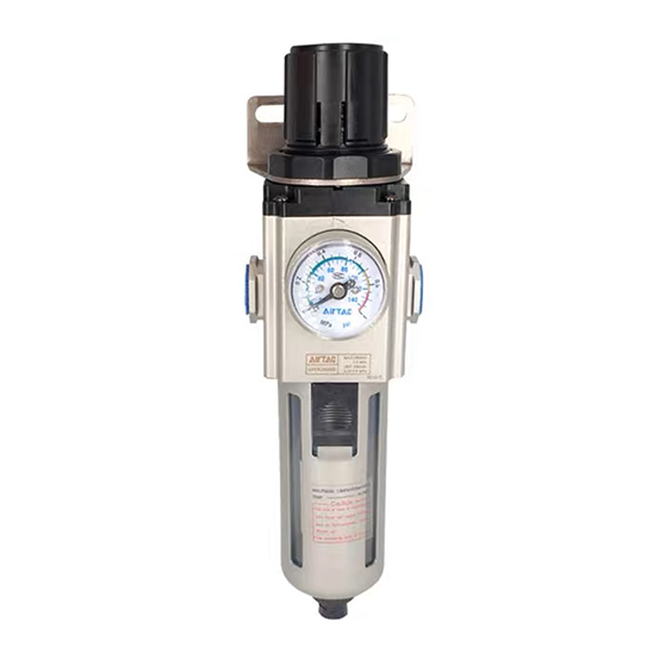

Precision Filter Regulator
Product Features
- The mounting bracket is interchangeable with the clasp, saving installation space. The dial is multifunctional, allowing for clear and precise readings.
- It features a self-locking pressure mechanism, which prevents pressure changes due to external interference.
- The pressure regulation knob uses a gentle-slope design, making pressure adjustment smoother and the feel better.
- In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).
- The unique diversion structure causes the airflow to rotate, which effectively separates the liquid from the gas and reliably filters solid particles.
- Filtration precision options include 0.3μm and 0.01μm.
- Three drain types are available: semi-automatic & manual, and automatic.
- Bowl material options are PC, metal, or nylon, which can satisfy the needs of different environments.
- A variety of mounting brackets are available for selection.
Specifications
| Model | GPFR200-06 | GPFR200-08 | GPFR300-08 | GPFR300-10 | GPFR400-10 | GPFR400-15 | |
|---|---|---|---|---|---|---|---|
| Working Medium | Air | ||||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT3/8 | PT1/2 | |
| Filter Precision | 0.3μm or 0.01μm | ||||||
| Pressure Regulation Range | 0.15–0.9MPa (20–130psi) | ||||||
| Max Operating Pressure | 1.0MPa (145Psi) | ||||||
| Proof Pressure | 1.5MPa (215Psi) | ||||||
| Operating Temperature Range | -5–70°C (No freezing) | ||||||
| Rated Flow [Note 2] | M Type | 150L/min | 330L/min | 820L/min | |||
| D Type | 90L/min | 180L/min | 450L/min | ||||
| Water Bowl Capacity | 25CC | 60CC | 100CC | ||||
| Weight | 310g | 500g | 910g | ||||
Note 1: G and NPT thread types are available.
Note 2: Inlet pressure: 0.7MPa, outlet pressure: 0.5MPa. The rated flow rate changes with the inlet pressure. When the rated flow rate exceeds the above values, the oil mist will flow out to the secondary side. Please take note.
Note 2: Inlet pressure: 0.7MPa, outlet pressure: 0.5MPa. The rated flow rate changes with the inlet pressure. When the rated flow rate exceeds the above values, the oil mist will flow out to the secondary side. Please take note.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Series Code |
|
| 2 | Body Material |
|
| 3 | Port Size |
|
| 4 | Drain Type |
|
| 5 | Model Type |
|
| 6 | Bracket Code |
|
| 7 | Pressure Gauge |
|
| 8 | Filter Precision |
|
| 9 | Thread Code |
|
Note 1: The adjustable range for the low-pressure model is 0.4MPa (58psi).
