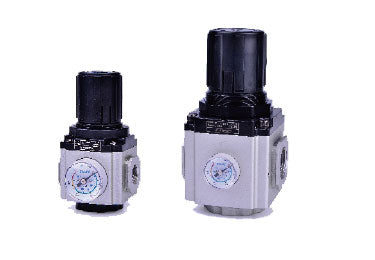

Regulator
Product Features
- The mounting bracket is interchangeable with the clasp, saving installation space. The dial is multifunctional, allowing for clear and precise readings.
- It features a self-locking pressure mechanism, which prevents pressure changes due to external interference.
- The pressure regulation knob uses a gentle-slope design, making pressure adjustment smoother and the feel better.
- Panel mounting is available, and an optional fixed bracket can be used for installation.
- In addition to the standard type, a low-pressure type is available (maximum adjustable pressure 0.4MPa).
Specifications

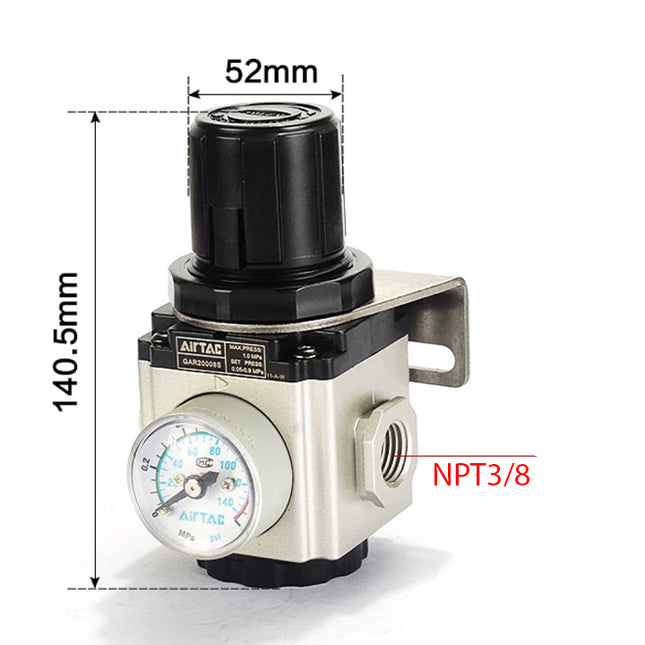

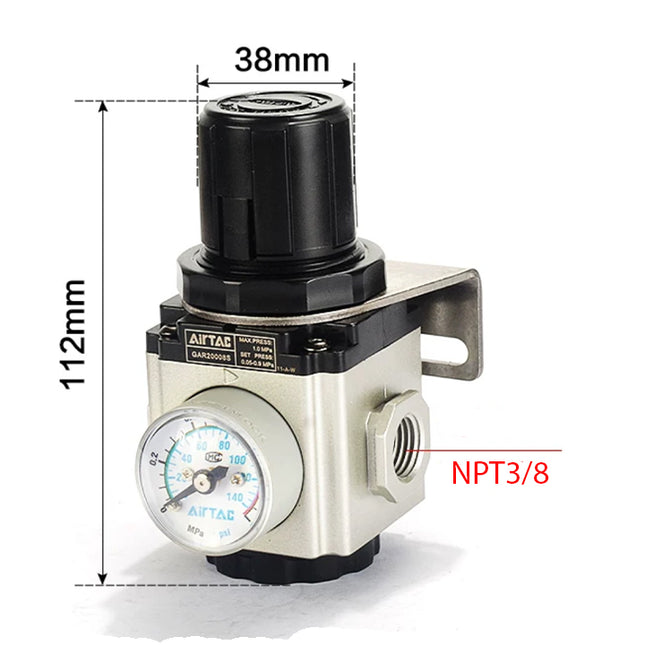

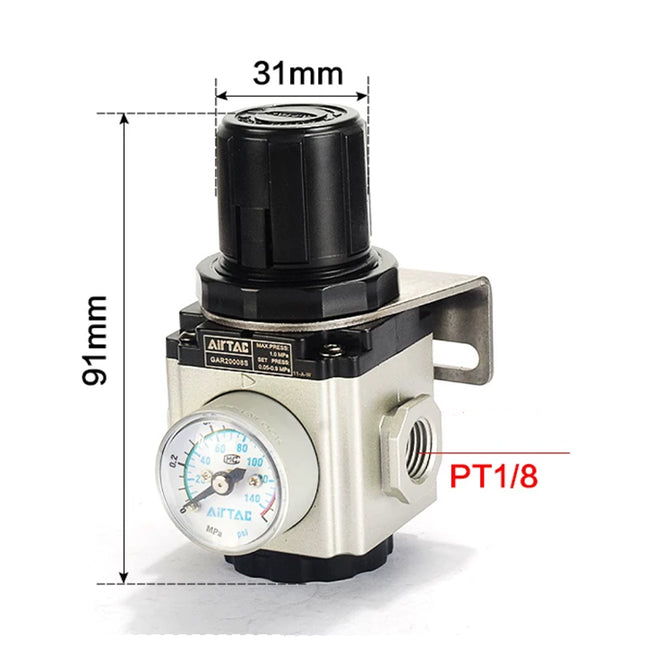

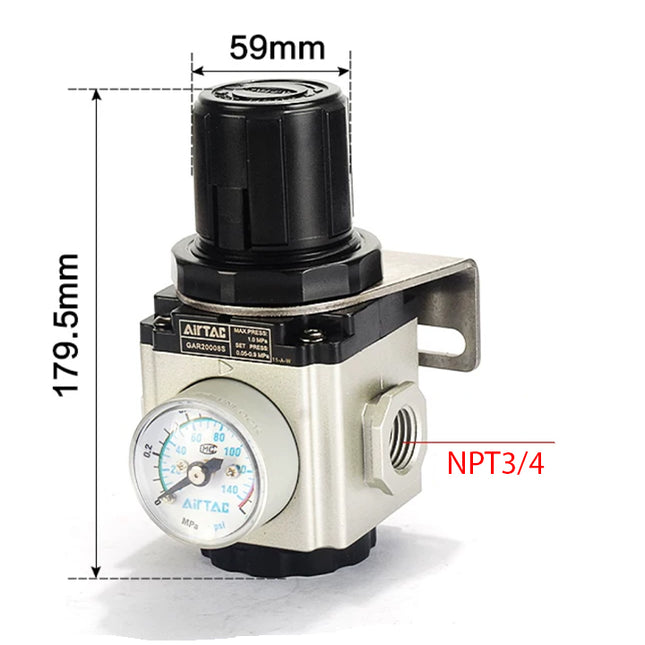

| Model | GAR200-06 | GAR200-08 | GAR300-08 | GAR300-10 | GAR300-15 | GAR400-10 | GAR400-15 | GAR500-20 | GAR600-20 | GAR600-25 |
|---|---|---|---|---|---|---|---|---|---|---|
| Working Medium | Air | |||||||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/8 | PT1/2 | PT3/4 | PT3/4 | PT1 |
| Pressure Regulation Range | 0.05–0.9MPa (7–130psi) | |||||||||
| Max Operating Pressure | 1.0MPa (145Psi) | |||||||||
| Proof Pressure | 1.5MPa (215Psi) | |||||||||
| Operating Temperature Range | -20–70°C | |||||||||
| Weight | 170g | 300g | 570g | 580g | 1390g | |||||

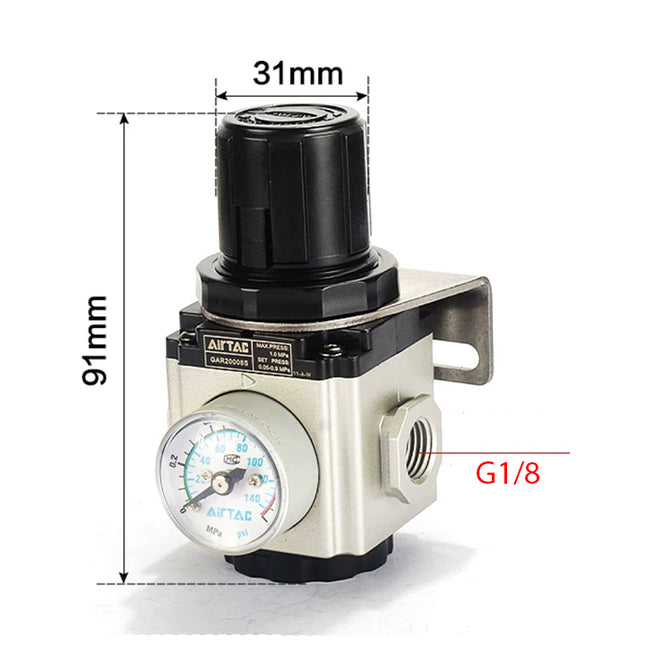

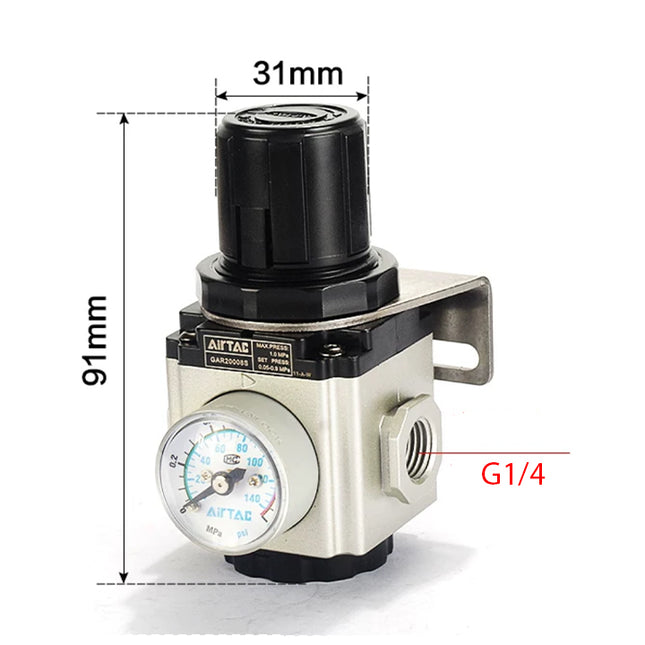

Note 1: G and NPT thread types are available.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Series Code |
|
| 2 | Port Size |
|
| 3 | Model Type Code |
|
| 4 | Bracket Code |
|
| 5 | Pressure Gauge |
|
| 6 | Thread Code |
|
| 7 | Overflow Code |
|
Note 1: The adjustable range for the low-pressure model is 0.05–0.4MPa (7–58psi).
