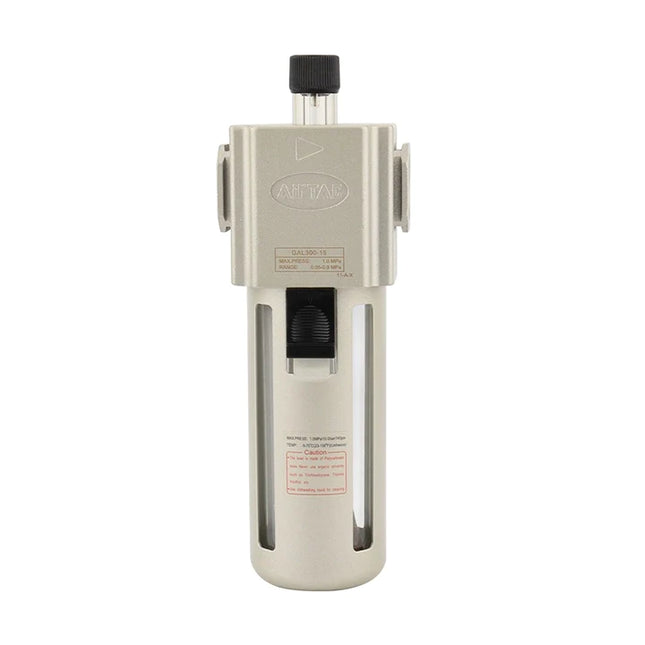

Lubricator
Product Features
- The oil drip structure uses a gap seal form, making the oil supply adjustment more stable and reliable.
- The oil supply adjustment ring can only rotate once, and the basic size of the oil drip is in a linear distribution. The amount of oil supplied can be calculated approximately based on the scale ring position.
- Special oil drip nozzle structure produces negative pressure at the outlet, resulting in a low atomization flow rate.
- Can be refilled with oil without stopping the air supply; large oil bowl capacity.
- Bowl material options are PC, metal, or nylon, which can satisfy the needs of different environments.

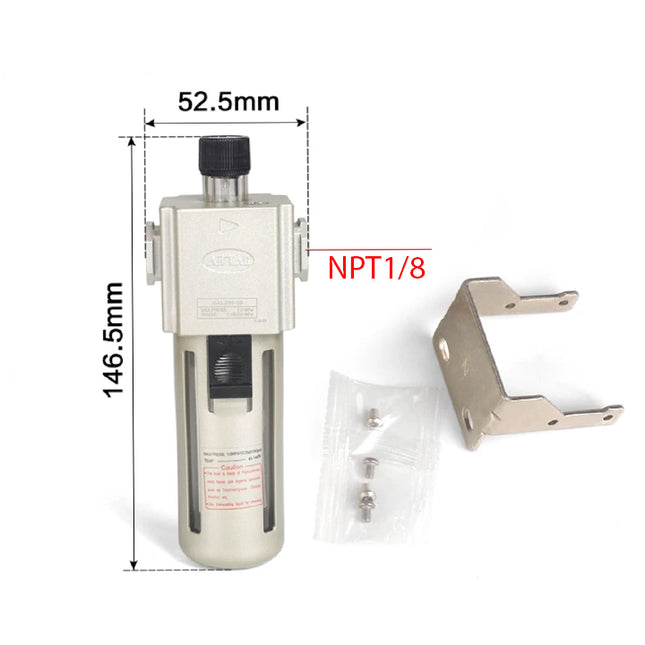

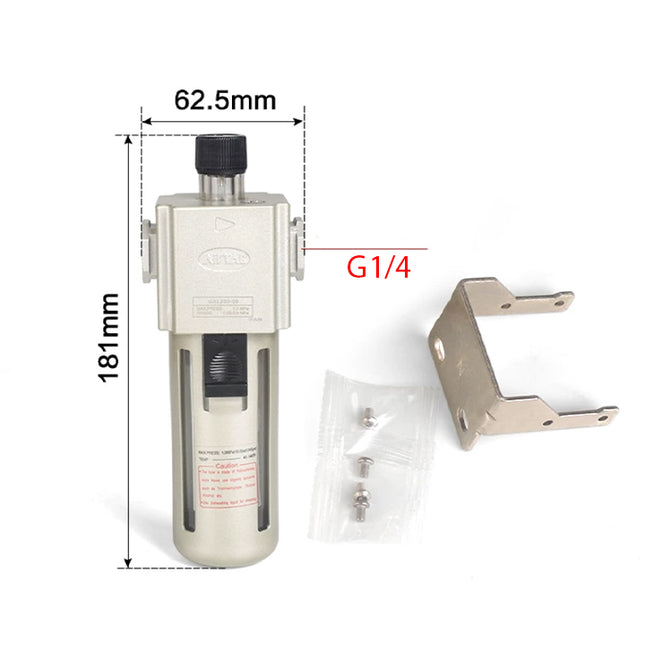

- An optional fixed bracket can be selected for installation.
Specifications
| Model | GAL200-06 | GAL200-08 | GAL300-08 | GAL300-10 | GAL300-15 | GAL400-10 | GAL400-15 | GAL500-20 | GAL600-20 | GAL600-25 |
|---|---|---|---|---|---|---|---|---|---|---|
| Working Medium | Air | |||||||||
| Port Size [Note 1] | PT1/8 | PT1/4 | PT1/4 | PT3/8 | PT1/2 | PT3/8 | PT1/2 | PT3/4 | PT3/4 | PT1 |
| Operating Pressure Range | 0.05–0.9MPa (7–130psi) | |||||||||
| Proof Pressure | 1.5MPa (215Psi) | |||||||||
| Operating Temperature Range | -5–70°C (No freezing) | |||||||||
| Recommended Lubricating Oil | ISO VG 32 or equivalent oil | |||||||||
| Oil Bowl Capacity | 36CC | 98CC | 185CC | 225CC | 410CC | |||||
| Weight | 200g | 370g | 660g | 700g | 1040g | |||||
Note 1: G and NPT thread types are available.
Product Ordering Code
| Position | Description | Options & Values |
|---|---|---|
| 1 | Series Code |
|
| 2 | Body Material |
|
| 3 | Port Size |
|
| 4 | Bracket Code |
|
| 5 | Thread Code |
|
