DMS, EMS, CMS Series Sensors & Accessories
Series Overview

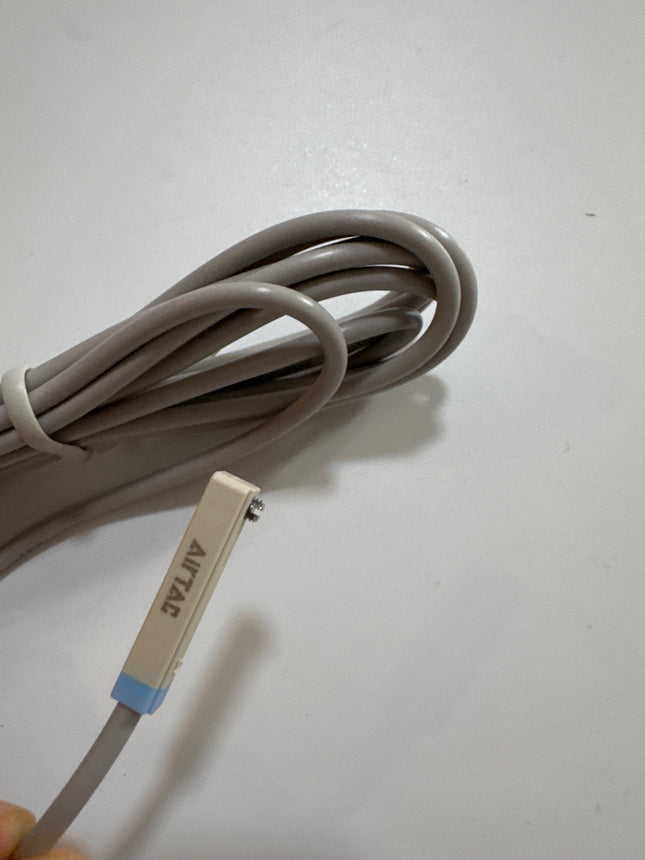

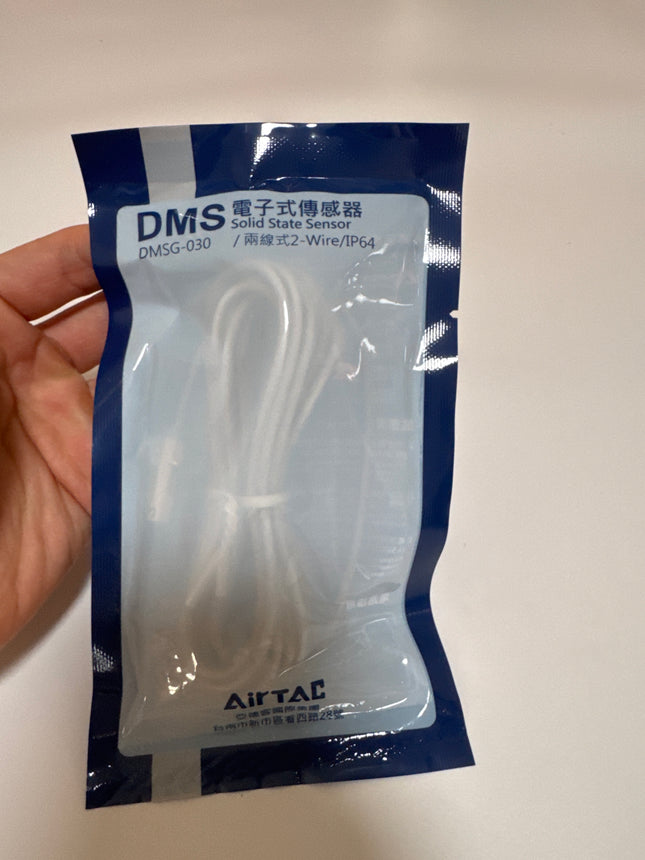

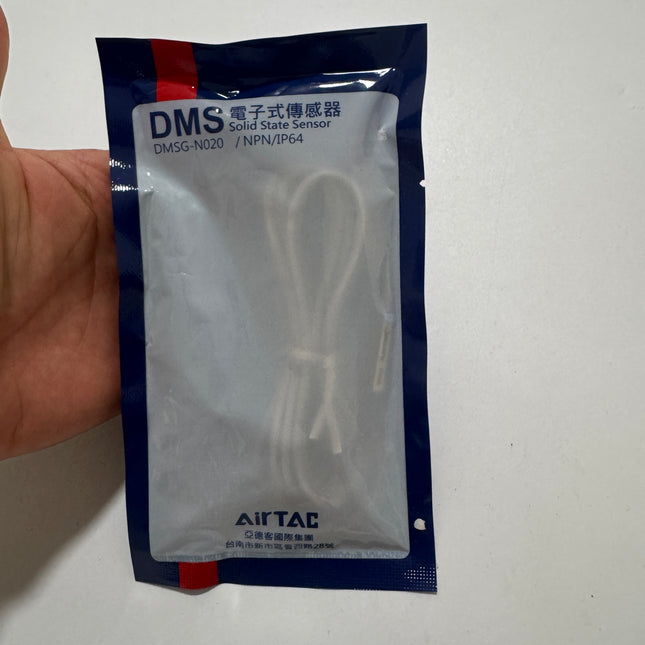

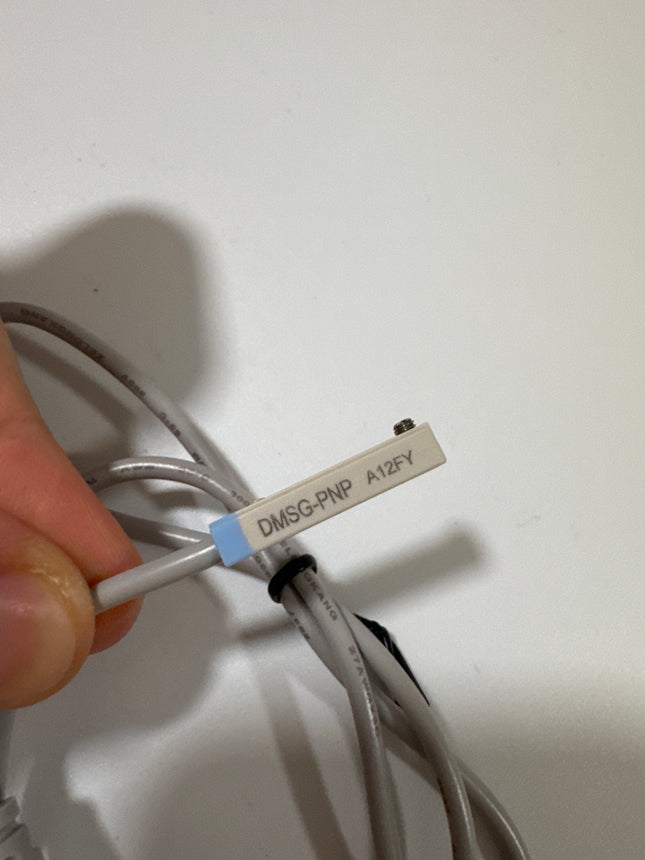

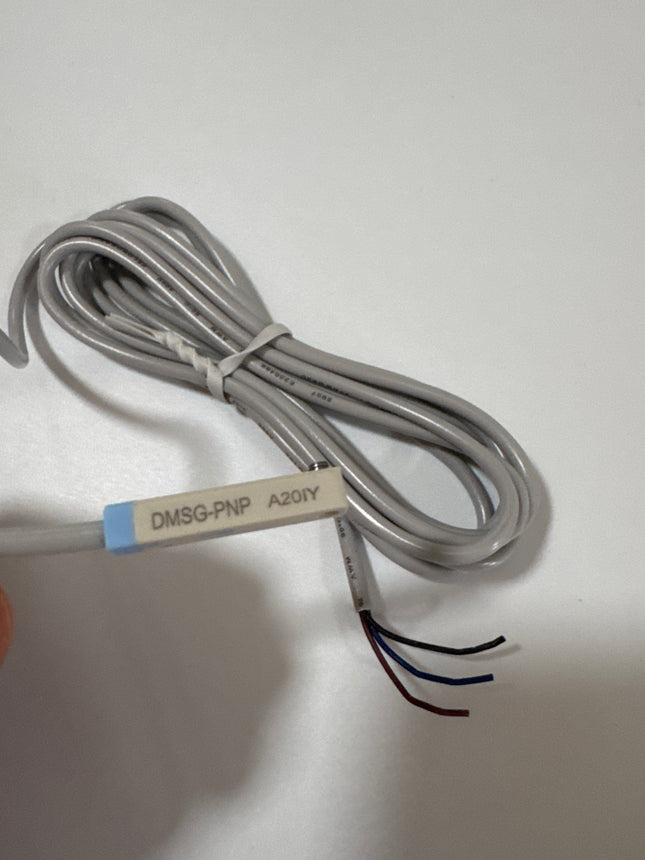

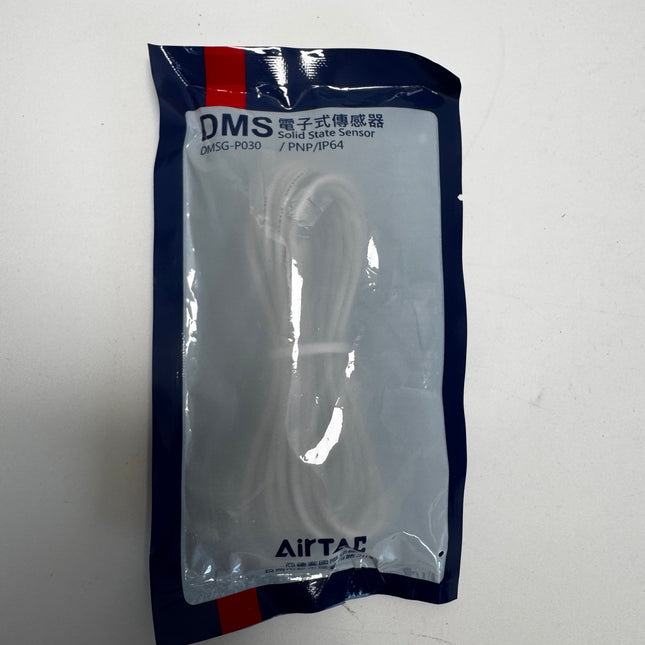

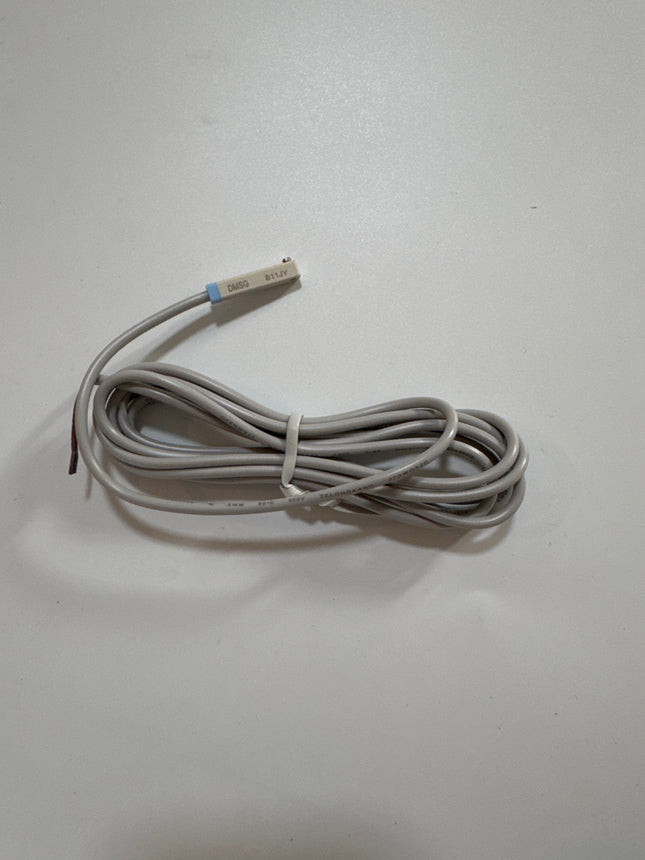

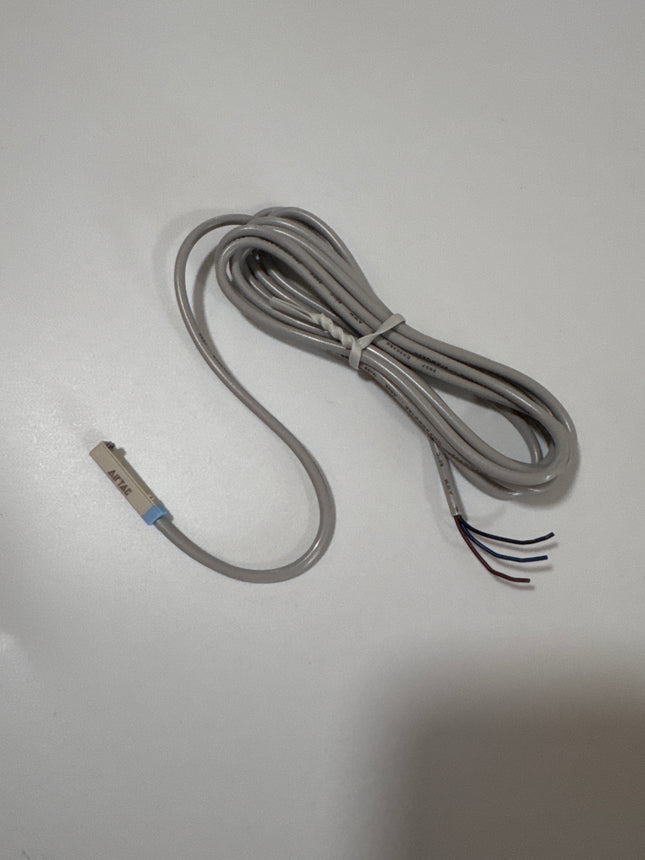

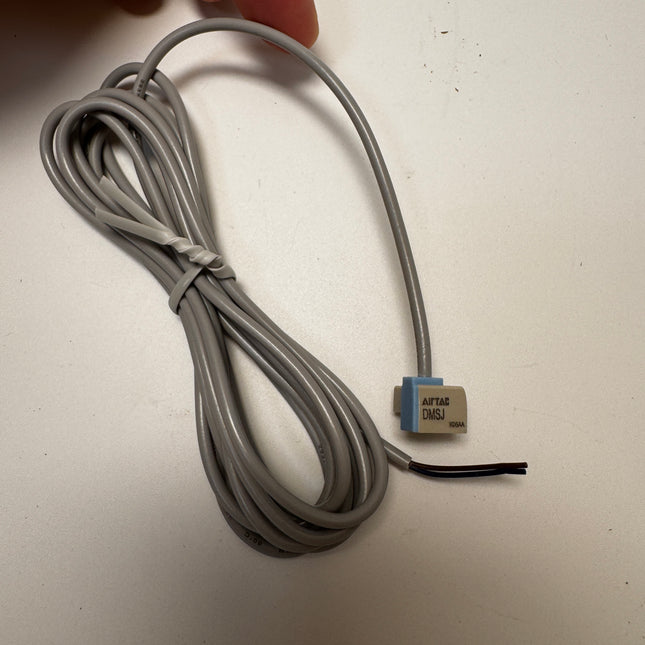

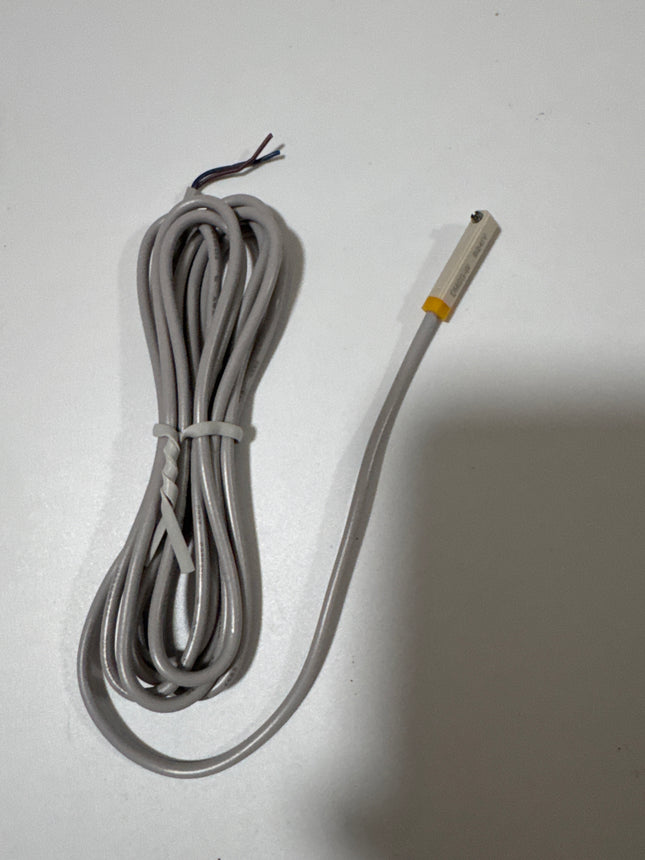

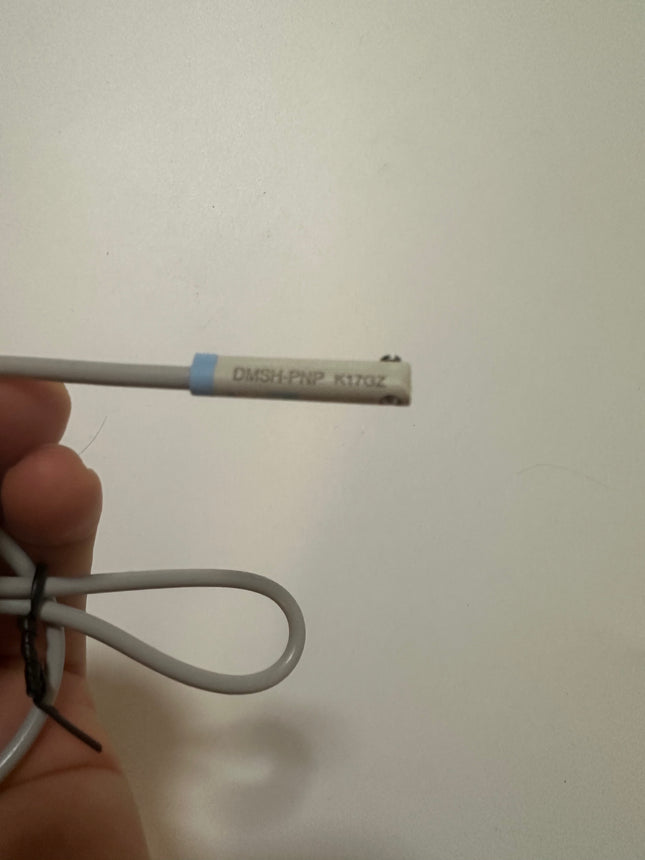

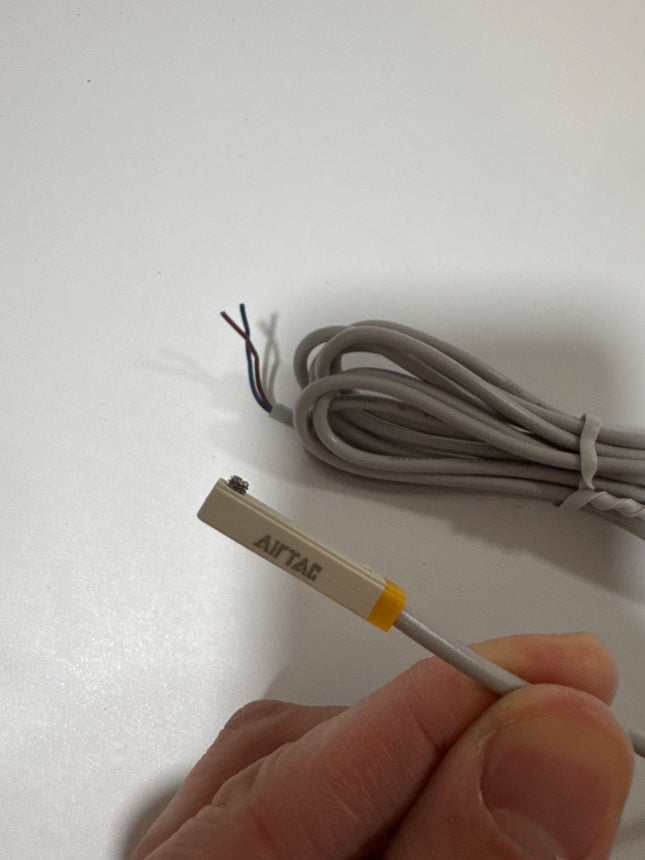

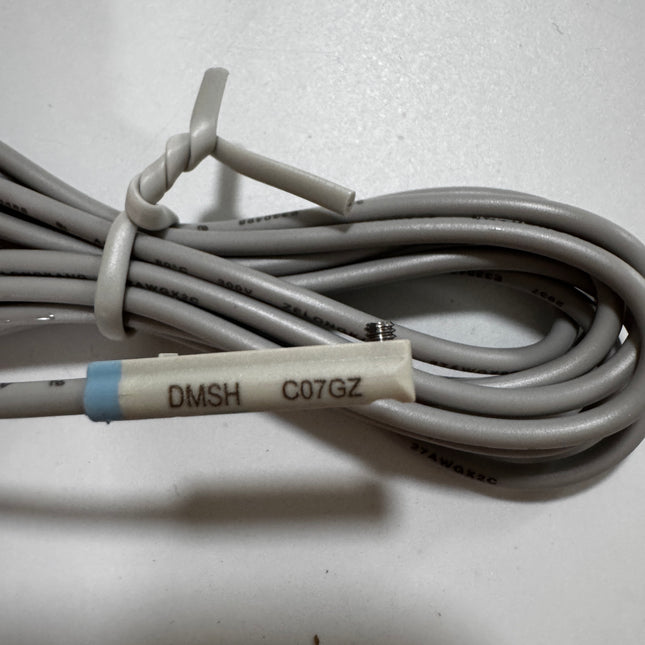

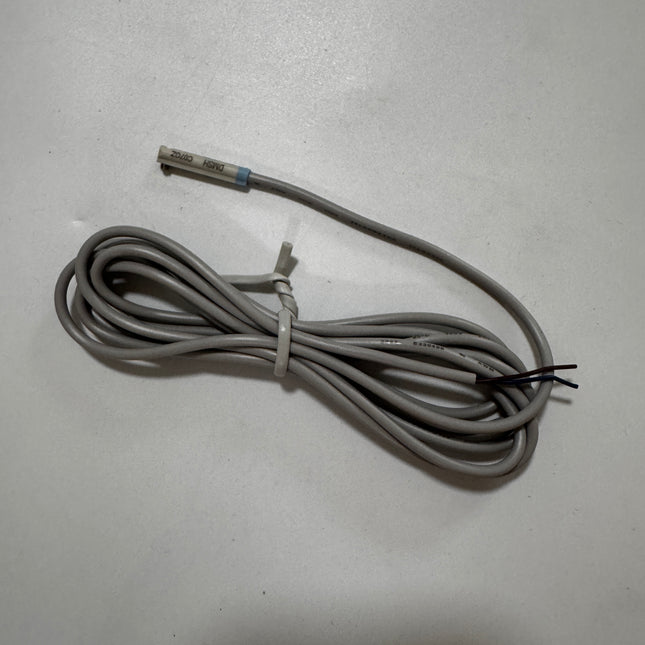

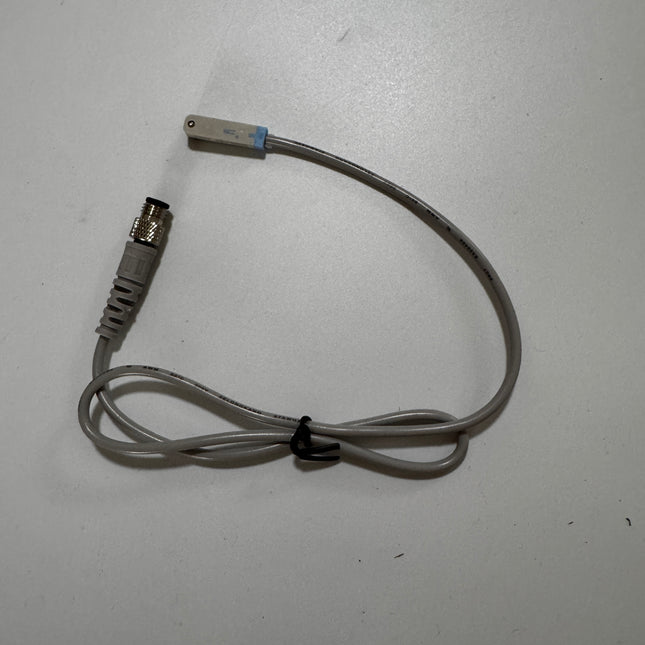

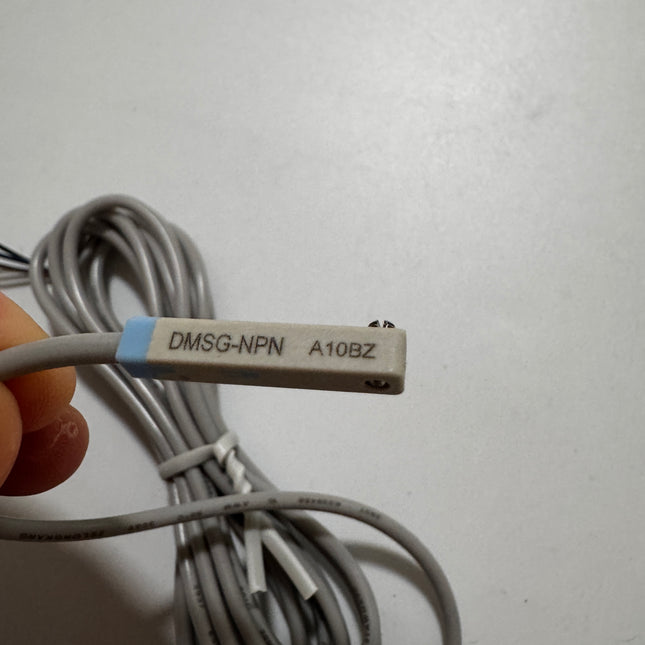

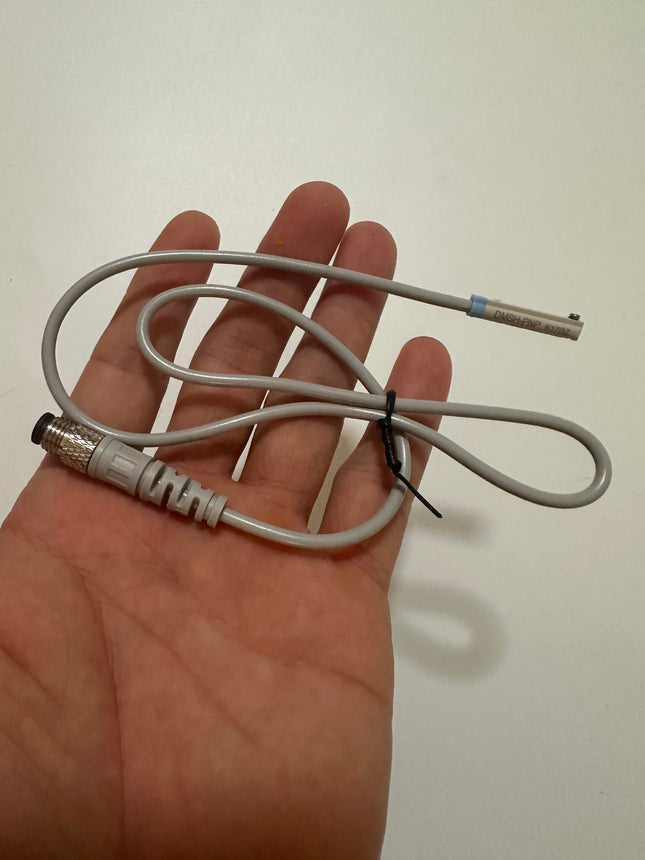

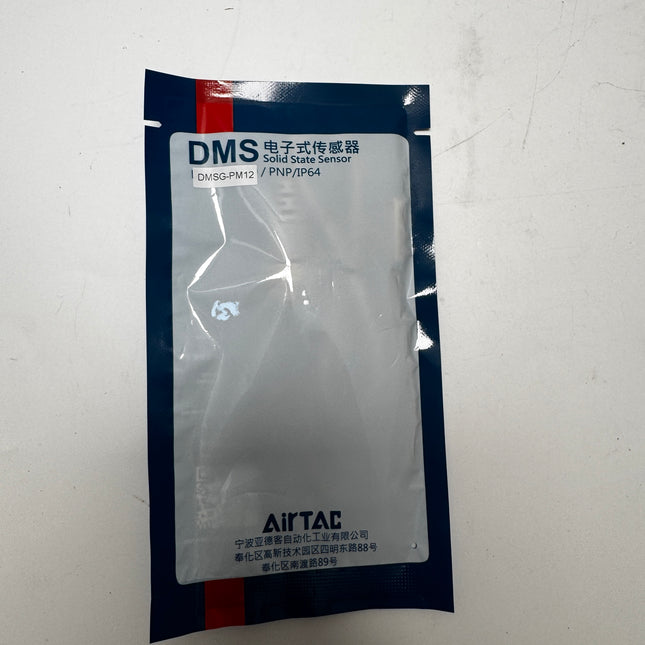

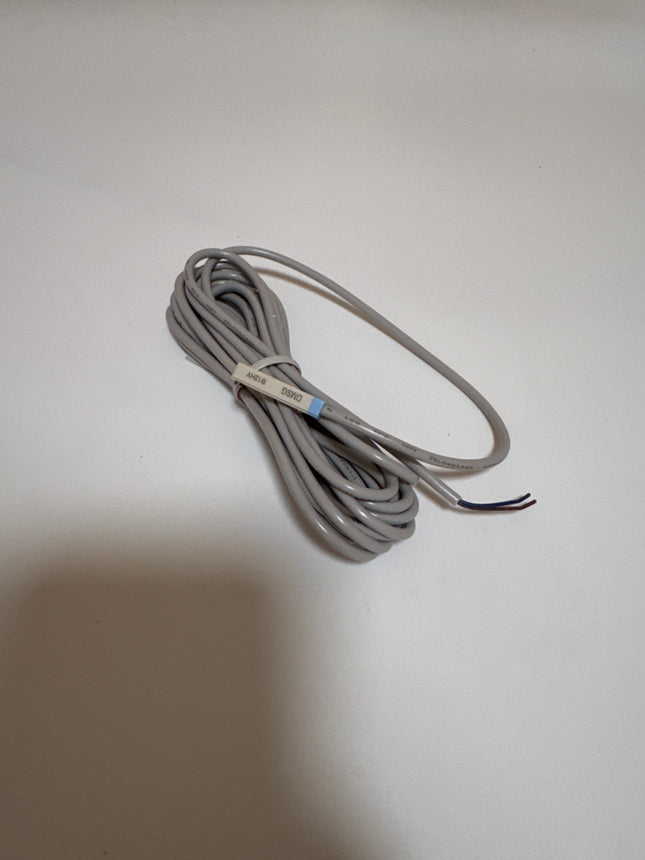

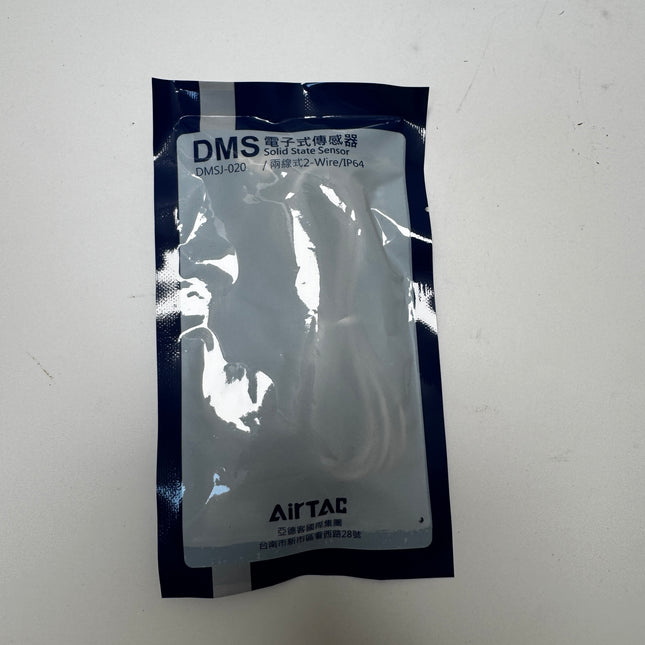

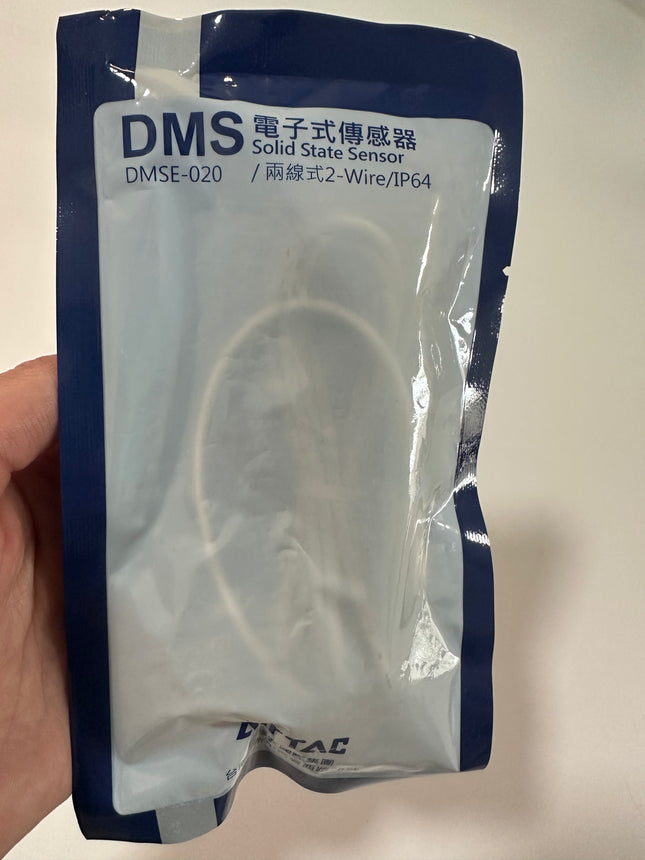

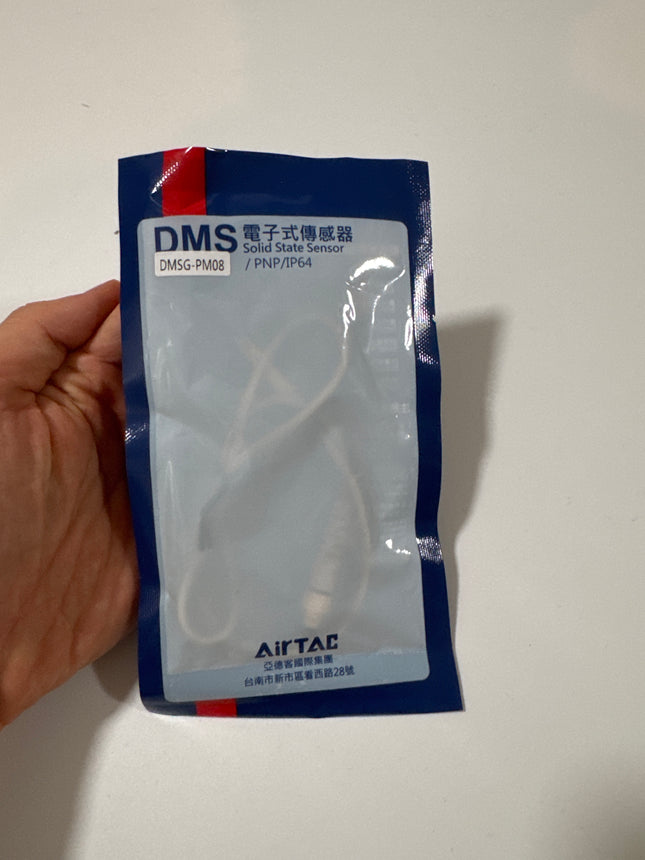

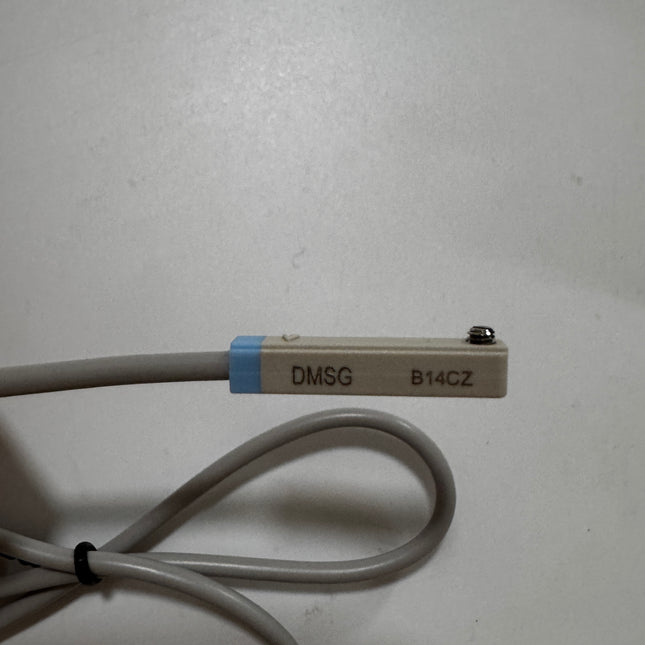

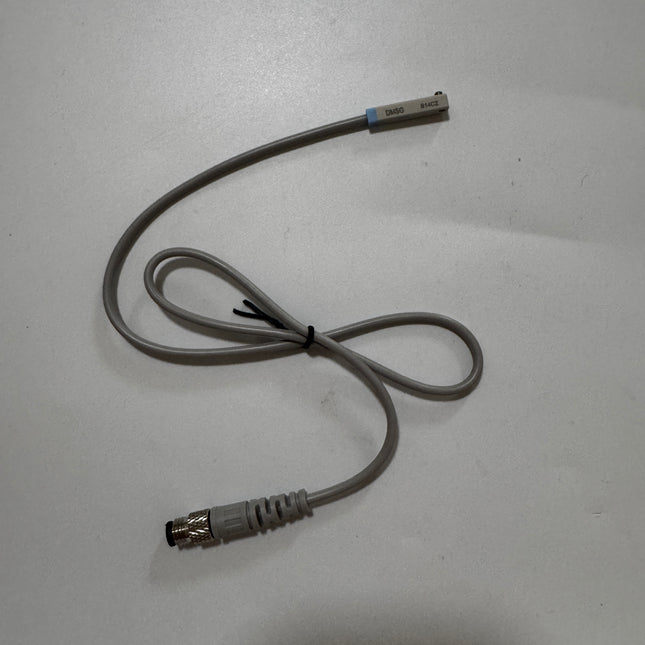

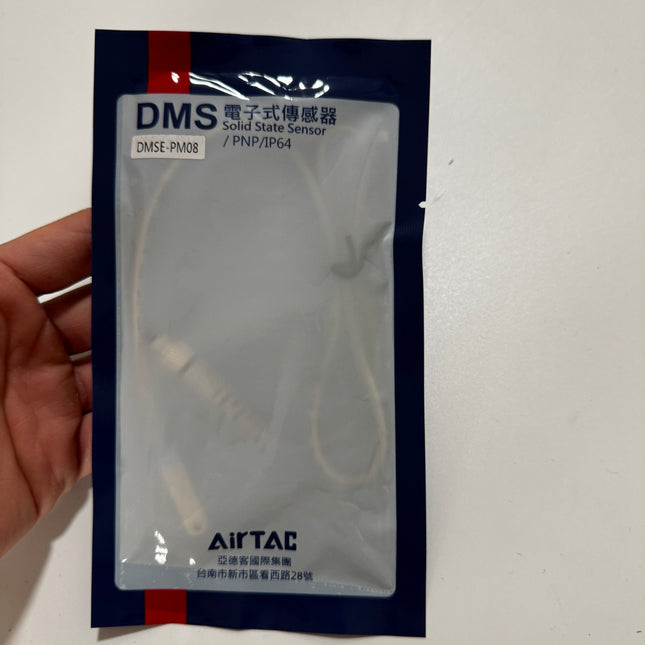

- DMS Series (Solid State): Standard electronic sensor. Features high response speed, long life, and reverse polarity protection. Available in 2-wire and 3-wire (NPN/PNP) configurations.

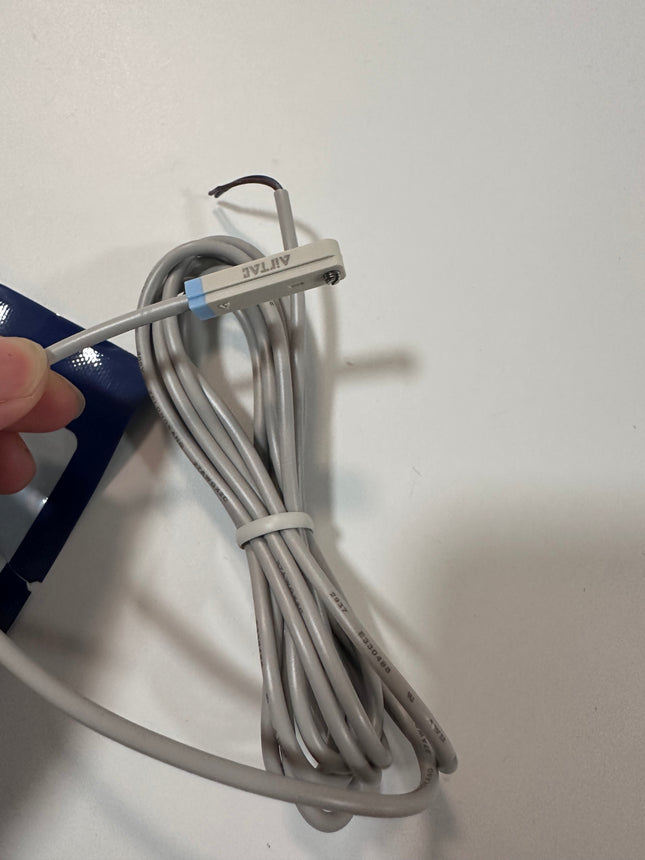

- EMS Series (Solid State): Similar to DMS but designed with a higher mounting profile, making it suitable for compact cylinders where the sensor groove is deeper.

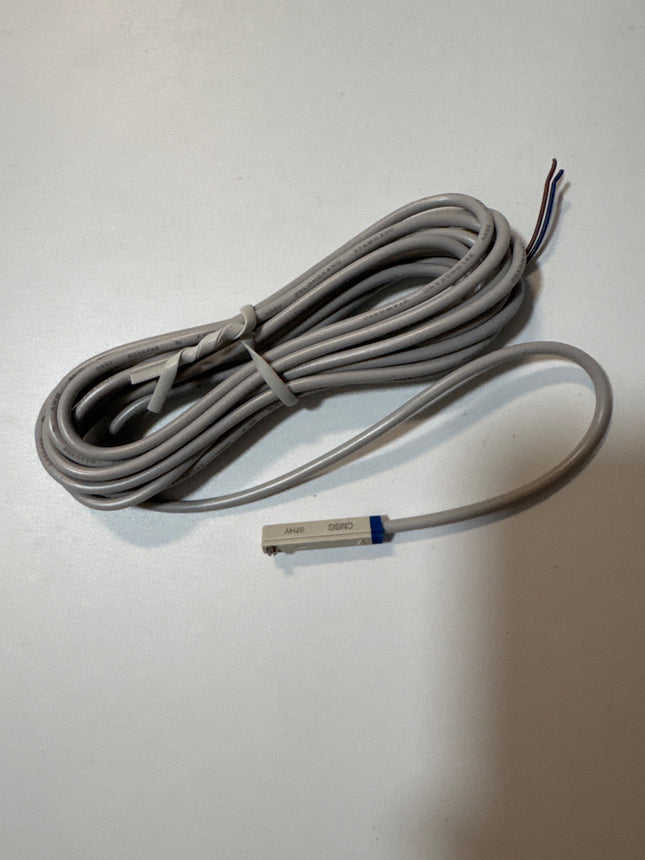

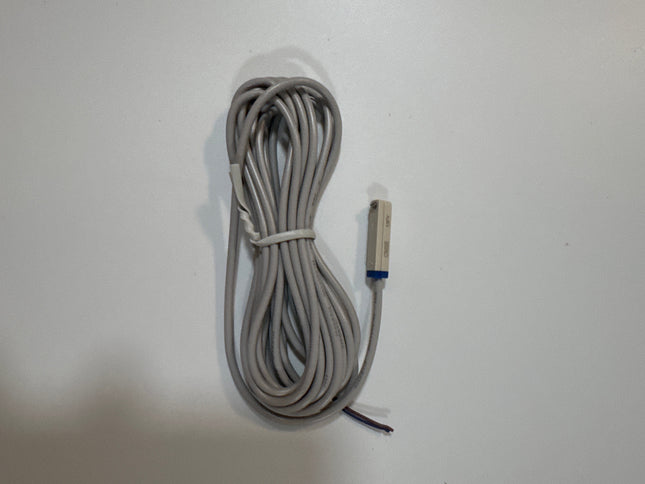

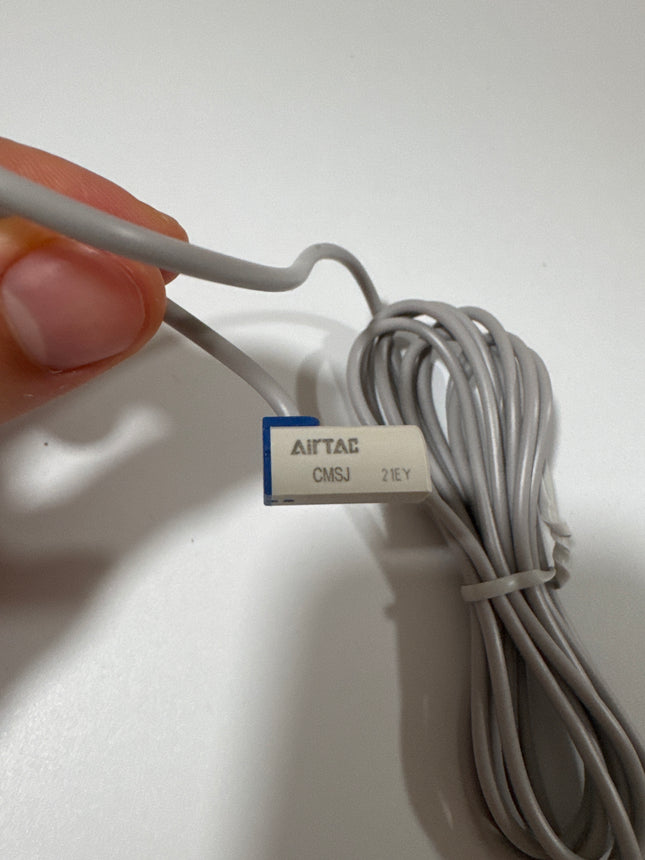

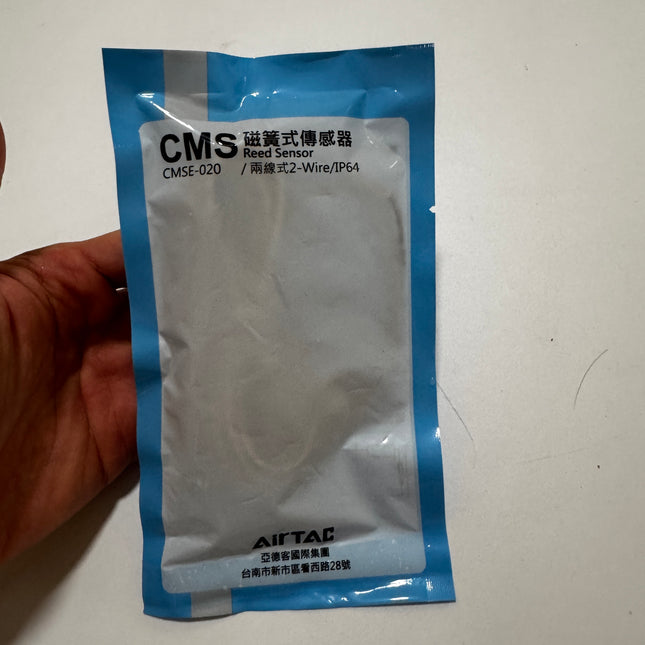

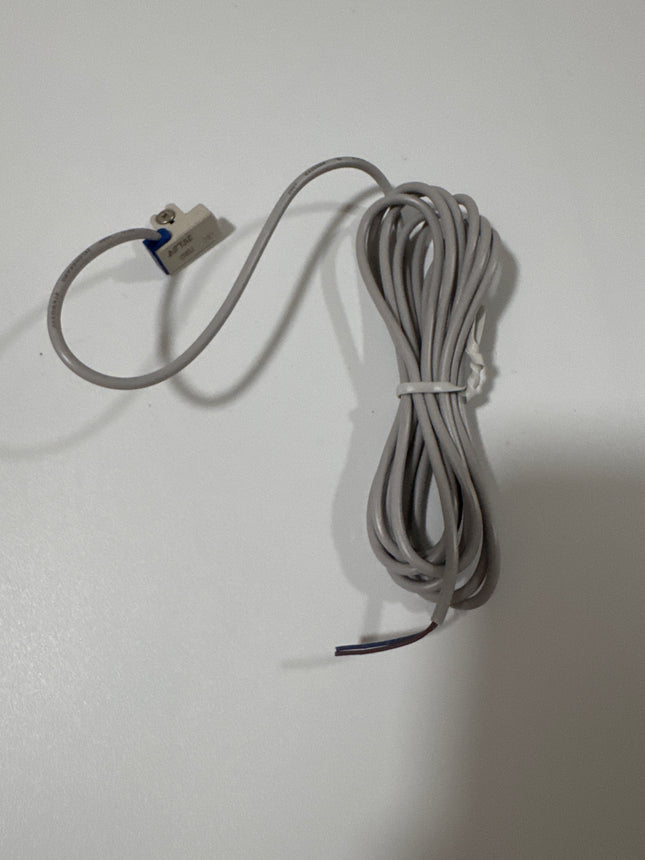

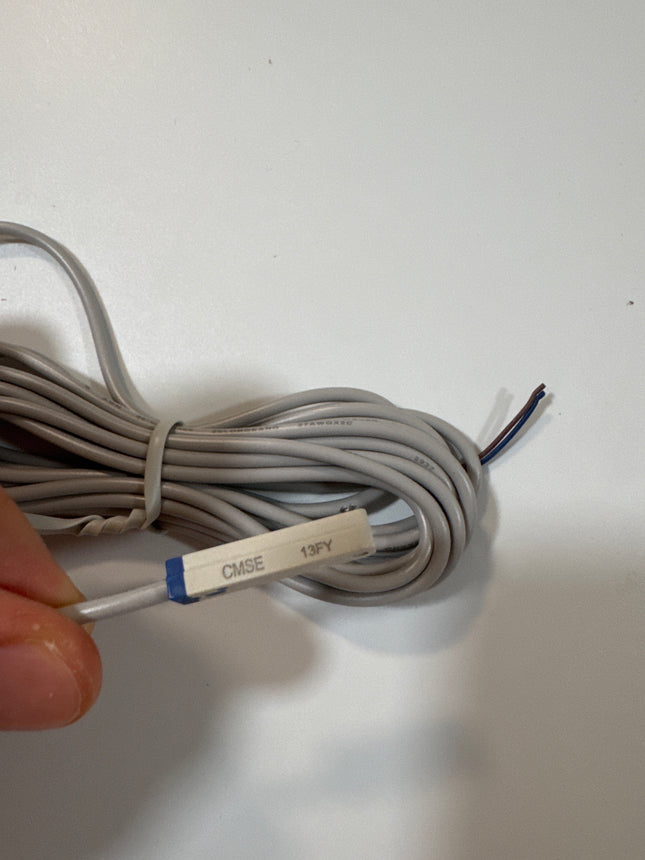

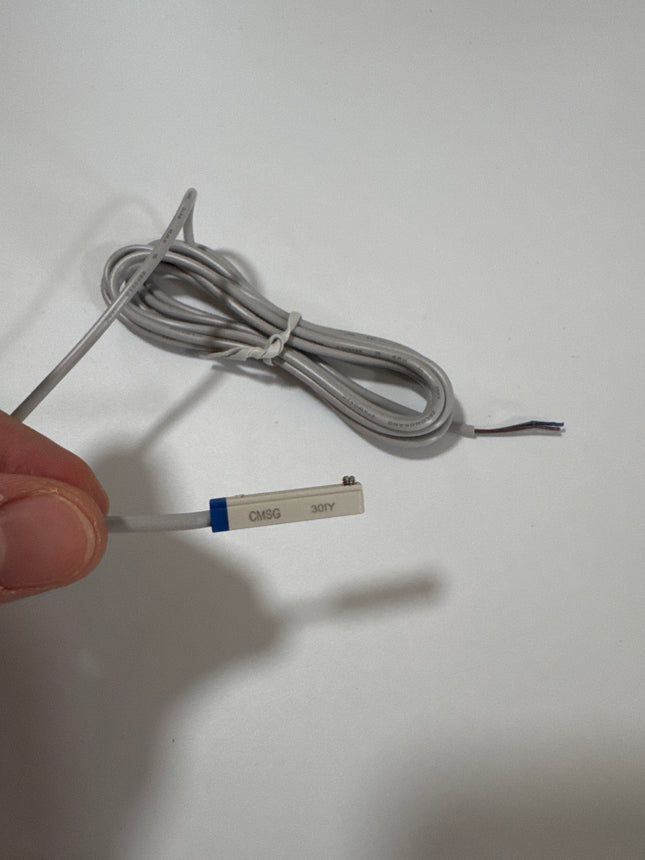

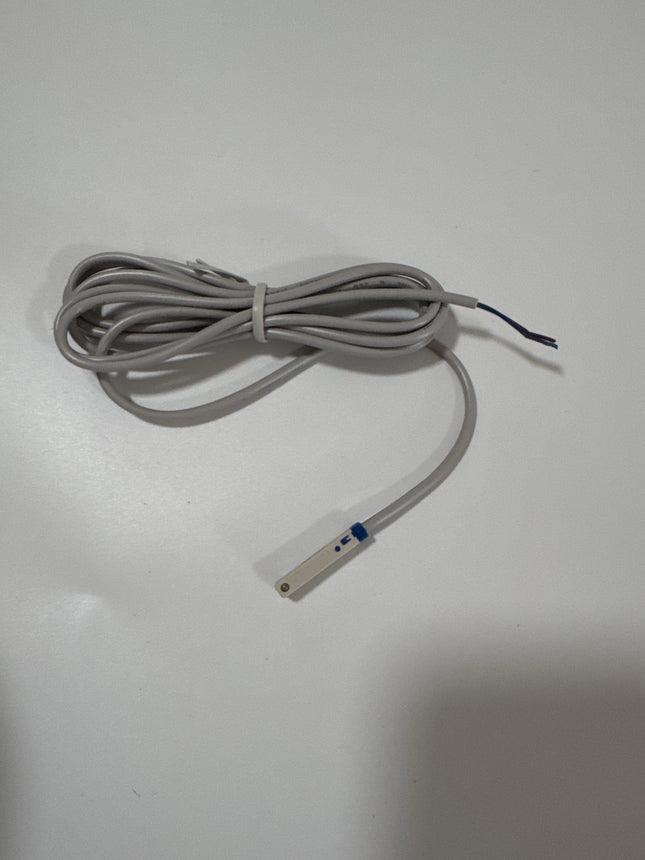

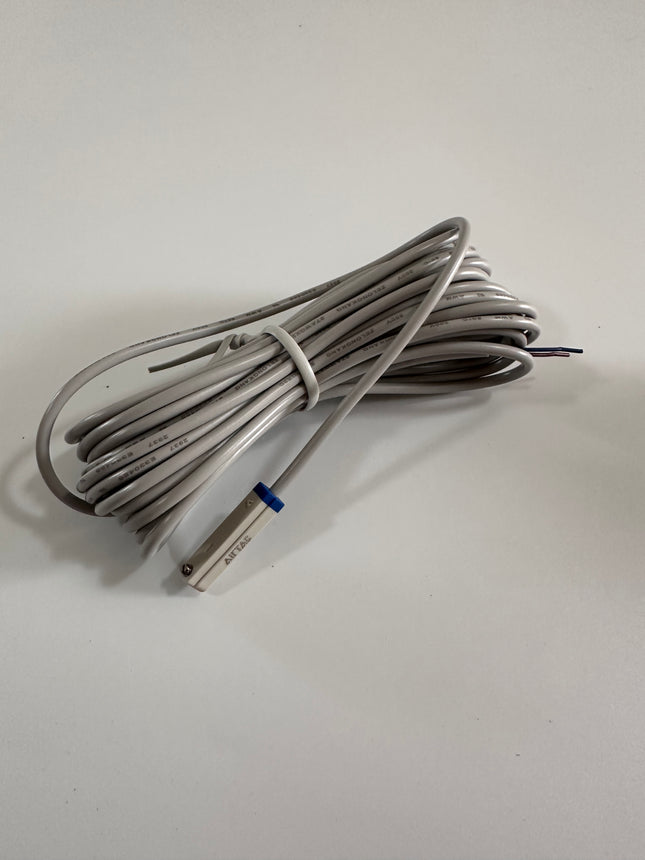

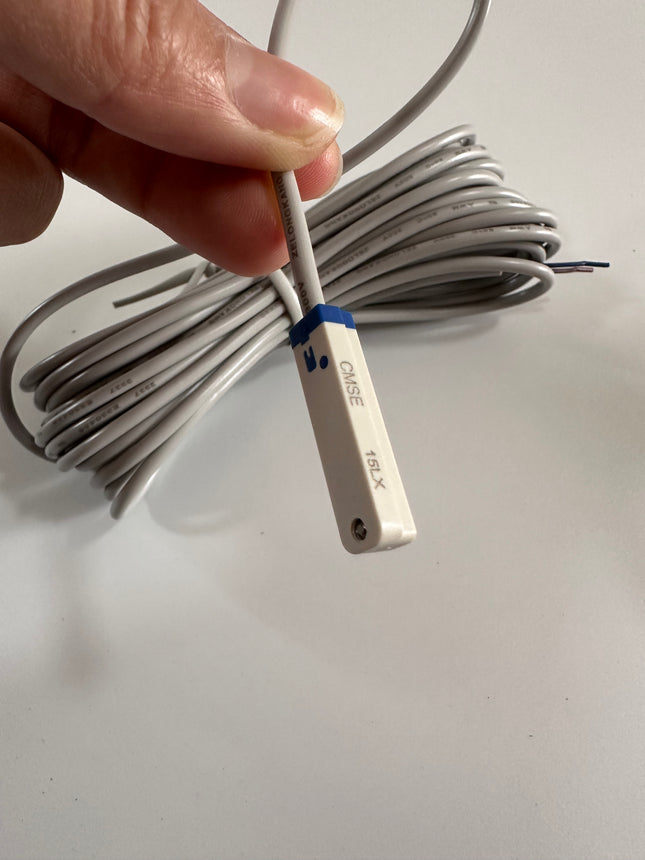

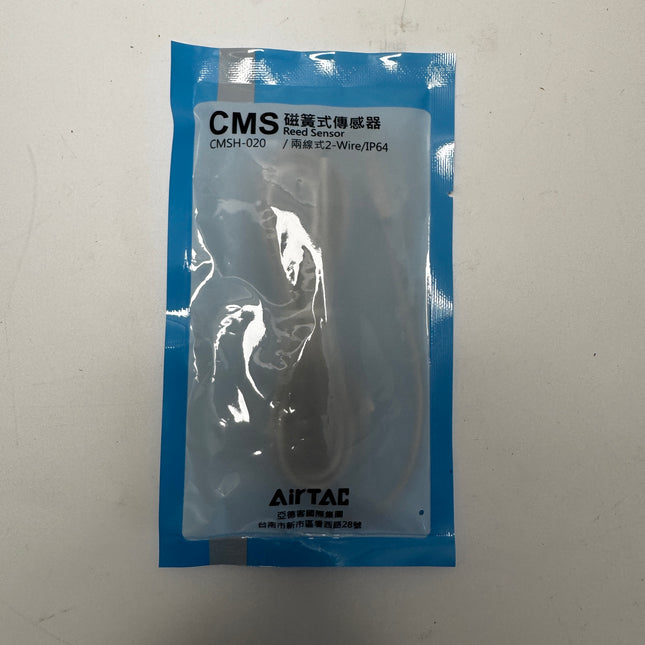

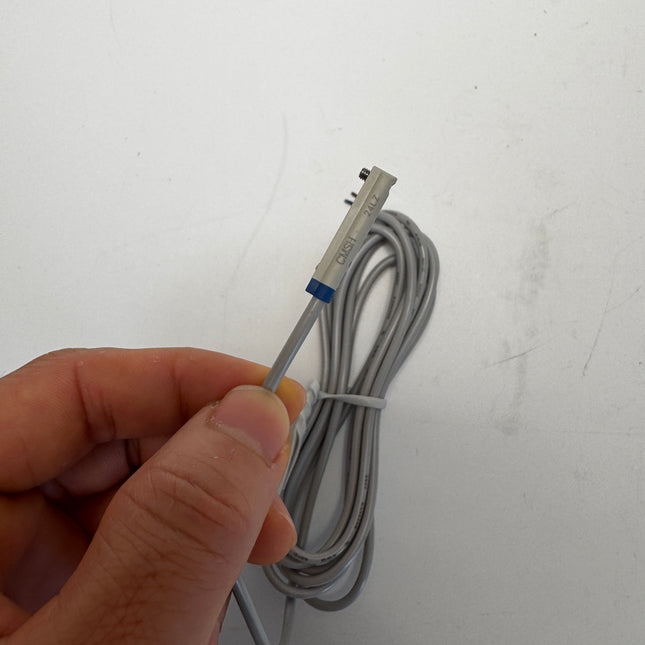

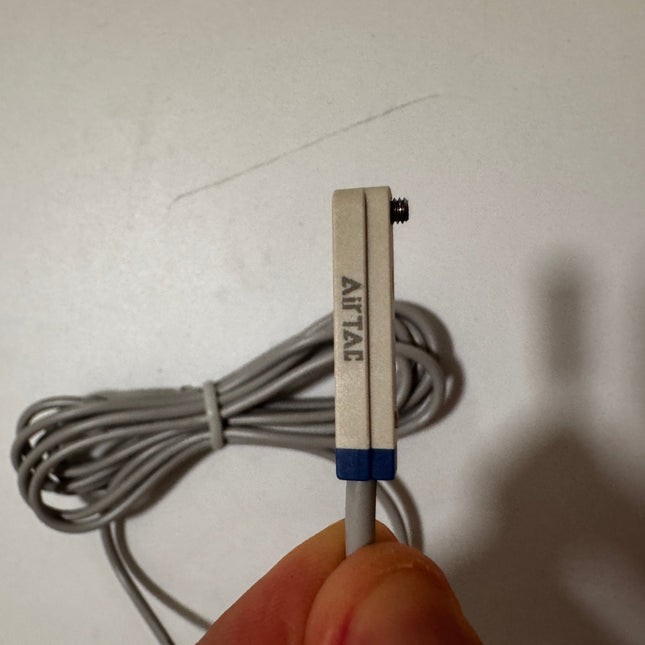

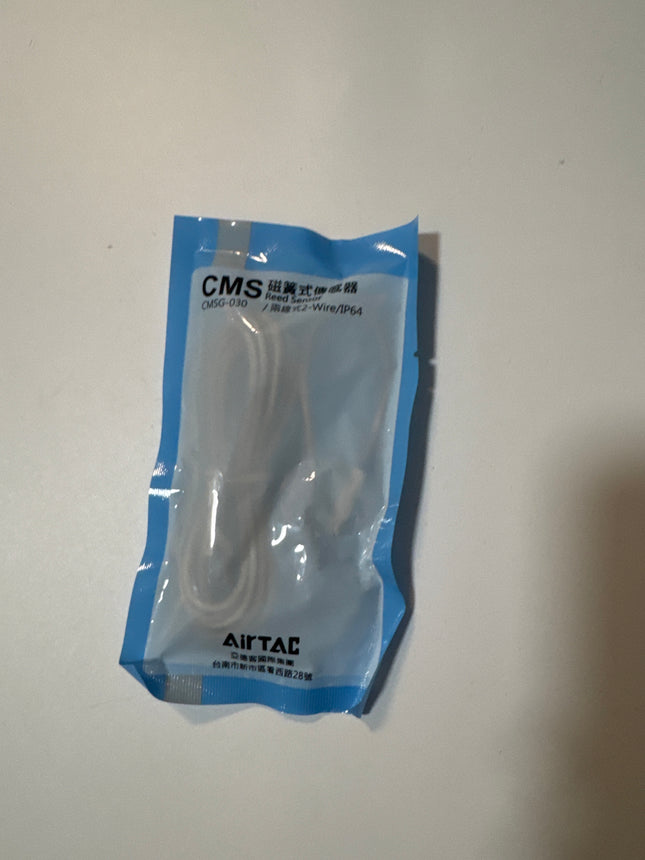

- CMS Series (Reed Switch): Magnetic reed switch type. Supports both AC and DC voltages. Available in standard and high-temperature models (Red).
Key Features
-
Industry Application Models:
- General Type (Blue): Standard application.
- Waterproof Type (Yellow): IP68 rated for wet environments.
- Mechanical Hand/High Flex (A05): Designed for robotics and drag chains, tested for high bending resistance.
- Oil Resistant (A06): Designed for environments with cutting fluids and oil mist.
- Robust Design: Strain relief (SR) structure at the cable exit prevents wire breakage. Made from high-impact engineering materials.
- Versatile Mounting: Compatible with various cylinder types using F-MQ (Round/Tie-rod) or F-SC (Tie-rod) mounting brackets.
Sensor Specifications Comparison
| Item | DMS / EMS (2-Wire) | DMS (3-Wire NPN/PNP) | CMS (Reed Switch) |
|---|---|---|---|
| Sensor Type | Solid State (Electronic) | Reed Switch (Magnetic) | |
| Voltage | 10V ~ 28V DC | 5V ~ 30V DC | 5V ~ 240V AC/DC |
| Switching Current | 2.5 ~ 100 mA | 200 mA Max. | 100 mA Max. |
| Contact Rating | 2.8W Max. | 6.0W Max. | 10W Max. |
| Current Consumption | 3 mA Max. @ 24V | 5 mA Max. | None |
| Voltage Drop | 3.5V Max. | 0.7V Max. | 2.5V Max. (@100mA DC) |
| Leakage Current | 0.06 mA Max. | 0.01 mA Max. | None |
| Frequency | 1000 Hz | 1000 Hz | 200 Hz |
| Protection | Polarity Reverse / Surge | Polarity Reverse / Surge | None |
| Temperature | -10°C ~ 70°C | -10°C ~ 70°C (High Temp: 125°C) | |
Mounting Accessories (Brackets)
| Bracket Model | Description | Applicable Cylinders |
|---|---|---|

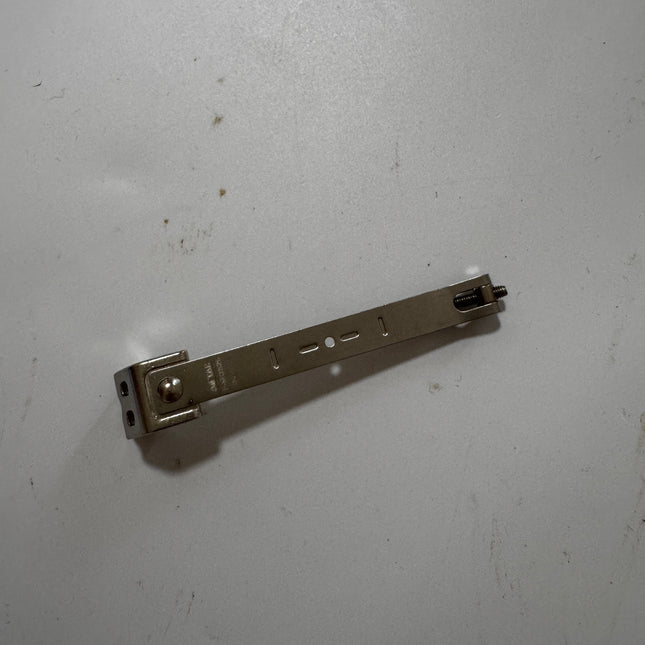

| F-MQ | For Round Body & Tie-Rod Cylinders. Aluminum alloy or Stainless steel options. |
Round: MI, PB, MA, MAL (Bore 16-63) Tie-Rod: SC, SU, SGC, TWG (Bore 32-100) |

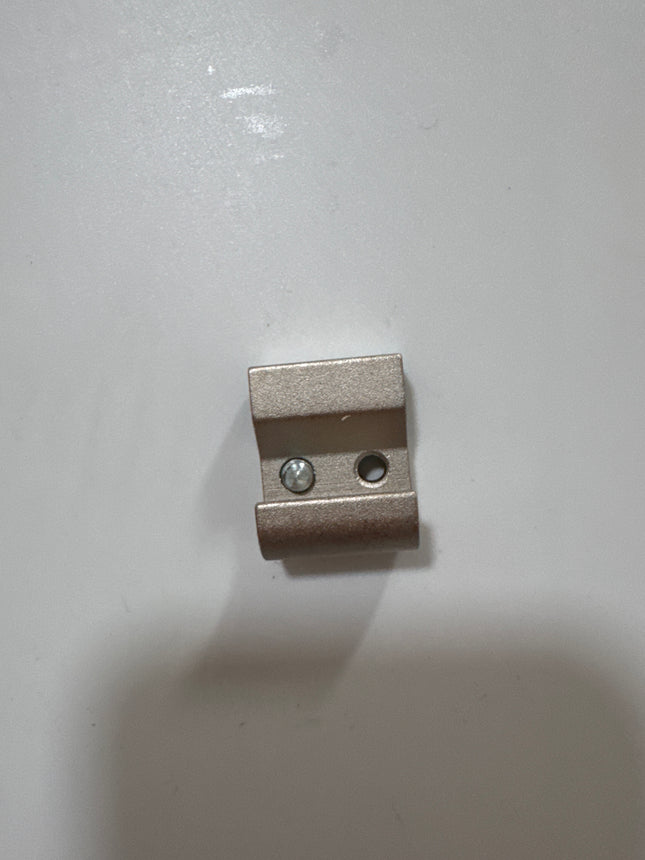

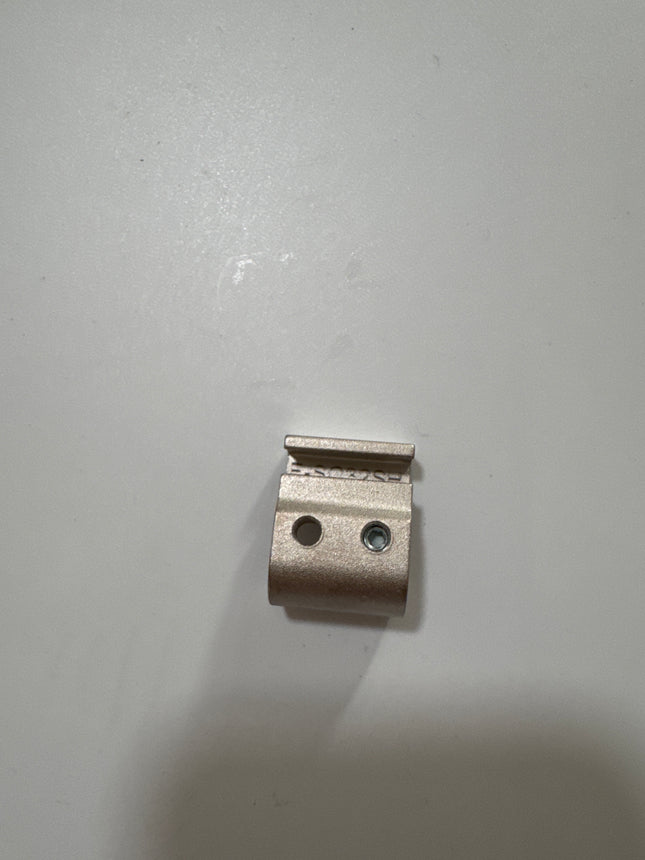

| F-SC | For Tie-Rod Cylinders. Aluminum alloy. | SC, SGC (Bore 32-250) |
Female Connectors (F-EC Series)

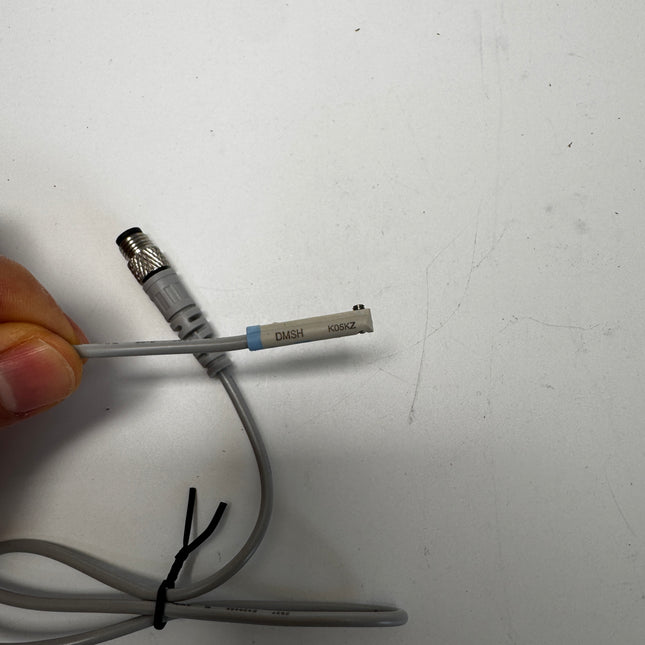

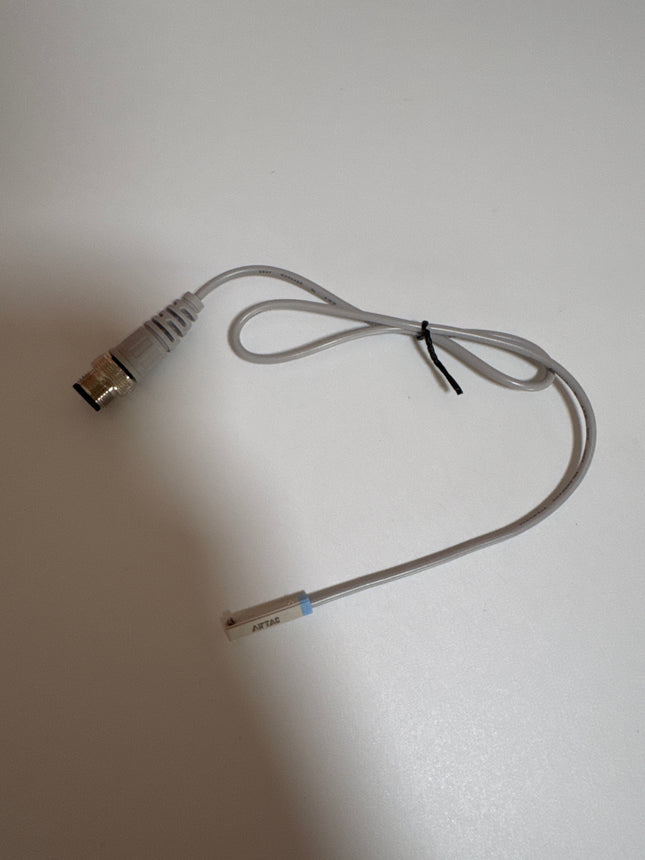

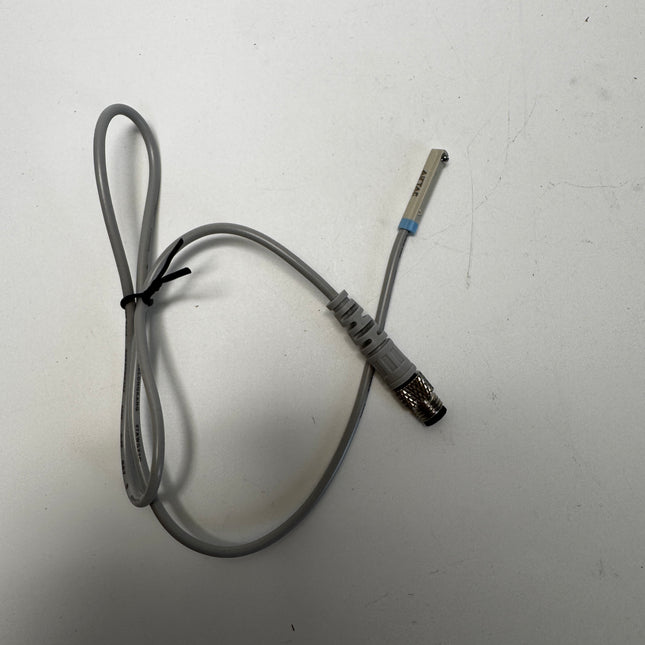

Used for connecting sensors with M8 or M12 plugs.
| Type | M8 Connector | M12 Connector |
|---|---|---|
| Pin Configuration | 3-Pin (Threaded) | 4-Pin (Threaded) |
| Wire Colors | Brown (+), Blue (-), Black (Output) | Brown (+), Blue (-), Black (Output) |
| Available Shapes | Straight Type / Right Angle Type | |
Sensor Ordering Code
DMS G - N - 020
| Item | Options |
|---|---|
| ① Industry |
Blank: General A05: Mechanical Hand (High Flex) A06: Oil Resistant |
| ② Series |
DMS: Solid State (Standard) EMS: Solid State (High Mounting) CMS: Reed Switch |
| ③ Shape |
G: Groove Type (Standard) H: Round Profile E: Compact Profile J: Vertical Wire Exit |
| ④ Output |
Blank: 2-Wire (DMS/EMS/CMS) N: NPN 3-Wire (DMS only) P: PNP 3-Wire (DMS only) |
| ⑤ Length | 020: 2m | 030: 3m | 050: 5m | 100: 10m |
| ⑥ Connector |
Blank: Flying Leads M08/M12: With Connector (See connector options in catalog) |
| ⑦ Feature |
Blank: Standard IP64 W: Waterproof IP68 H: High Temp (CMS only) |
Accessory Ordering Code
F - MQ - 32
| Item | Description |
|---|---|
| Category | F: Accessory |
| Type |
MQ: Multi-purpose Bracket SC: Tie-rod Bracket EC: Electrical Connector Cable |
| Spec |
[Bore Size]: e.g., 32, 40, 50 (for Brackets) [M08/M12]: Connector Type (for EC cables) |
