Overview of SC Series Products
Product Type
-

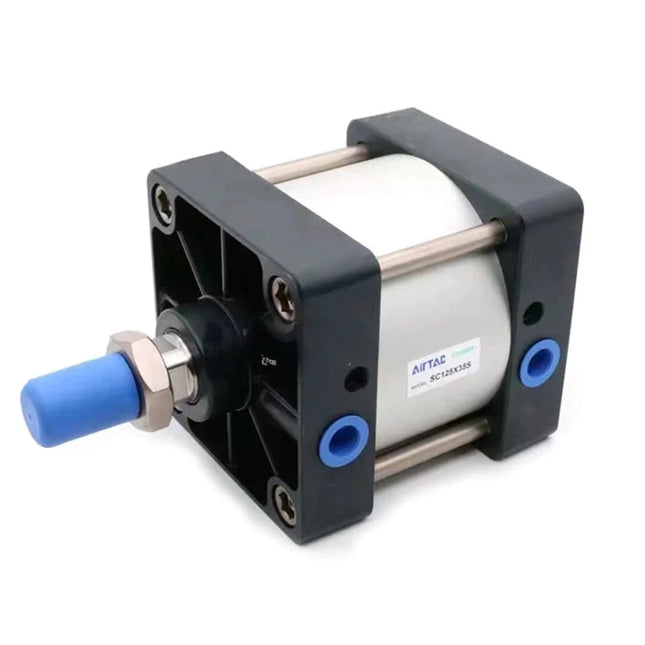

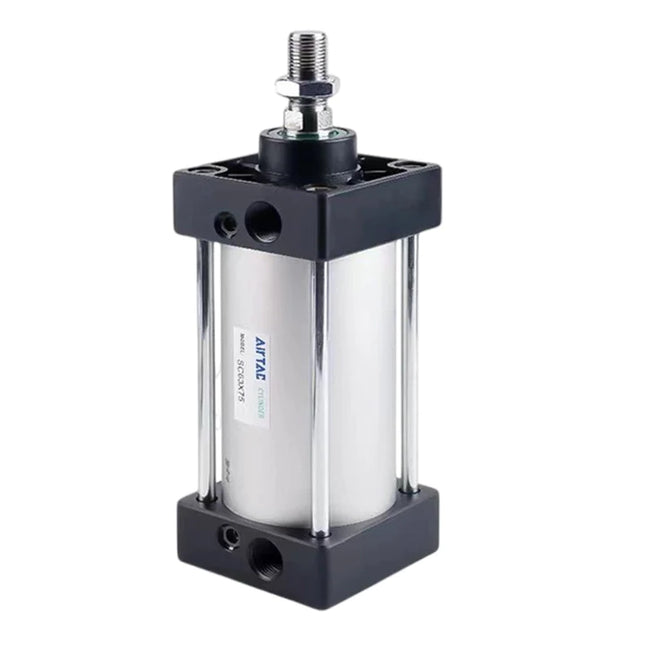

Standard Pneumatic Cylinder
• Bore sizes: 32, 40, 50, 63, 80, 100, 125, 160, 200, 250mm
Structural Features
-
Tie-rod Construction
• End caps are connected to the cylinder tube with tie rods for high reliability -
Adjustable Air Cushion on Both Ends
• Cushioning performance can be adjusted based on the load -
Easy and Flexible Sensor Installation
• Sensors can be mounted on the four tie rods
• Compatible sensor models: CMSG, DMSG, EMSG
Various Rod-End Accessories
- • Threaded Rod End
- • Y Joint
- • Floating Joint
- • Rod Eye
Multiple Cylinder Types
- • SC: Double Acting
- • SCD: Double Shaft Double Acting
- • SCJ: Adjustable Stroke Double Shaft Double Acting
- • SCLB: Rear Lock Type
- • SCLF: Front Lock Type
- • SCF: With Valve
- • SCM: Multi-position Double Acting
- • BSC: Clamping Type
Various Mounting Accessories
- • LB, FA, FB, CA, CB, TC, TCM1
Installation and Usage
- When the load varies during operation, select a cylinder with sufficient output force.
- For high temperature or corrosive environments, use cylinders designed for high temperature or corrosion resistance.
- In conditions with high humidity, heavy dust, water drops, oil stains, or welding spatter, appropriate protective measures must be taken.
- Before connecting the cylinder to the pipeline, thoroughly clean the pipeline to prevent contaminants from entering the cylinder.
- The working medium must be filtered through a filter element of 40 μm or finer before use.
- In low-temperature environments, antifreeze measures should be taken to prevent moisture in the system from freezing.
- Before operation, perform a trial run driven by compressed air. Set the air cushion to the minimum and then gradually adjust to avoid excessive impact damage.
- During operation, avoid lateral loads on the cylinder to ensure proper function and extend service life.
- If the cylinder will not be used for an extended period, apply anti-rust treatment to the surface and use dust caps on the air ports.
Theoretical Output Force Table
| Bore Size (mm) | Rod Diameter (mm) | Action Type | Effective Area (mm²) | 0.1 MPa | 0.2 MPa | 0.3 MPa | 0.4 MPa | 0.5 MPa | 0.6 MPa | 0.7 MPa | 0.8 MPa | 0.9 MPa |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 32 | 12 | Double Acting Push | 804 | 80.4 | 160.8 | 241.2 | 321.6 | 402 | 482.4 | 562.8 | 643.2 | 723.6 |
| 32 | 12 | Double Acting Pull | 690 | 69 | 138 | 207 | 276 | 345 | 414 | 483 | 552 | 621 |
| 40 | 16 | Double Acting Push | 1256 | 125.6 | 251.2 | 376.8 | 502.4 | 628 | 753.6 | 879.2 | 1004.8 | 1130.4 |
| 40 | 16 | Double Acting Pull | 1055 | 105.5 | 211 | 316.5 | 422 | 527.5 | 633 | 738.5 | 844 | 949.5 |
| 50 | 20 | Double Acting Push | 1963 | 196.3 | 392.6 | 588.9 | 785.2 | 981.5 | 1177.8 | 1374.1 | 1570.4 | 1766.7 |
| 50 | 20 | Double Acting Pull | 1649 | 164.9 | 329.8 | 494.7 | 659.6 | 824.5 | 989.4 | 1154.3 | 1399.2 | 1484.1 |
| 63 | 20 | Double Acting Push | 3117 | 311.7 | 623.4 | 935.1 | 1246.8 | 1558.5 | 1870.2 | 2181.9 | 2493.6 | 2805.3 |
| 63 | 20 | Double Acting Pull | 2803 | 280.3 | 560.6 | 840.9 | 1121.2 | 1401.5 | 1681.8 | 1962.1 | 2242.4 | 2522.7 |
| 80 | 25 | Double Acting Push | 5026 | 502.6 | 1005.2 | 1507.8 | 2010.4 | 2513 | 3015.6 | 3518.2 | 4020.8 | 4523.4 |
| 80 | 25 | Double Acting Pull | 4536 | 453.6 | 907.2 | 1360.8 | 1814.4 | 2268 | 2721.6 | 3175.2 | 3628.8 | 4082.4 |
| 100 | 32 | Double Acting Push | 7853 | 785.3 | 1570.6 | 2355.9 | 3141.2 | 3926.5 | 4711.8 | 5497.1 | 6282.4 | 7067.7 |
| 100 | 32 | Double Acting Pull | 7362 | 736.2 | 1472.4 | 2208.6 | 2944.8 | 3681 | 4417.2 | 5153.4 | 5889.6 | 6625.8 |
| 125 | 32 | Double Acting Push | 12272 | 1227.2 | 2454.4 | 3681.6 | 4908.8 | 6136 | 7363.2 | 8590.4 | 9817.6 | 11044.8 |
| 125 | 32 | Double Acting Pull | 11468 | 1146.8 | 2293.6 | 3440.4 | 4587.2 | 5734 | 6880.8 | 8027.6 | 9174.4 | 10321.2 |
| 160 | 40 | Double Acting Push | 20106 | 2010.6 | 4021.2 | 6031.8 | 8042.4 | 10053 | 12063.6 | 14074.2 | 16084.8 | 18095.4 |
| 160 | 40 | Double Acting Pull | 18849 | 1884.9 | 3769.8 | 5654.7 | 7539.6 | 9424.5 | 11309.4 | 13194.3 | 15079.2 | 16964.1 |
| 200 | 40 | Double Acting Push | 31416 | 3141.6 | 6283.2 | 9424.8 | 12566.4 | 15708 | 18849.6 | 21991.2 | 25132.8 | 28274.4 |
| 200 | 40 | Double Acting Pull | 30157 | 3015.7 | 6031.4 | 9047.1 | 12062.8 | 15078.5 | 18094.2 | 21109.9 | 24125.6 | 27141.3 |
| 250 | 50 | Double Acting Push | 49087 | 4908.7 | 9817.4 | 14726.1 | 19634.8 | 24543.5 | 29452.2 | 34360.9 | 39269.6 | 44178.3 |
| 250 | 50 | Double Acting Pull | 47124 | 4712.4 | 9424.8 | 14137.2 | 18849.6 | 23562 | 28274.4 | 32986.8 | 37699.2 | 42411.6 |
Product Features
- 1. Standard pneumatic cylinder by our company.
- 2. Piston seal adopts a special bi-directional seal structure, compact in size with oil storage function.
- 3. Tie-rod type cylinder; end caps are connected to the aluminum tube body via pillars for high reliability.
- 4. Compared to ISO15552 standard cylinders, SC series cylinders are shorter in length for the same bore size.
- 5. Smooth and adjustable air cushioning.
- 6. A variety of cylinder specifications and mounting accessories available for selection.
- 7. High-temperature sealing materials available, allowing operation under conditions up to 150°C.
Specifications Table
| Item | 32 | 40 | 50 | 63 | 80 | 100 |
|---|---|---|---|---|---|---|
| Acting Type | Double Acting | Double Acting | Double Acting | Double Acting | Double Acting | Double Acting |
| Working Medium | Air (filtered through 40 μm or finer filter) | |||||
| Mounting Type (SC) | Basic Type FA | FB CA | CB | LB | TC | TCM1 |
| Mounting Type (SCD, SCJ) | Basic Type | FA | LB | TC | TCM1 | |
| Operating Pressure Range | 0.15~1.0 MPa (22~145 psi) (1.5~10.0 bar) | |||||
| Max. Proof Pressure | 1.5 MPa (215 psi) (15 bar) | |||||
| Operating Temperature (°C) | -20~70 | |||||
| Operating Speed Range (mm/s) | 30~800 | 30~800 | 30~800 | 30~800 | 30~800 | 30~800 |
| Stroke Tolerance (mm) | 0~250: ±1.0 | 0~250: ±1.0 | 0~250: ±1.0 | 251~1000: ±1.5 | 1001~1500: ±2.0 | 1001~1500: ±2.0 |
| Cushion Type | Adjustable Cushion | |||||
| Cushion Stroke (mm) | 21 | 21 | 26 | 28 | 29 | |
| Port Size | PT1/8 | PT1/4 | PT3/8 | PT1/2 | ||
Stroke Table
| Bore Size (mm) | Standard Stroke (mm) | Max. Stroke (mm) | Allowable Stroke (mm) |
|---|---|---|---|
| 32 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500 | 1000 | 2000 |
| 40 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1200 | 2000 |
| 50 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1200 | 2000 |
| 63 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1500 | 2000 |
| 80 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1500 | 2000 |
| 100 | 25, 50, 75, 80, 100, 125, 150, 160, 175, 200, 250, 300, 350, 400, 450, 500, 600, 700, 800, 900, 1000 | 1500 | 2000 |
Order Code Structure
Ordering Code
| No. | Item | Available Options | Description |
|---|---|---|---|
| 1 | Model Code | SC: Standard Double Acting SCD: Double Shaft Double Acting SCJ: Adjustable Stroke Double Shaft Double Acting |
Indicates cylinder functional type |
| 2 | Bore Size | 32, 40, 50, 63, 80, 100, 125, 160, 200, 250 | Indicates the bore size of the cylinder |
| 3 | Stroke | Refer to Stroke Table | Specify standard stroke length |
| 4 | Adjustable Stroke | Only for SCJ: 10, 20, 30, 40, 50, 75, 100 Not applicable for SC/SCD |
Additional adjustable stroke for SCJ model only |
| 5 | Magnet Code | Blank: Without magnet S: With magnet |
Whether equipped with a magnet for sensor detection |
| 6 | Mounting Style | Blank / LB / FA / FB / CA / CB / TC (TC used with TCM1) | Select proper mounting type |
| 7 | Seal Material | Blank: TPU H: FKM (Viton) N: NBR |
Select seal material based on working environment |
| 8 | Thread Type | Blank: PT Thread G: G Thread |
Select port thread type |
Example: SC-50×100-S-FA-H-G
Meaning: Standard double acting type, 50mm bore, 100mm stroke, with magnet, FA mounting, FKM seals, G-thread port
