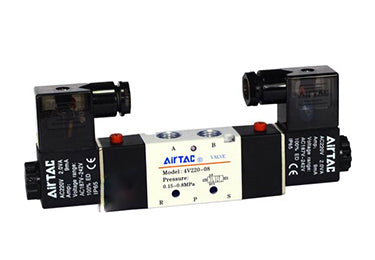

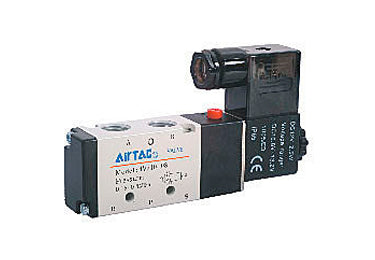

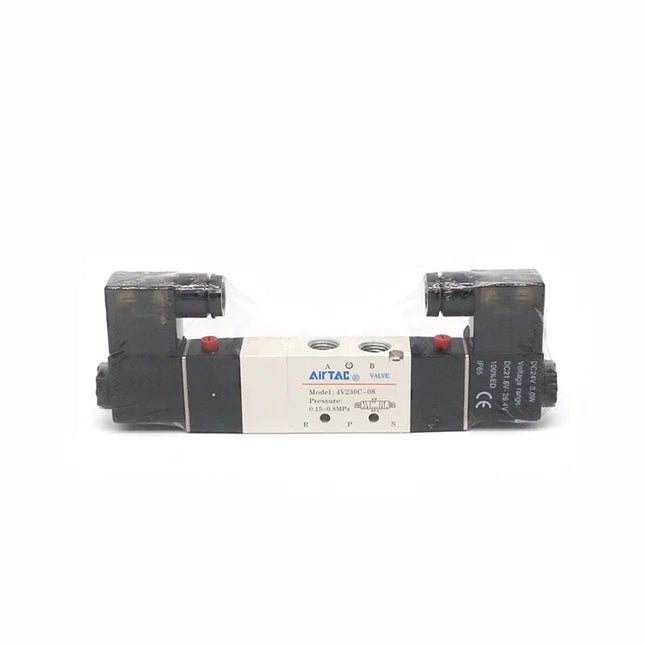

Product Features
- Guide types available: internal guide or external guide;
- Sliding column structure with good sealing performance and quick response;
- Three-position solenoid valve offers three types of central functions for selection;
- Double-head two-position solenoid valve features memory function;
- Inner hole is processed with special techniques for low friction resistance, low starting air pressure, and extended service life;
- No need for lubrication;
- Compatible with integrated valve manifold to save installation space;
- Equipped with manual device for easy installation and adjustment;
- Available in various standard voltage levels.
Specifications
| Model | 4V210-06 4V220-06 |
4V230C-06 4V230E-06 4V230P-06 |
4V210-08 4V220-08 |
4V230C-08 4V230E-08 4V230P-08 |
|---|---|---|---|---|
| Working Medium | Filtered air (40 μm or finer) | |||
| Actuation Type | Internal or external pilot type | |||
| Port Size | Inlet/Outlet = PT1/8 Exhaust = PT1/8 |
Inlet/Outlet = PT1/4 Exhaust = PT1/8 |
Inlet/Outlet = PT1/4 Exhaust = PT1/8 |
Inlet/Outlet = PT1/4 Exhaust = PT1/8 |
| Effective Area (Cv) | 17.0mm² (Cv=1.0) | 13.6mm² (Cv=0.8) | 17.0mm² (Cv=1.0) | 13.6mm² (Cv=0.8) |
| Position & Ports | 5/2 way | 5/3 way | 5/2 way | 5/3 way |
| Operating Pressure Range | 0.15–0.8MPa (21–114 psi) | |||
| Max Pressure Resistance | 1.2 MPa (175 psi) | |||
| Operating Temperature | –20 to 70°C | |||
| Body Material | Aluminum alloy | |||
| Lubrication | Not required | |||
| Max. Actuation Frequency | 5 cycles/sec | 3 cycles/sec | 5 cycles/sec | 3 cycles/sec |
| Weight (g) | 220g | 360g | 220g | 360g |
Electrical Specifications
| Item | Specific Parameters |
|---|---|
| Rated Voltage | AC220V, AC110V, AC24V, DC24V, DC12V |
| Voltage Tolerance Range | AC: ±15%, DC: ±10% |
| Power Consumption | AC220V/AC110V: 4.5VA, AC24V: 5.0VA, DC24V: 3.0W, DC12V: 2.5W |
| Protection Level | IP65 (DIN40050) |
| Insulation Class | Class B |
| Wiring Type | DIN connector type, lead wire type |
| Excitation Time | ≤ 0.05 seconds |
Product Ordering Code
Example: 4V210-08A□□-W
| No. | Code | Description |
|---|---|---|
| ① | 4V | 5-port 2-position / 5-port 3-position solenoid valve |
| ② | 2 | 200 Series |
| ③ | 10 20 30C 30E 30P |
10: Double position, single solenoid 20: Double position, double solenoid 30C: 3-position, closed center 30E: 3-position, exhaust center 30P: 3-position, pressure center |
| ④ | 06 08 |
06: 1/8” port 08: 1/4” port |
| ⑤ | A B C E F |
A: AC220V B: DC24V C: AC110V E: AC24V F: DC12V |
| ⑥ | (blank) I |
(blank): DIN connector I: Lead wire type *Lead wire length: 0.5m |
| ⑦ | (blank) G T |
(blank): PT thread G: G thread T: NPT thread |
| ⑧ | (blank) -W |
(blank): Internal pilot W: External pilot |
Note: For base specifications and ordering methods, please refer to page P82. For lead wire type, the standard cable length is 0.5m.
